Tutorial 4: Sky Localisation & Fisher-Matrix Analysis with GWFish#
This notebook extends Tutorial 3 (SNR-only detection efficiency) by running the
full Fisher-matrix analysis via compute_network_errors. In addition to the
network SNR we obtain:
Parameter estimation errors (masses, distance, inclination, …)
90 % credible sky-localisation area \(\Delta\Omega\)
We loop over several detector-network configurations and compare detection rates and sky-localisation distributions.
Import Libraries#
%load_ext autoreload
%autoreload 2
import notebook_setup
import os
os.environ["OMP_NUM_THREADS"] = "1" # avoid thread over-subscription
os.environ["MKL_NUM_THREADS"] = "1"
import multiprocessing as mp
cpus = mp.cpu_count()
import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import GWFish.modules as gw
from GWFish.modules.fishermatrix import compute_network_errors, sky_localization_percentile_factor
from joblib import Parallel, delayed
from astropy.cosmology import Planck18
from pathlib import Path
#plt.style.use('../configurations/style.mplstyle')
datafiles = Path("../datafiles")
output_dir = Path("Output_files/tutorial4_gwfish_skyloc")
output_dir.mkdir(parents=True, exist_ok=True)
1. Load the GRB Catalogue#
Same catalogue produced in Tutorial 2 (structured-jet model).
cat_path = Path("Output_files/tutorial2_structured/simulated_catalogue.csv")
grb_cat = pd.read_csv(cat_path)
print(f"Loaded catalogue with {len(grb_cat)} events")
print(f"Columns: {list(grb_cat.columns)}")
grb_cat.head()
Loaded catalogue with 782 events
Columns: ['z', 'theta_v', 'Ep_obs', 'Fp', 'T90']
| z | theta_v | Ep_obs | Fp | T90 | |
|---|---|---|---|---|---|
| 0 | 2.091161 | 4.034316 | 539.577283 | 1.342413 | 1.339580 |
| 1 | 2.567734 | 2.755381 | 623.810608 | 1.255080 | 0.634885 |
| 2 | 0.447737 | 4.679574 | 613.461947 | 4.963945 | 0.531015 |
| 3 | 2.095981 | 1.383154 | 245.601566 | 4.833812 | 0.363726 |
| 4 | 0.424608 | 4.495323 | 300.241420 | 4.443847 | 0.554568 |
2. Generate BNS Parameters#
Same procedure as Tutorial 3: Gaussian masses, randomised extrinsic parameters.
Here we use source-frame masses (mass_1_source / mass_2_source); GWFish
internally converts to detector-frame.
np.random.seed(42) # reproducibility
n_ev = len(grb_cat)
redshift = grb_cat["z"].values
theta_jn = np.deg2rad(grb_cat["theta_v"].values)
# BNS masses — Gaussian (Galactic DNS population)
m1, m2 = np.random.normal(1.33, 0.09, (n_ev, 2)).T
mass_1 = np.maximum(m1, m2)
mass_2 = np.minimum(m1, m2)
params_dict = {
"mass_1_source" : mass_1,
"mass_2_source" : mass_2,
"redshift" : redshift,
"luminosity_distance" : Planck18.luminosity_distance(redshift).value,
"theta_jn" : theta_jn,
"ra" : np.random.uniform(0.0, 2 * np.pi, n_ev),
"dec" : np.arcsin(np.random.uniform(-1.0, 1.0, n_ev)),
"psi" : np.random.uniform(0.0, np.pi, n_ev),
"phase" : np.random.uniform(0.0, 2 * np.pi, n_ev),
"geocent_time" : np.random.uniform(1577491218, 1609027217, n_ev),
"a_1" : np.zeros(n_ev),
"a_2" : np.zeros(n_ev),
}
df_params = pd.DataFrame(params_dict)
df_params.to_csv(output_dir / "bns_params.csv", index=False)
print(f"Generated {n_ev} BNS parameter sets")
print(f" <m1> = {mass_1.mean():.3f} Msun, <m2> = {mass_2.mean():.3f} Msun")
print(f" z ∈ [{redshift.min():.3f}, {redshift.max():.3f}]")
df_params.head()
Generated 782 BNS parameter sets
<m1> = 1.385 Msun, <m2> = 1.283 Msun
z ∈ [0.056, 5.052]
| mass_1_source | mass_2_source | redshift | luminosity_distance | theta_jn | ra | dec | psi | phase | geocent_time | a_1 | a_2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1.374704 | 1.317556 | 2.091161 | 16813.967216 | 0.070412 | 2.182422 | 1.295540 | 1.517957 | 4.798420 | 1.590308e+09 | 0.0 | 0.0 |
| 1 | 1.467073 | 1.388292 | 2.567734 | 21570.794581 | 0.048090 | 5.653820 | -0.668468 | 2.633379 | 3.288628 | 1.605238e+09 | 0.0 | 0.0 |
| 2 | 1.308928 | 1.308926 | 0.447737 | 2559.632940 | 0.081674 | 0.137120 | 0.625115 | 1.135383 | 1.424854 | 1.597948e+09 | 0.0 | 0.0 |
| 3 | 1.472129 | 1.399069 | 2.095981 | 16861.187716 | 0.024141 | 4.170714 | 0.954107 | 2.701125 | 4.187881 | 1.605850e+09 | 0.0 | 0.0 |
| 4 | 1.378830 | 1.287747 | 0.424608 | 2403.707853 | 0.078458 | 6.053186 | 1.091681 | 1.278015 | 0.503319 | 1.597154e+09 | 0.0 | 0.0 |
3. Resolve Detector Configuration#
We use the same portable YAML approach from Tutorial 3: bare PSD filenames in
configs/coba.yaml are resolved to absolute paths under psds/ at runtime.
import re, tempfile
yaml_template = Path("configs/coba.yaml")
psd_dir = Path("psds").resolve()
def resolve_psd_paths(yaml_path, psd_dir):
"""Resolve bare psd_data filenames in a GWFish YAML to absolute paths."""
text = yaml_path.read_text()
def _resolve(m):
fname = m.group(1).strip()
if fname.startswith("/"):
return m.group(0)
resolved = (psd_dir / fname).resolve()
if not resolved.exists():
raise FileNotFoundError(
f"PSD file not found: {resolved} (referenced in {yaml_path})"
)
return f"psd_data:{m.group(0).split('psd_data:')[1].replace(fname, str(resolved))}"
resolved_text = re.sub(r"psd_data:\s*(.+)", _resolve, text)
tmp = tempfile.NamedTemporaryFile(
mode="w", suffix=".yaml", prefix="gwfish_conf_", delete=False
)
tmp.write(resolved_text)
tmp.flush()
return Path(tmp.name)
conf_file = resolve_psd_paths(yaml_template, psd_dir)
print(f"Resolved config written to: {conf_file}")
Resolved config written to: /tmp/gwfish_conf_knne_sm2.yaml
4. Define Detector Combinations#
We test several network configurations — from current-generation (2G) detectors to full 3G networks with Cosmic Explorer.
combinations = {
"3G_2L" : ["ETS_15", "ETN_15"],
"3G_delta" : ["ET"]
}
waveform_model = "IMRPhenomD_NRTidalv2"
SNR_THRESHOLD = 8.0

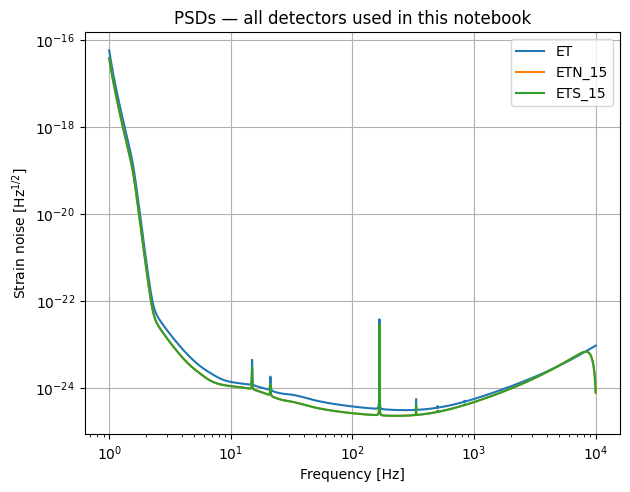

# Quick PSD sanity check — plot all unique detectors
all_det_names = sorted({d for dets in combinations.values() for d in dets})
all_network = gw.detection.Network(detector_ids=all_det_names, config=conf_file)
for det in all_network.detectors:
det.components[0].plot_psd()
plt.legend(all_det_names)
plt.title("PSDs — all detectors used in this notebook")
plt.savefig(output_dir / "all_PSDs.pdf")
plt.show()
print(f"Combinations to analyse: {list(combinations.keys())}")
Combinations to analyse: ['3G_2L', '3G_delta']
5. Run Fisher-Matrix Analysis (All Combinations)#
For each detector network we run compute_network_errors in parallel using
functools.partial + pool.map. This returns:
SNR per detector + network
Parameter errors from the Fisher matrix
Sky-localisation area (converted to deg² at 90 % credibility)
results_all = {}
my_pop_split = np.array_split(df_params, cpus)
for combo_name, det_names in combinations.items():
print(f"\n{'='*60}")
print(f" {combo_name} → {det_names}")
print(f"{'='*60}")
network = gw.detection.Network(
detector_ids = det_names,
config = conf_file,
detection_SNR = (0, SNR_THRESHOLD),
)
# ---- joblib parallelisation (much faster than mp.Pool for GWFish) ----
def run_fisher(chunk_df):
return compute_network_errors(
network = network,
parameter_values = chunk_df,
waveform_model = waveform_model,
)
chunks = Parallel(n_jobs=cpus, verbose=10)(
delayed(run_fisher)(chunk) for chunk in my_pop_split
)
# Unpack: each chunk returns (detected, snr, errors, sky_loc)
_, snr_chunks, errors_chunks, skyloc_chunks = zip(*chunks)
# compute_network_errors returns 1D SNR (network SNR per event)
snr_array = np.concatenate(snr_chunks)
errors_array = np.concatenate(errors_chunks)
skyloc_raw = (np.concatenate(skyloc_chunks)
if skyloc_chunks[0] is not None else None)
# Convert sky localisation to 90 % credible area in deg²
skyloc_deg2 = (skyloc_raw * sky_localization_percentile_factor()
if skyloc_raw is not None else None)
network_snr = snr_array
detected = network_snr >= SNR_THRESHOLD
n_det = int(detected.sum())
print(f" Detected {n_det} / {len(network_snr)} "
f"({n_det / len(network_snr) * 100:.1f} %)")
results_all[combo_name] = {
"det_names" : det_names,
"snr" : snr_array,
"errors" : errors_array,
"skyloc_deg2": skyloc_deg2,
"detected" : detected,
}
============================================================
3G_2L → ['ETS_15', 'ETN_15']
============================================================
[Parallel(n_jobs=8)]: Using backend LokyBackend with 8 concurrent workers.
100%|██████████| 98/98 [01:21<00:00, 1.20it/s]
100%|██████████| 98/98 [01:21<00:00, 1.20it/s][Parallel(n_jobs=8)]: Done 2 out of 8 | elapsed: 1.4min remaining: 4.3min
100%|██████████| 98/98 [01:22<00:00, 1.19it/s]
[Parallel(n_jobs=8)]: Done 3 out of 8 | elapsed: 1.4min remaining: 2.4min
100%|██████████| 98/98 [01:23<00:00, 1.18it/s]
[Parallel(n_jobs=8)]: Done 4 out of 8 | elapsed: 1.5min remaining: 1.5min
100%|██████████| 97/97 [01:23<00:00, 1.16it/s]
[Parallel(n_jobs=8)]: Done 5 out of 8 | elapsed: 1.5min remaining: 52.8s
100%|██████████| 97/97 [01:23<00:00, 1.16it/s]
[Parallel(n_jobs=8)]: Done 6 out of 8 | elapsed: 1.5min remaining: 29.3s
100%|██████████| 98/98 [01:24<00:00, 1.16it/s]
100%|██████████| 98/98 [01:24<00:00, 1.16it/s]
[Parallel(n_jobs=8)]: Done 8 out of 8 | elapsed: 1.5min finished
[Parallel(n_jobs=8)]: Using backend LokyBackend with 8 concurrent workers.
0%| | 0/97 [00:00<?, ?it/s]
Detected 557 / 782 (71.2 %)
============================================================
3G_delta → ['ET']
============================================================
100%|██████████| 98/98 [00:50<00:00, 1.95it/s]
100%|██████████| 98/98 [00:50<00:00, 1.93it/s]
[Parallel(n_jobs=8)]: Done 2 out of 8 | elapsed: 50.7s remaining: 2.5min
100%|██████████| 98/98 [00:50<00:00, 1.93it/s]
[Parallel(n_jobs=8)]: Done 3 out of 8 | elapsed: 50.9s remaining: 1.4min
100%|██████████| 98/98 [00:51<00:00, 1.91it/s]
[Parallel(n_jobs=8)]: Done 4 out of 8 | elapsed: 51.3s remaining: 51.3s
100%|██████████| 97/97 [00:52<00:00, 1.86it/s]
[Parallel(n_jobs=8)]: Done 5 out of 8 | elapsed: 52.1s remaining: 31.2s
100%|██████████| 98/98 [00:52<00:00, 1.88it/s]
[Parallel(n_jobs=8)]: Done 6 out of 8 | elapsed: 52.2s remaining: 17.4s
Detected 397 / 782 (50.8 %)
100%|██████████| 97/97 [00:52<00:00, 1.86it/s]
100%|██████████| 98/98 [00:52<00:00, 1.87it/s]
[Parallel(n_jobs=8)]: Done 8 out of 8 | elapsed: 52.4s finished
6. Detection Rate Summary#
print(f"{'Combination':<25s} {'Detected':>8s} {'Total':>6s} {'Rate':>7s} {'±σ':>7s}")
print("-" * 60)
for combo_name, res in results_all.items():
n_tot = len(res["detected"])
n_det = int(res["detected"].sum())
rate = n_det / n_tot
err = np.sqrt(n_det) / n_tot
print(f"{combo_name:<25s} {n_det:>8d} {n_tot:>6d} {rate:>7.3f} {err:>7.3f}")
Combination Detected Total Rate ±σ
------------------------------------------------------------
3G_2L 557 782 0.712 0.030
3G_delta 397 782 0.508 0.025

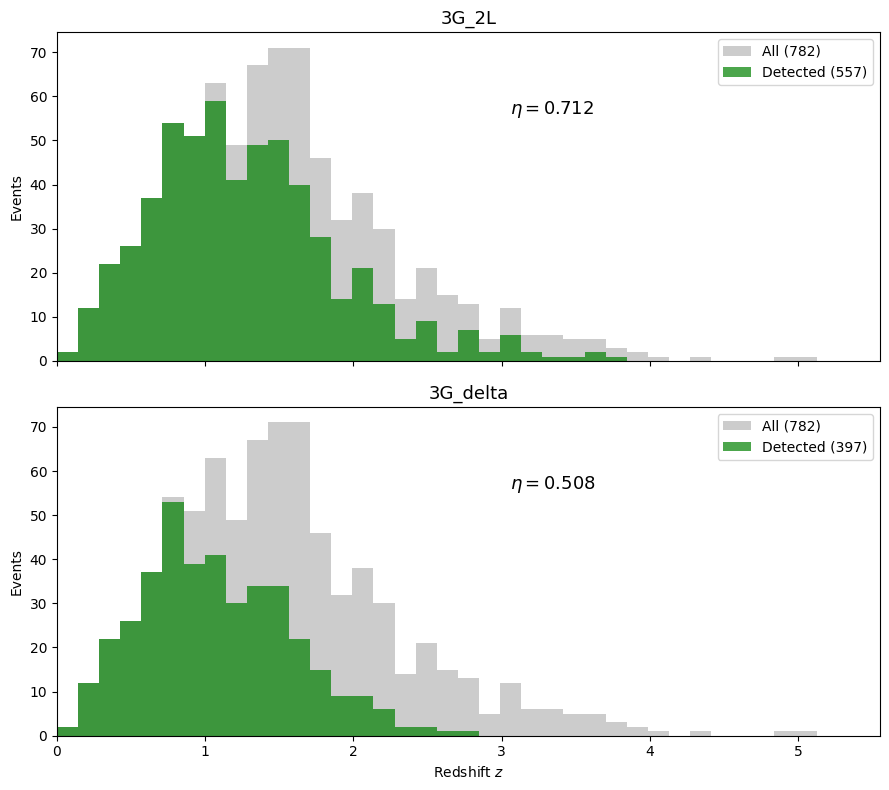

7. Redshift Distribution — Detected vs All#
n_combos = len(combinations)
fig, axes = plt.subplots(n_combos, 1, figsize=(9, 4 * n_combos), sharex=True)
if n_combos == 1:
axes = [axes]
bins = np.linspace(0, redshift.max() + 0.5, 40)
for ax, (combo_name, res) in zip(axes, results_all.items()):
det_mask = res["detected"]
n_tot = len(det_mask)
n_det = int(det_mask.sum())
ax.hist(redshift, bins=bins, color="gray", alpha=0.4,
label=f"All ({n_tot})")
ax.hist(redshift[det_mask], bins=bins, color="green", alpha=0.7,
label=f"Detected ({n_det})")
rate = n_det / n_tot
ax.text(0.55, 0.75,
f"$\\eta = {rate:.3f}$",
transform=ax.transAxes, fontsize=13)
ax.set_ylabel("Events")
ax.set_title(combo_name, fontsize=13)
ax.legend(fontsize=10)
ax.set_xlim(0, redshift.max() + 0.5)
axes[-1].set_xlabel("Redshift $z$")
fig.tight_layout()
fig.savefig(output_dir / "redshift_detected_all_combos.pdf", dpi=200, bbox_inches="tight")
plt.show()

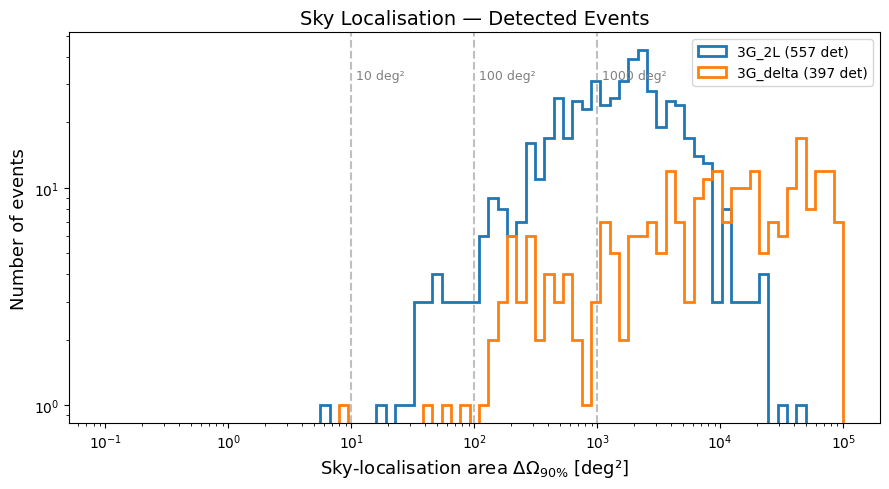

8. Sky-Localisation Distribution#
We compare the 90 % credible sky-localisation area for detected events across different networks. Vertical lines mark common thresholds (10, 100, 1000 deg²).
fig, ax = plt.subplots(figsize=(9, 5))
skyloc_bins = np.logspace(-1, 5, 80)
for combo_name, res in results_all.items():
if res["skyloc_deg2"] is None:
continue
det_mask = res["detected"]
skyloc_ok = res["skyloc_deg2"][det_mask]
# filter out NaN / inf
skyloc_ok = skyloc_ok[np.isfinite(skyloc_ok) & (skyloc_ok > 0)]
ax.hist(skyloc_ok, bins=skyloc_bins, histtype="step", linewidth=2,
label=f"{combo_name} ({len(skyloc_ok)} det)")
for threshold in [10, 100, 1000]:
ax.axvline(threshold, ls="--", color="gray", alpha=0.5)
ax.text(threshold * 1.1, ax.get_ylim()[1] * 0.7,
f"{threshold} deg²", fontsize=9, color="gray")
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel("Sky-localisation area $\\Delta\\Omega_{90\\%}$ [deg²]", fontsize=13)
ax.set_ylabel("Number of events", fontsize=13)
ax.set_title("Sky Localisation — Detected Events", fontsize=14)
ax.legend(fontsize=10)
fig.tight_layout()
fig.savefig(output_dir / "skyloc_distribution.pdf", dpi=200, bbox_inches="tight")
plt.show()

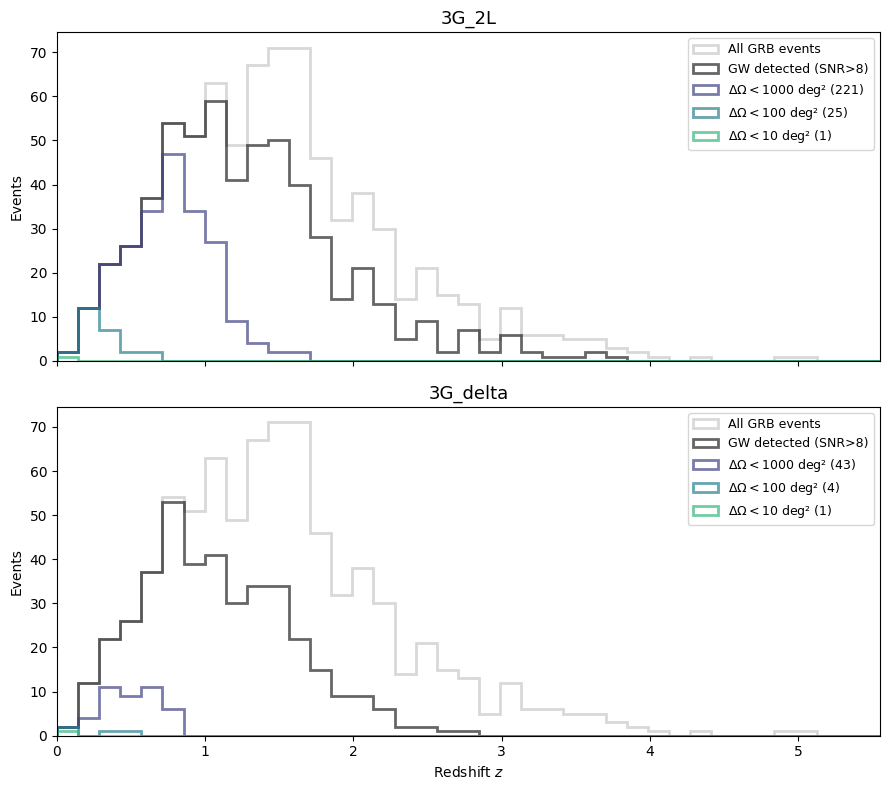

9. Redshift vs Sky Localisation — Threshold Cuts#
For each network we show how many events survive progressively tighter sky-localisation cuts.
skyloc_thresholds = [1000, 100, 10, 1]
colors = plt.cm.viridis(np.linspace(0.2, 0.9, len(skyloc_thresholds)))
n_combos = len(combinations)
fig, axes = plt.subplots(n_combos, 1, figsize=(9, 4 * n_combos), sharex=True)
if n_combos == 1:
axes = [axes]
bins = np.linspace(0, redshift.max() + 0.5, 40)
for ax, (combo_name, res) in zip(axes, results_all.items()):
det_mask = res["detected"]
skyloc = res["skyloc_deg2"]
ax.hist(redshift, bins=bins, color="gray", alpha=0.3,
label="All GRB events", histtype="step", linewidth=2)
ax.hist(redshift[det_mask], bins=bins, color="black", alpha=0.6,
label=f"GW detected (SNR>{SNR_THRESHOLD:.0f})", histtype="step", linewidth=2)
if skyloc is not None:
for thr, col in zip(skyloc_thresholds, colors):
cut = det_mask & np.isfinite(skyloc) & (skyloc <= thr)
n_cut = int(cut.sum())
if n_cut > 0:
ax.hist(redshift[cut], bins=bins, color=col, alpha=0.7,
label=f"$\\Delta\\Omega < {thr}$ deg² ({n_cut})",
histtype="step", linewidth=2)
ax.set_ylabel("Events")
ax.set_title(combo_name, fontsize=13)
ax.legend(fontsize=9, loc="upper right")
ax.set_xlim(0, redshift.max() + 0.5)
axes[-1].set_xlabel("Redshift $z$")
fig.tight_layout()
fig.savefig(output_dir / "redshift_skyloc_cuts.pdf", dpi=200, bbox_inches="tight")
plt.show()
10. Save Results#
Save the augmented catalogue for each detector combination.
for combo_name, res in results_all.items():
out_df = grb_cat.copy()
out_df["snr_network"] = res["snr"] # already 1D network SNR
out_df["detected"] = res["detected"]
if res["skyloc_deg2"] is not None:
out_df["skyloc_deg2"] = res["skyloc_deg2"]
safe_name = combo_name.replace(" ", "_").replace("+", "and")
out_path = output_dir / f"catalogue_{safe_name}.csv"
out_df.to_csv(out_path, index=False)
print(f"Saved: {out_path} ({int(res['detected'].sum())} detected)")
Saved: Output_files/tutorial4_gwfish_skyloc/catalogue_3G_2L.csv (557 detected)
Saved: Output_files/tutorial4_gwfish_skyloc/catalogue_3G_delta.csv (397 detected)
Summary#
What |
How |
|---|---|
Fisher matrix |
|
Sky localisation |
90 % credible area from the Fisher-matrix inverse, scaled by |
Networks tested |
3G 2L, 3G 2L + CE40, 3G 2L + CE20 + CE40, 3G Δ, 3G Δ + CE40 |
