Early Warning parameter estimation#
import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")
import GWFish.modules as gw
from tqdm import tqdm
import matplotlib
import matplotlib.pyplot as plt
import corner
import numpy as np
import pandas as pd
import json
import os
from astropy.cosmology import Planck18
parameters = {
'chirp_mass': np.array([1.1858999987203738]) * (1 + 0.00980),
'mass_ratio': np.array([0.8308538032620448]),
'luminosity_distance': Planck18.luminosity_distance(0.00980).value,
'theta_jn': np.array([2.545065595974997]),
'ra': np.array([3.4461599999999994]),
'dec': np.array([-0.4080839999999999]),
'psi': np.array([0.]),
'phase': np.array([0.]),
'geocent_time': np.array([1187008882.4]),
'a_1':np.array([0.005136138323169717]),
'a_2':np.array([0.003235146993487445]),
'lambda_1':np.array([368.17802383555687]),
'lambda_2':np.array([586.5487031450857])}
parameters = pd.DataFrame(parameters)
parameters
| chirp_mass | mass_ratio | luminosity_distance | theta_jn | ra | dec | psi | phase | geocent_time | a_1 | a_2 | lambda_1 | lambda_2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1.197522 | 0.830854 | 43.747554 | 2.545066 | 3.44616 | -0.408084 | 0.0 | 0.0 | 1.187009e+09 | 0.005136 | 0.003235 | 368.178024 | 586.548703 |
import numpy as np
import matplotlib.pyplot as plt
from astropy.time import Time
# ── Configuration ──────────────────────────────────────────────────
GPS_TRIGGER = 1187008882.4
ra_src_deg = 197.5
dec_src_deg = -23.4
ra_src = np.radians(ra_src_deg)
dec_src = np.radians(dec_src_deg)
# ra_src is in radians [0, 2π]. Mollweide expects [-π, π].
ra_plot = ra_src - 2*np.pi if ra_src > np.pi else ra_src
DETECTORS_ECEF = {
'LIGO Livingston (LLO)': {
'arm1': np.array([-0.95457412153, -0.14158077340, -0.26218911324]),
'arm2': np.array([ 0.29774156894, -0.48791033647, -0.82054461286]),
'cmap': 'Blues',
},
'LIGO Hanford (LHO)': {
'arm1': np.array([-0.22389266154, 0.79983062746, 0.55690487831]),
'arm2': np.array([-0.91397818574, 0.02609403989, -0.40492342125]),
'cmap': 'Reds',
},
'Virgo': {
'arm1': np.array([-0.70045821479, 0.20848948619, 0.68256166277]),
'arm2': np.array([-0.05379255368, -0.96908180549, 0.24080451708]),
'cmap': 'Greens',
},
}
# ── Functions ──────────────────────────────────────────────────────
def get_gmst(gps_time):
t = Time(gps_time, format='gps', scale='utc')
return t.sidereal_time('mean', 'greenwich').rad
def compute_Fp_Fc(arm1, arm2, ra, dec, gmst, psi=0.0):
theta = np.pi/2 - dec
phi = ra
m_eq = np.array([-np.sin(phi), np.cos(phi), 0.0])
n_eq = np.array([-np.cos(theta)*np.cos(phi),
-np.cos(theta)*np.sin(phi),
np.sin(theta)])
c, s = np.cos(gmst), np.sin(gmst)
R = np.array([[c, s, 0], [-s, c, 0], [0, 0, 1]])
m = R @ m_eq
n = R @ n_eq
m_rot = np.cos(2*psi)*m + np.sin(2*psi)*n
n_rot = -np.sin(2*psi)*m + np.cos(2*psi)*n
e_p = np.outer(m_rot, m_rot) - np.outer(n_rot, n_rot)
e_c = np.outer(m_rot, n_rot) + np.outer(n_rot, m_rot)
D = 0.5 * (np.outer(arm1, arm1) - np.outer(arm2, arm2))
return np.tensordot(D, e_p, axes=2), np.tensordot(D, e_c, axes=2)
def antenna_power(arm1, arm2, ra, dec, gmst):
Fp, Fc = compute_Fp_Fc(arm1, arm2, ra, dec, gmst)
return Fp**2 + Fc**2
# ── Sky grid ───────────────────────────────────────────────────────
n_ra, n_dec = 360, 180
ra_grid = np.linspace(-np.pi, np.pi, n_ra)
dec_grid = np.linspace(-np.pi/2, np.pi/2, n_dec)
RA, DEC = np.meshgrid(ra_grid, dec_grid)
ra_flat = RA.flatten()
dec_flat = DEC.flatten()
gmst = get_gmst(GPS_TRIGGER)
t_utc = Time(GPS_TRIGGER, format='gps', scale='utc').iso
print(f"GPS: {GPS_TRIGGER}\nUTC: {t_utc}\nGMST: {np.degrees(gmst):.3f} deg\n")
# ── Compute maps ───────────────────────────────────────────────────
powers = {}
for name, cfg in DETECTORS_ECEF.items():
p = np.array([
antenna_power(cfg['arm1'], cfg['arm2'], ra, dec, gmst)
for ra, dec in zip(ra_flat, dec_flat)
]).reshape(n_dec, n_ra)
powers[name] = p
power_network = sum(powers.values())
# ── Print antenna factors at source ───────────────────────────────
print(f" {'Detector':<23} {'Fp':>8} {'Fc':>8} {'Fp2+Fc2':>10}")
print(" " + "-"*55)
for name, cfg in DETECTORS_ECEF.items():
Fp, Fc = compute_Fp_Fc(cfg['arm1'], cfg['arm2'], ra_src, dec_src, gmst)
print(f" {name:<23} {Fp:>8.4f} {Fc:>8.4f} {Fp**2+Fc**2:>10.4f}")

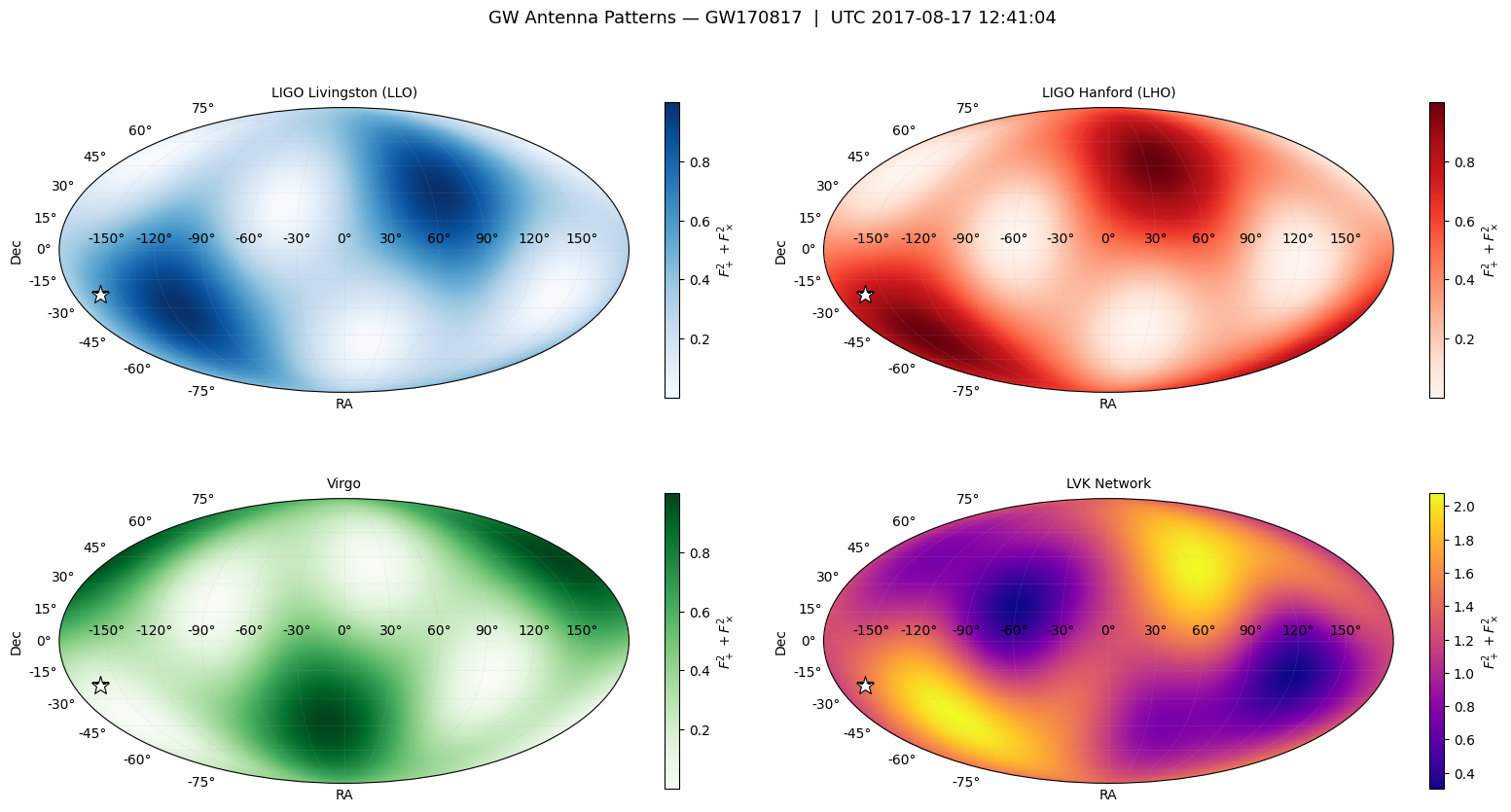

# ── Plot ───────────────────────────────────────────────────────────
fig, axes = plt.subplots(2, 2, figsize=(16, 9), subplot_kw={'projection': 'mollweide'})
plot_data = [
(powers['LIGO Livingston (LLO)'], 'LIGO Livingston (LLO)', 'Blues'),
(powers['LIGO Hanford (LHO)'], 'LIGO Hanford (LHO)', 'Reds'),
(powers['Virgo'], 'Virgo', 'Greens'),
(power_network, 'LVK Network', 'plasma'),
]
for ax, (power, title, cmap) in zip(axes.flatten(), plot_data):
im = ax.pcolormesh(ra_grid, dec_grid, power, cmap=cmap, shading='auto')
# ...) # CORRECT
ax.plot(ra_plot, dec_src, 'w*', markersize=14,
markeredgecolor='black', markeredgewidth=0.8, zorder=5)
ax.grid(True, linestyle='dotted', linewidth=0.4, alpha=0.5)
ax.set_title(title, fontsize=10, pad=8)
plt.colorbar(im, ax=ax, shrink=0.7, label=r'$F_+^2 + F_\times^2$')
ax.set_xlabel('RA')
ax.set_ylabel('Dec')
plt.suptitle(f'GW Antenna Patterns — GW170817 | UTC {t_utc[:19]}', fontsize=13)
plt.tight_layout()
plt.savefig('antenna_patterns.png', dpi=150, bbox_inches='tight')
plt.show()
GPS: 1187008882.4
UTC: 2017-08-17 12:41:04.400
GMST: 156.356 deg
Detector Fp Fc Fp2+Fc2
-------------------------------------------------------
LIGO Livingston (LLO) 0.1320 -0.7395 0.5643
LIGO Hanford (LHO) 0.0785 0.8859 0.7910
Virgo -0.1601 0.2577 0.0921
# We choose a waveform approximant suitable for BNS analysis
# In this case we are taking into account tidal polarizability effects
waveform_model = 'IMRPhenomD_NRTidalv2'
f_ref = 10.
⚠️ Note:#
The default reference frequency
f_refis set to \(10\), the user can pass a different value, together with thewaveform_modelparameter (see examples below)

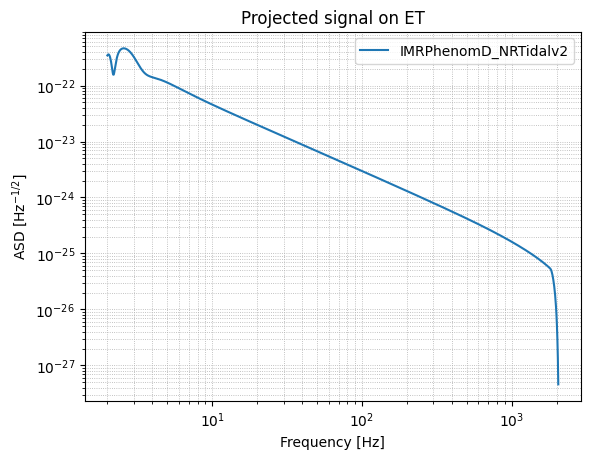

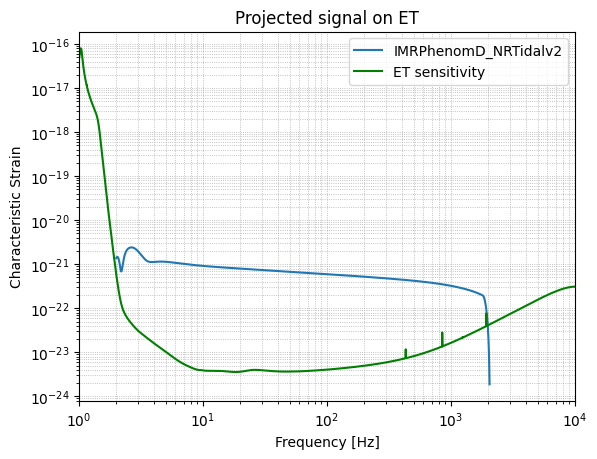

Play with the signal#
# Choose the detector onto which you want to project the signal
detector = 'LLO'
# The following function outputs the signal projected onto the chosen detector
signal, _ = gw.utilities.get_fd_signal(parameters, detector, waveform_model, f_ref) # waveform_model and f_ref are passed together
frequency = gw.detection.Detector(detector).frequencyvector[:, 0]
# add the detector's sensitivity curve and plot the characteristic strain
psd_data = gw.utilities.get_detector_psd(detector)
# psd_data is a dictionary with the keys 'frequency' and 'psd'
plt.loglog(frequency, 2 * frequency * np.abs(signal[:, 0]), label='%s' %waveform_model)
plt.loglog(psd_data[:, 0], np.sqrt(psd_data[:, 0] * psd_data[:, 1]), label='%s sensitivity' %detector, color='green')
plt.legend()
plt.xlabel('Frequency [Hz]')
plt.ylabel('Characteristic Strain')
plt.grid(linestyle='dotted', linewidth='0.6', which='both')
plt.title('Projected signal on %s' %detector)
plt.show()
---------------------------------------------------------------------------
FileNotFoundError Traceback (most recent call last)
Cell In[8], line 8
6 frequency = gw.detection.Detector(detector).frequencyvector[:, 0]
7 # add the detector's sensitivity curve and plot the characteristic strain
----> 8 psd_data = gw.utilities.get_detector_psd(detector)
9 # psd_data is a dictionary with the keys 'frequency' and 'psd'
11 plt.loglog(frequency, 2 * frequency * np.abs(signal[:, 0]), label='%s' %waveform_model)
File /opt/anaconda3/envs/acme_env/lib/python3.10/site-packages/GWFish/modules/utilities.py:57, in get_detector_psd(detector_name)
43 def get_detector_psd(detector_name):
44 """
45 Get the Power Spectral Density of a detector
46
(...)
55 Power Spectral Density of the detector
56 """
---> 57 with open(PSD_PATH / f'{detector_name}_psd.txt', 'rb') as f:
58 return np.loadtxt(f, usecols=[0, 1])
FileNotFoundError: [Errno 2] No such file or directory: '/opt/anaconda3/envs/acme_env/lib/python3.10/site-packages/GWFish/detector_psd/LLO_psd.txt'
import numpy as np
import pandas as pd
from scipy.interpolate import interp1d
from astropy.time import Time
import GWFish.modules.detection as det
import GWFish.modules.waveforms as wf
# ── Source parameters ─────────────────────────────────────────────
GPS_TRIGGER = 1187008882.4
ra_src = np.radians(197.5)
dec_src = np.radians(-23.4)
parameters = pd.DataFrame({
'mass_1': [1.46],
'mass_2': [1.27],
'luminosity_distance': [40.0],
'theta_jn': [2.545],
'ra': [float(ra_src)],
'dec': [float(dec_src)],
'psi': [0.0],
'phase': [0.0],
'geocent_time': [float(GPS_TRIGGER)],
'a_1': [0.0],
'a_2': [0.0],
})
waveform_model = 'TaylorF2'
f_min = 23.0 # GW170817 entered band at ~24 Hz
f_max = 2e3
PUBLISHED_SNR = {'LLO': 26.4, 'LHO': 18.8, 'VIR': 2.0}
# ── ECEF arm unit vectors (official LAL values) ───────────────────
ARMS = {
'LLO': {
'arm1': np.array([-0.95457412153, -0.14158077340, -0.26218911324]),
'arm2': np.array([ 0.29774156894, -0.48791033647, -0.82054461286]),
},
'LHO': {
'arm1': np.array([-0.22389266154, 0.79983062746, 0.55690487831]),
'arm2': np.array([-0.91397818574, 0.02609403989, -0.40492342125]),
},
'VIR': {
'arm1': np.array([-0.70045821479, 0.20848948619, 0.68256166277]),
'arm2': np.array([-0.05379255368, -0.96908180549, 0.24080451708]),
},
}
# ── Antenna pattern functions ─────────────────────────────────────
def get_gmst(gps_time):
return Time(gps_time, format='gps', scale='utc').sidereal_time('mean', 'greenwich').rad
def compute_Fp_Fc(arm1, arm2, ra, dec, gmst, psi=0.0):
theta = np.pi/2 - dec
phi = ra
m_eq = np.array([-np.sin(phi), np.cos(phi), 0.0])
n_eq = np.array([-np.cos(theta)*np.cos(phi),
-np.cos(theta)*np.sin(phi),
np.sin(theta)])
c, s = np.cos(gmst), np.sin(gmst)
R = np.array([[c, s, 0], [-s, c, 0], [0, 0, 1]])
m = R @ m_eq; n = R @ n_eq
m_rot = np.cos(2*psi)*m + np.sin(2*psi)*n
n_rot = -np.sin(2*psi)*m + np.cos(2*psi)*n
e_p = np.outer(m_rot, m_rot) - np.outer(n_rot, n_rot)
e_c = np.outer(m_rot, n_rot) + np.outer(n_rot, m_rot)
D = 0.5*(np.outer(arm1, arm1) - np.outer(arm2, arm2))
return np.tensordot(D, e_p, axes=2), np.tensordot(D, e_c, axes=2)
gmst = get_gmst(GPS_TRIGGER)
psi = float(parameters['psi'].iloc[0])
# ── Signal helper ─────────────────────────────────────────────────
def get_signal(gwname, params_df, model):
detector = det.Detector(gwname)
freq = detector.frequencyvector[:, 0]
data_params = {'frequencyvector': detector.frequencyvector, 'f_ref': 50.0}
wav_obj = wf.TaylorF2(model, params_df, data_params)
wav_obj.gw_params = {k: float(v.iloc[0]) if hasattr(v, 'iloc') else float(v)
for k, v in wav_obj.gw_params.items()}
return freq, wav_obj()
# ── Compute projected SNR ─────────────────────────────────────────
print(f" {'Det':<5} {'Fp':>7} {'Fc':>7} {'Fp2+Fc2':>9} "
f"{'SNR (proj)':>11} {'Published':>10}")
print(" " + "-"*60)
total_snr_sq = 0.0
for gwname in ['LLO', 'LHO', 'VIR']:
freq, hf = get_signal(gwname, parameters, waveform_model)
psd = det.Detector(gwname).components[0].psd_data
# Antenna factors at source position
Fp, Fc = compute_Fp_Fc(
ARMS[gwname]['arm1'], ARMS[gwname]['arm2'],
float(ra_src), float(dec_src), gmst, psi
)
# Mask to [f_min, f_max]
ms = (freq >= f_min) & (freq <= f_max)
f = freq[ms]
hp = hf[ms, 0]
hc = hf[ms, 1]
# Projected strain: h_det = F+ h+ + Fc hx
h_det = Fp * hp + Fc * hc
# Interpolate PSD
Sn = interp1d(psd[:, 0], psd[:, 1],
bounds_error=False, fill_value=np.inf)(f)
# df
df = np.diff(f); df = np.append(df, df[-1])
# ρ² = 4 ∫ |F+ h+ + Fc hx|² / Sn df
snr_sq = 4.0 * np.nansum(np.abs(h_det)**2 / Sn * df)
snr = np.sqrt(snr_sq)
total_snr_sq += snr_sq
print(f" {gwname:<5} {Fp:>7.4f} {Fc:>7.4f} "
f"{Fp**2+Fc**2:>9.4f} {snr:>11.1f} "
f"{PUBLISHED_SNR[gwname]:>10.1f}")
print(f"\n Network SNR: {np.sqrt(total_snr_sq):.1f} [published: 32.4]")
Det Fp Fc Fp2+Fc2 SNR (proj) Published
------------------------------------------------------------
LLO 0.1320 -0.7395 0.5643 93.1 26.4
LHO 0.0785 0.8859 0.7910 109.9 18.8
VIR -0.1601 0.2577 0.0921 29.4 2.0
Network SNR: 147.0 [published: 32.4]
# suppress warning outputs for using lal in jupuyter notebook
import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")
import GWFish.modules as gw
from tqdm import tqdm
import matplotlib
import matplotlib.pyplot as plt
import corner
import numpy as np
import pandas as pd
import json
import os
from astropy.cosmology import Planck18
# Event's parameters should be passed as Pandas dataframe
parameters = {
'chirp_mass': np.array([1.1858999987203738]) * (1 + 0.00980),
'mass_ratio': np.array([0.8308538032620448]),
'luminosity_distance': Planck18.luminosity_distance(0.00980).value,
'theta_jn': np.array([2.545065595974997]),
'ra': np.array([3.4461599999999994]),
'dec': np.array([-0.4080839999999999]),
'psi': np.array([0.]),
'phase': np.array([0.]),
'geocent_time': np.array([1187008882.4]),
'a_1':np.array([0.005136138323169717]),
'a_2':np.array([0.003235146993487445]),
'lambda_1':np.array([368.17802383555687]),
'lambda_2':np.array([586.5487031450857])}
parameters = pd.DataFrame(parameters)
parameters
| chirp_mass | mass_ratio | luminosity_distance | theta_jn | ra | dec | psi | phase | geocent_time | a_1 | a_2 | lambda_1 | lambda_2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1.197522 | 0.830854 | 43.747554 | 2.545066 | 3.44616 | -0.408084 | 0.0 | 0.0 | 1.187009e+09 | 0.005136 | 0.003235 | 368.178024 | 586.548703 |
# We choose a waveform approximant suitable for BNS analysis
# In this case we are taking into account tidal polarizability effects
waveform_model = 'IMRPhenomD_NRTidalv2'
f_ref = 10.
# Choose the detector onto which you want to project the signal
detector = 'ET'
# The following function outputs the signal projected onto the chosen detector
signal, _ = gw.utilities.get_fd_signal(parameters, detector, waveform_model, f_ref) # waveform_model and f_ref are passed together
frequency = gw.detection.Detector(detector).frequencyvector[:, 0]
# This signal has three components since ET comprises three detectors, let's plot one of them
plt.loglog(frequency, np.abs(signal[:, 0]), label='%s' %waveform_model)
plt.legend()
plt.xlabel('Frequency [Hz]')
plt.ylabel('ASD [Hz$^{-1/2}$]')
plt.grid(linestyle='dotted', linewidth='0.6', which='both')
plt.title('Projected signal on %s' %detector)
plt.show()
# Choose the detector onto which you want to project the signal
detector = 'ET'
# The following function outputs the signal projected onto the chosen detector
signal, _ = gw.utilities.get_fd_signal(parameters, detector, waveform_model, f_ref) # waveform_model and f_ref are passed together
frequency = gw.detection.Detector(detector).frequencyvector[:, 0]
# This signal has three components since ET comprises three detectors, let's plot one of them
# add the detector's sensitivity curve and plot the characteristic strain
psd_data = gw.utilities.get_detector_psd(detector)
# psd_data is a dictionary with the keys 'frequency' and 'psd'
plt.loglog(frequency, 2 * frequency * np.abs(signal[:, 0]), label='%s' %waveform_model)
plt.loglog(psd_data[:, 0], np.sqrt(psd_data[:, 0] * psd_data[:, 1]), label='%s sensitivity' %detector, color='green')
plt.xlim(1, 1e4)
plt.legend()
plt.xlabel('Frequency [Hz]')
plt.ylabel('Characteristic Strain')
plt.grid(linestyle='dotted', linewidth='0.6', which='both')
plt.title('Projected signal on %s' %detector)
plt.show()
# ── Get PSDs ──────────────────────────────────────────────────────────────────
psd_ET = gw.utilities.get_detector_psd('ET')
psd_LIGO_O5 = gw.utilities.get_detector_psd('LIGO_O5')
psd_Virgo_O5 = gw.utilities.get_detector_psd('Virgo_O5')
# ── Get LLO signal and frequency ──────────────────────────────────────────────
signal_LLO, _ = gw.utilities.get_fd_signal(parameters, 'LLO', waveform_model, f_ref)
frequency_LLO = gw.detection.Detector('LLO').frequencyvector[:, 0]
# Check antenna pattern factors for each detector
for det_name in ['ET', 'LLO', 'LHO']:
det = gw.detection.Detector(det_name)
# Fp, Fc are the plus and cross antenna pattern functions
print(f"\n{det_name}:")
print(f" location: {det.location}")
# The effective amplitude factor ~ sqrt(Fp^2 + Fc^2)
# You can extract it from the signal ratio
sig_ET_amp = np.median(np.abs(signal[:, 0]))
sig_LLO_amp = np.median(np.abs(signal_LLO[:, 0]))
print(f"\nMedian |h| ratio LLO/ET = {sig_LLO_amp/sig_ET_amp:.3f}")
# Compare all three ET arms vs LLO
for i in range(3):
amp = np.median(np.abs(signal[:, i]))
print(f"ET arm {i}: median |h| = {amp:.3e}")
print(f"LLO: median |h| = {sig_LLO_amp:.3e}")
ET:
location: earth
LLO:
location: earth
LHO:
location: earth
Median |h| ratio LLO/ET = 0.863
ET arm 0: median |h| = 5.049e-24
ET arm 1: median |h| = 4.263e-24
ET arm 2: median |h| = 6.341e-24
LLO: median |h| = 4.357e-24

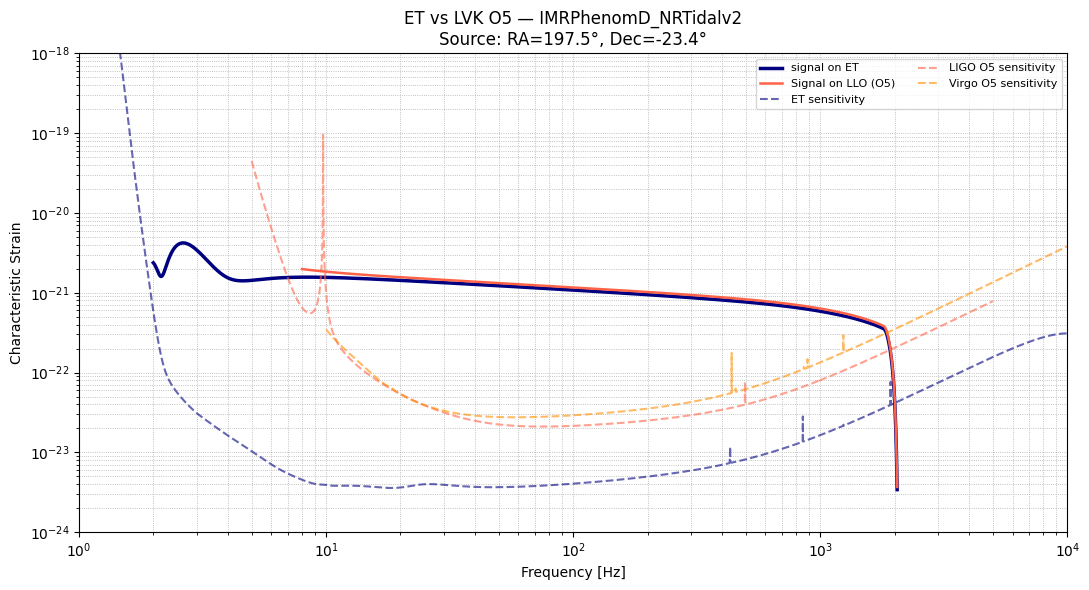

fig, ax = plt.subplots(figsize=(11, 6))
# ── All 3 ET arms ─────────────────────────────────────────────────────────────
et_colors = ['steelblue', 'cornflowerblue', 'royalblue']
#for i, col in enumerate(et_colors):
# ax.loglog(frequency, 2 * frequency * np.abs(signal[:, i]),
# color=col, lw=1.5, alpha=0.8, label=f'ET arm {i}')
# ── ET combined (quadrature sum of all 3 arms) ────────────────────────────────
signal_ET_combined = np.sqrt(np.sum(np.abs(signal)**2, axis=1))
ax.loglog(frequency, 2 * frequency * signal_ET_combined,
color='navy', lw=2.5, label='signal on ET')
# ── LVK signals ───────────────────────────────────────────────────────────────
ax.loglog(frequency_LLO, 2 * frequency_LLO * np.abs(signal_LLO[:, 0]),
color='tomato', lw=1.8, label='Signal on LLO (O5)')
# ── Sensitivity curves ────────────────────────────────────────────────────────
ax.loglog(psd_ET[:, 0], np.sqrt(psd_ET[:, 0] * psd_ET[:, 1]),
color='navy', lw=1.5, linestyle='--', alpha=0.6,
label='ET sensitivity')
ax.loglog(psd_LIGO_O5[:, 0], np.sqrt(psd_LIGO_O5[:, 0] * psd_LIGO_O5[:, 1]),
color='tomato', lw=1.5, linestyle='--', alpha=0.6,
label='LIGO O5 sensitivity')
ax.loglog(psd_Virgo_O5[:, 0], np.sqrt(psd_Virgo_O5[:, 0] * psd_Virgo_O5[:, 1]),
color='darkorange', lw=1.5, linestyle='--', alpha=0.6,
label='Virgo O5 sensitivity')
# ── Annotation explaining the ratio ──────────────────────────────────────────
#ax.text(0.02, 0.05,
# f'LLO/ET arm0 amplitude ratio = {sig_LLO_amp/sig_ET_amp:.2f}×\n'
# f'(antenna pattern effect for this sky position)',
# transform=ax.transAxes, fontsize=8,
# bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.5))
ax.set_xlabel('Frequency [Hz]')
ax.set_ylabel('Characteristic Strain')
ax.grid(linestyle='dotted', linewidth=0.6, which='both')
ax.legend(fontsize=8, ncol=2)
ax.set_title(f'ET vs LVK O5 — {waveform_model}\n'
f'Source: RA={np.degrees(parameters["ra"].iloc[0]):.1f}°, '
f'Dec={np.degrees(parameters["dec"].iloc[0]):.1f}°')
plt.xlim(1, 1e4)
plt.ylim(1e-24, 1e-18)
plt.tight_layout()
plt.savefig('ET_vs_O5_strain_alarms.png', dpi=150, bbox_inches='tight')
plt.show()
# Plot the time before the merger as a function of the frequency
_, t_of_f = gw.utilities.get_fd_signal(parameters, detector, waveform_model, f_ref)
# The networks are the combinations of detectors that will be used for the analysis
# The detection_SNR is the minimum SNR for a detection:
# --> The first entry specifies the minimum SNR for a detection in a single detector
# --> The second entry specifies the minimum network SNR for a detection
detectors = ['ET', 'CE1', 'LLO', 'LHO', 'VIR']
network = gw.detection.Network(detector_ids = detectors, detection_SNR = (0., 8.))
snr = gw.utilities.get_snr(parameters, network, waveform_model, f_ref)
snr
| ET | CE1 | LLO | LHO | VIR | network | |
|---|---|---|---|---|---|---|
| event_0 | 645.005406 | 1126.071931 | 85.542104 | 101.09583 | 27.422189 | 1304.745095 |
# The fisher parameters are the parameters that will be used to calculate the Fisher matrix
# and on which we will calculate the errors
fisher_parameters = ['chirp_mass', 'mass_ratio', 'luminosity_distance', 'theta_jn', 'dec','ra',
'psi', 'phase', 'geocent_time', 'a_1', 'a_2', 'lambda_1', 'lambda_2']
detected, network_snr, parameter_errors, sky_localization = gw.fishermatrix.compute_network_errors(
network = gw.detection.Network(detector_ids = ['ET'], detection_SNR = (0., 8.)),
parameter_values = parameters,
fisher_parameters=fisher_parameters,
waveform_model = waveform_model,
f_ref = 20.,
)
# use_duty_cycle = False, # default is False anyway
# save_matrices = False, # default is False anyway, put True if you want Fisher and covariance matrices in the output
# save_matrices_path = None, # default is None anyway,
# otherwise specify the folder
# where to save the Fisher and
# corresponding covariance matrices
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.65s/it]

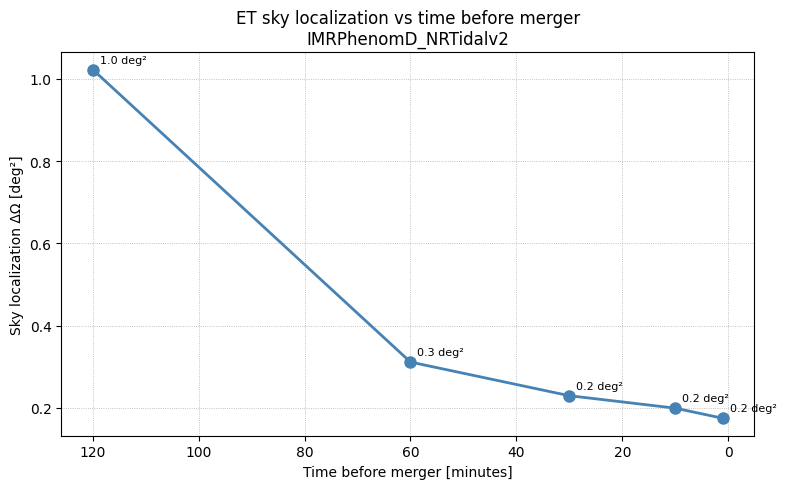

# Choose percentile factor of sky localization and pass from rad2 to deg2
percentile = 90.
sky_localization_90cl = sky_localization * gw.fishermatrix.sky_localization_percentile_factor(percentile)
sky_localization_90cl
# One can create a dictionary with the parameter errors, the order is the same as the one given in fisher_parameters
parameter_errors_dict = {}
for i, parameter in enumerate(fisher_parameters):
parameter_errors_dict['err_' + parameter] = np.squeeze(parameter_errors)[i]
print('The parameter errors of the event are ')
parameter_errors_dict
The parameter errors of the event are
{'err_chirp_mass': 7.72779259248137e-07,
'err_mass_ratio': 0.01245775908412383,
'err_luminosity_distance': 2.2517124277186706,
'err_theta_jn': 0.07997824018450687,
'err_dec': 0.0036304735517044655,
'err_ra': 0.0045523597105015,
'err_psi': 0.1233473110882511,
'err_phase': 0.2484025786007817,
'err_geocent_time': 9.925364350300389e-05,
'err_a_1': 0.1748813495349503,
'err_a_2': 0.21748881165393194,
'err_lambda_1': 2559.072176161789,
'err_lambda_2': 4614.122796339818}
M_sun = 1.989e30
G = 6.674e-11
c = 3e8
params_row = parameters.iloc[0]
Mc_solar = params_row['chirp_mass']
Mc_sec = Mc_solar * M_sun * G / c**3

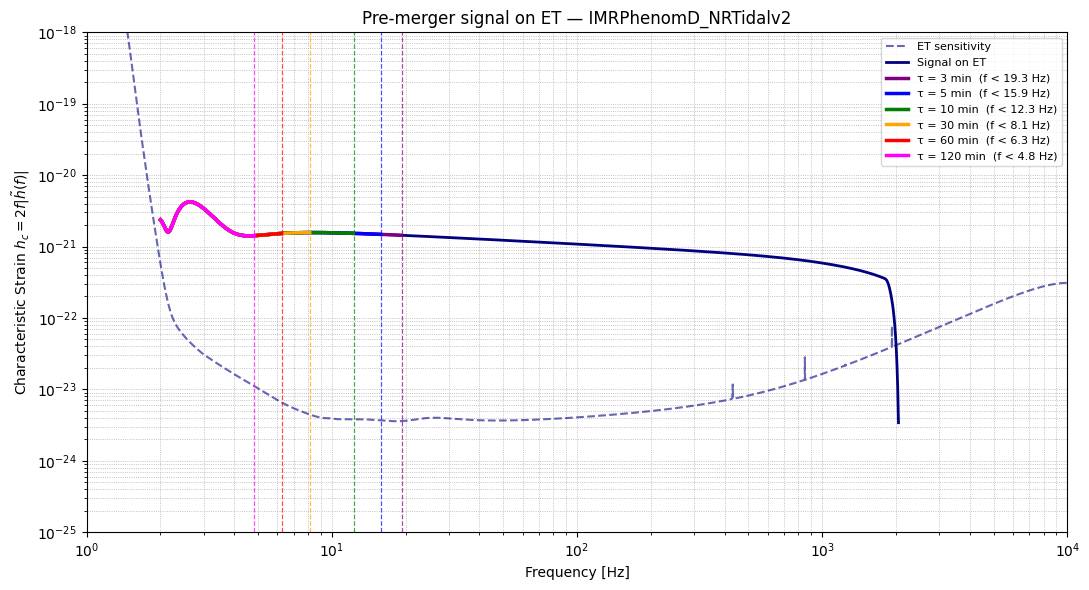

# ── Multiple pre-merger times ─────────────────────────────────────────────────
tau_minutes_list = [3, 5, 10, 30, 60, 120] # minutes before merger
colors_tau = ['purple', 'blue', 'green', 'orange', 'red', 'magenta']
# ── ET combined signal ────────────────────────────────────────────────────────
signal_ET_combined = np.sqrt(np.sum(np.abs(signal)**2, axis=1))
signal_ET = 2 * frequency * signal_ET_combined
# ── Plot ──────────────────────────────────────────────────────────────────────
plt.figure(figsize=(11, 6))
# Sensitivity curve
plt.loglog(psd_ET[:, 0], np.sqrt(psd_ET[:, 0] * psd_ET[:, 1]),
color='navy', lw=1.5, linestyle='--', alpha=0.6,
label='ET sensitivity')
# Full signal
plt.loglog(frequency, signal_ET, color='navy', lw=2, label='Signal on ET')
# Pre-merger cuts
for tau_min, col in zip(tau_minutes_list, colors_tau):
tau_sec = tau_min * 60
f_cut = (1/np.pi) * (5 / (256 * Mc_sec**(5/3) * tau_sec))**(3/8)
# Highlight the pre-merger portion
mask = frequency <= f_cut
if mask.any():
plt.loglog(frequency[mask], signal_ET[mask],
color=col, lw=2.5,
label=f'τ = {tau_min} min (f < {f_cut:.1f} Hz)')
plt.axvline(f_cut, color=col, linestyle='--', lw=0.9, alpha=0.7)
plt.xlim(1, 1e4)
plt.ylim(1e-25, 1e-18)
plt.legend(fontsize=8, loc='upper right')
plt.xlabel('Frequency [Hz]')
plt.ylabel('Characteristic Strain $h_c = 2f|\\tilde{h}(f)|$')
plt.grid(linestyle='dotted', linewidth=0.6, which='both')
plt.title(f'Pre-merger signal on ET — {waveform_model}')
plt.tight_layout()
plt.show()
# create forlder where store results
!mkdir tutorial_results
data_folder = 'tutorial_results' # the one we just created
network = gw.detection.Network(detector_ids = ['ET'], detection_SNR = (0., 8.))
gw.fishermatrix.analyze_and_save_to_txt(network = network,
parameter_values = parameters,
fisher_parameters = fisher_parameters,
sub_network_ids_list = [[0]],
population_name = 'BNS',
waveform_model = waveform_model,
f_ref = 20.,
save_path = data_folder,
save_matrices = True)
mkdir: cannot create directory ‘tutorial_results’: File exists
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.91s/it]
fisher_matrix = np.load(data_folder + '/' + 'fisher_matrices_ET_BNS_SNR8.npy')
errors = pd.read_csv(data_folder + '/' + 'Errors_ET_BNS_SNR8.txt', delimiter = ' ')
# One can access all the column names of the errors output file:
errors.keys()
Index(['network_SNR', 'chirp_mass', 'mass_ratio', 'luminosity_distance',
'theta_jn', 'ra', 'dec', 'psi', 'phase', 'geocent_time', 'a_1', 'a_2',
'lambda_1', 'lambda_2', 'err_chirp_mass', 'err_mass_ratio',
'err_luminosity_distance', 'err_theta_jn', 'err_dec', 'err_ra',
'err_psi', 'err_phase', 'err_geocent_time', 'err_a_1', 'err_a_2',
'err_lambda_1', 'err_lambda_2', 'err_sky_location'],
dtype='object')
import GWFish.modules as gw
import numpy as np
import matplotlib.pyplot as plt
# ── Fresh network ─────────────────────────────────────────────────────────────
network = gw.detection.Network(detector_ids=['ET'], detection_SNR=(0., 8.))
original_freqs = network.detectors[0].frequencyvector.copy()
print(f"Original: {original_freqs[0,0]:.2f} → {original_freqs[-1,0]:.2f} Hz, {len(original_freqs)} pts")
Mc_sec = parameters['chirp_mass'].iloc[0] * 1.989e30 * 6.674e-11 / (3e8)**3
sr_to_deg2 = (180/np.pi)**2
tau_minutes_list = [1, 10, 30, 60, 120] # ascending: closer → farther
sky_loc_list = []
f_cut_list = []
from astropy.constants import G, c, M_sun
Mc_det_kg = float(parameters['chirp_mass'].iloc[0]) * M_sun.value
Mc_sec = Mc_det_kg * G.value / c.value**3 # detector-frame, seconds
# NOTE: parameters fixed at GW170817 (dL≈40 Mpc). Only f_cut changes per iteration.
for tau_min in tau_minutes_list:
tau_sec = tau_min * 60.0
f_max_cut = (1/np.pi) * (5 / (256 * Mc_sec**(5/3) * tau_sec))**(3/8)
freq_mask = original_freqs[:, 0] <= f_max_cut
n_points = freq_mask.sum()
network.detectors[0].frequencyvector = original_freqs[freq_mask]
print(f"tau={tau_min:4d} min → f_cut={f_max_cut:.2f} Hz ({n_points} pts)", end='')
if n_points < 5:
print(" → skipped")
sky_loc_list.append(np.nan)
f_cut_list.append(f_max_cut)
network.detectors[0].frequencyvector = original_freqs
continue
detected, snr, errors_cut, sky_cut = gw.fishermatrix.compute_network_errors(
network, parameters, # fixed GW170817 parameters — intentional
waveform_model=waveform_model,
f_ref=f_ref, # no redefine_tf_vectors — use our masked vector
)
sky_deg2 = float(sky_cut[0]) * sr_to_deg2
sky_loc_list.append(sky_deg2)
f_cut_list.append(f_max_cut)
print(f" → ΔΩ = {sky_deg2:.2f} deg²")
network.detectors[0].frequencyvector = original_freqs
network.detectors[0].frequencyvector = original_freqs # final restore
sky_loc_list = np.array(sky_loc_list)
f_cut_list = np.array(f_cut_list)
# ── Plot ──────────────────────────────────────────────────────────────────────
valid = ~np.isnan(sky_loc_list)
plt.figure(figsize=(8, 5))
plt.plot(np.array(tau_minutes_list)[valid], sky_loc_list[valid],
'o-', color='steelblue', lw=2, markersize=8)
for tau_min, sky in zip(np.array(tau_minutes_list)[valid], sky_loc_list[valid]):
plt.annotate(f'{sky:.1f} deg²', (tau_min, sky),
textcoords='offset points', xytext=(5, 5), fontsize=8)
plt.xlabel('Time before merger [minutes]')
plt.ylabel('Sky localization ΔΩ [deg²]')
plt.title(f'ET sky localization vs time before merger\n{waveform_model}')
plt.grid(linestyle='dotted', linewidth=0.6)
plt.gca().invert_xaxis()
plt.tight_layout()
plt.show()
Original: 2.00 → 2048.00 Hz, 1000 pts
tau= 1 min → f_cut=29.06 Hz (386 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.73s/it]
→ ΔΩ = 0.17 deg²
tau= 10 min → f_cut=12.26 Hz (262 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.21s/it]
→ ΔΩ = 0.20 deg²
tau= 30 min → f_cut=8.12 Hz (202 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.39s/it]
→ ΔΩ = 0.23 deg²
tau= 60 min → f_cut=6.26 Hz (165 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.39s/it]
→ ΔΩ = 0.31 deg²
tau= 120 min → f_cut=4.83 Hz (127 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.47s/it]
→ ΔΩ = 1.02 deg²
from astropy.cosmology import Planck18
import GWFish.modules as gw
import numpy as np
import matplotlib.pyplot as plt
z_list = [0.0098, 0.1, 0.5, 1.0]
colors_z = ['navy', 'green', 'orange', 'red']
Mc_intrinsic = 1.1859
tau_minutes_list = [1, 10, 30, 60]
sr_to_deg2 = (180/np.pi)**2
M_sun = 1.989e30; G = 6.674e-11; c = 3e8
fig, ax = plt.subplots(figsize=(10, 6))
for z, col in zip(z_list, colors_z):
Mc_det = Mc_intrinsic * (1 + z)
dL = Planck18.luminosity_distance(z).value
params_z = parameters.copy()
params_z['chirp_mass'] = Mc_det
params_z['luminosity_distance'] = dL
print(f"\nz={z} dL={dL:.0f} Mpc")
Mc_sec = Mc_det * M_sun * G / c**3
# ── Full-band Fisher (at merger) ──────────────────────────────────────────
network_full = gw.detection.Network(detector_ids=['ET'], detection_SNR=(0., 8.))
original_freqs = network_full.detectors[0].frequencyvector.copy()
detected, snr, errors_full, sky_full = gw.fishermatrix.compute_network_errors(
network_full, params_z, waveform_model=waveform_model,
f_ref=f_ref, redefine_tf_vectors=True,
)
sky_merger = sky_full[0] * sr_to_deg2
print(f" Full band (merger): ΔΩ = {sky_merger:.2f} deg²")
# ── Pre-merger Fisher loop ────────────────────────────────────────────────
sky_loc_list = []
for tau_min in tau_minutes_list:
tau_sec = tau_min * 60
f_max_cut = (1/np.pi) * (5 / (256 * Mc_sec**(5/3) * tau_sec))**(3/8)
freq_mask = original_freqs[:, 0] <= f_max_cut
n_points = freq_mask.sum()
if n_points < 5:
sky_loc_list.append(np.nan)
continue
network_full.detectors[0].frequencyvector = original_freqs[freq_mask]
detected, snr, errors_cut, sky_cut = gw.fishermatrix.compute_network_errors(
network_full, params_z, waveform_model=waveform_model,
f_ref=f_ref, redefine_tf_vectors=True,
)
sky_loc_list.append(sky_cut[0] * sr_to_deg2)
print(f" tau={tau_min:4d} min → f_cut={f_max_cut:.2f} Hz "
f"→ ΔΩ={sky_cut[0]*sr_to_deg2:.2f} deg²")
network_full.detectors[0].frequencyvector = original_freqs # restore
network_full.detectors[0].frequencyvector = original_freqs # final restore
sky_loc_list = np.array(sky_loc_list)
valid = ~np.isnan(sky_loc_list)
tau_arr = np.array(tau_minutes_list)

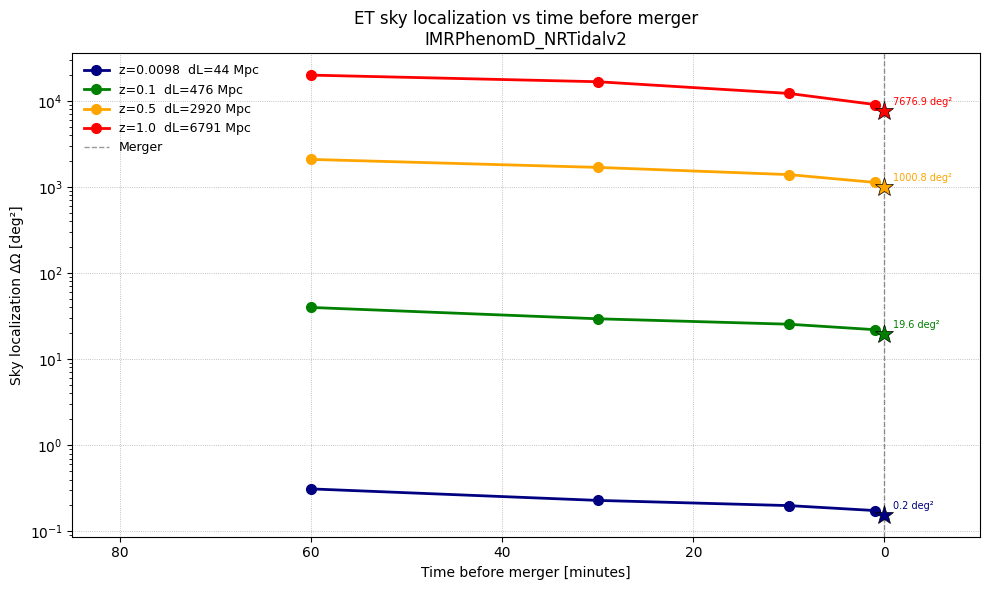

# ── Plot pre-merger curve ─────────────────────────────────────────────────
ax.plot(tau_arr[valid], sky_loc_list[valid],
'o-', color=col, lw=2, markersize=7,
label=f'z={z} dL={dL:.0f} Mpc')
# ── Plot merger point at tau=0 ────────────────────────────────────────────
ax.plot(0, sky_merger, '*', color=col, markersize=14,
markeredgecolor='black', markeredgewidth=0.5, zorder=6)
# Dashed line connecting last pre-merger point to merger star
if valid.any():
ax.plot([tau_arr[valid][0], 0],
[sky_loc_list[valid][0], sky_merger],
'--', color=col, lw=1, alpha=0.5)
# Annotate merger value
ax.annotate(f'{sky_merger:.1f} deg²', (0, sky_merger),
textcoords='offset points', xytext=(6, 4),
fontsize=7, color=col)
# ── Merger reference line ─────────────────────────────────────────────────────
ax.axvline(0, color='black', linestyle='--', lw=1, alpha=0.4, label='Merger')
ax.set_xlabel('Time before merger [minutes]')
ax.set_ylabel('Sky localization ΔΩ [deg²]')
ax.set_title(f'ET sky localization vs time before merger\n{waveform_model}')
ax.grid(linestyle='dotted', linewidth=0.6)
ax.invert_xaxis() # merger at right (τ=0)
ax.set_xlim(max(tau_minutes_list) + 5, -5)
ax.legend(fontsize=9, frameon=False)
plt.yscale("log")
plt.xlim(85, -10)
plt.tight_layout()
plt.savefig('ET_skyloc_vs_redshift.png', dpi=150, bbox_inches='tight')
plt.show()
z=0.0098 dL=44 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.64s/it]
Full band (merger): ΔΩ = 0.16 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.17s/it]
tau= 1 min → f_cut=29.10 Hz → ΔΩ=0.17 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.47s/it]
tau= 10 min → f_cut=12.27 Hz → ΔΩ=0.20 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.57s/it]
tau= 30 min → f_cut=8.13 Hz → ΔΩ=0.23 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.47s/it]
tau= 60 min → f_cut=6.27 Hz → ΔΩ=0.31 deg²
z=0.1 dL=476 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.26s/it]
Full band (merger): ΔΩ = 19.65 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.39s/it]
tau= 1 min → f_cut=27.58 Hz → ΔΩ=21.97 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.37s/it]
tau= 10 min → f_cut=11.63 Hz → ΔΩ=25.43 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.34s/it]
tau= 30 min → f_cut=7.70 Hz → ΔΩ=29.40 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.57s/it]
tau= 60 min → f_cut=5.94 Hz → ΔΩ=39.78 deg²
z=0.5 dL=2920 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.31s/it]
Full band (merger): ΔΩ = 1000.76 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.49s/it]
tau= 1 min → f_cut=22.72 Hz → ΔΩ=1125.38 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.36s/it]
tau= 10 min → f_cut=9.58 Hz → ΔΩ=1387.25 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.57s/it]
tau= 30 min → f_cut=6.35 Hz → ΔΩ=1682.02 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.49s/it]
tau= 60 min → f_cut=4.89 Hz → ΔΩ=2082.47 deg²
z=1.0 dL=6791 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.34s/it]
Full band (merger): ΔΩ = 7676.87 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.51s/it]
tau= 1 min → f_cut=18.98 Hz → ΔΩ=9024.69 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.37s/it]
tau= 10 min → f_cut=8.00 Hz → ΔΩ=12146.42 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.50s/it]
tau= 30 min → f_cut=5.30 Hz → ΔΩ=16610.49 deg²
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.37s/it]
tau= 60 min → f_cut=4.09 Hz → ΔΩ=19823.70 deg²
from astropy.cosmology import Planck18
import GWFish.modules as gw
import numpy as np
import matplotlib.pyplot as plt
z_list = [0.0098, 0.1, 0.5, 1.0]
colors_z = ['navy', 'green', 'orange', 'red']
Mc_intrinsic = 1.1859
tau_minutes_list = [1, 5, 30, 60]
sr_to_deg2 = (180/np.pi)**2
M_sun = 1.989e30; G = 6.674e-11; c = 3e8
fig, ax = plt.subplots(figsize=(10, 6))
for z, col in zip(z_list, colors_z):
Mc_det = Mc_intrinsic * (1 + z)
dL = Planck18.luminosity_distance(z).value
params_z = parameters.copy()
params_z['chirp_mass'] = Mc_det
params_z['luminosity_distance'] = dL
print(f"\nz={z} dL={dL:.0f} Mpc")
Mc_sec = Mc_det * M_sun * G / c**3

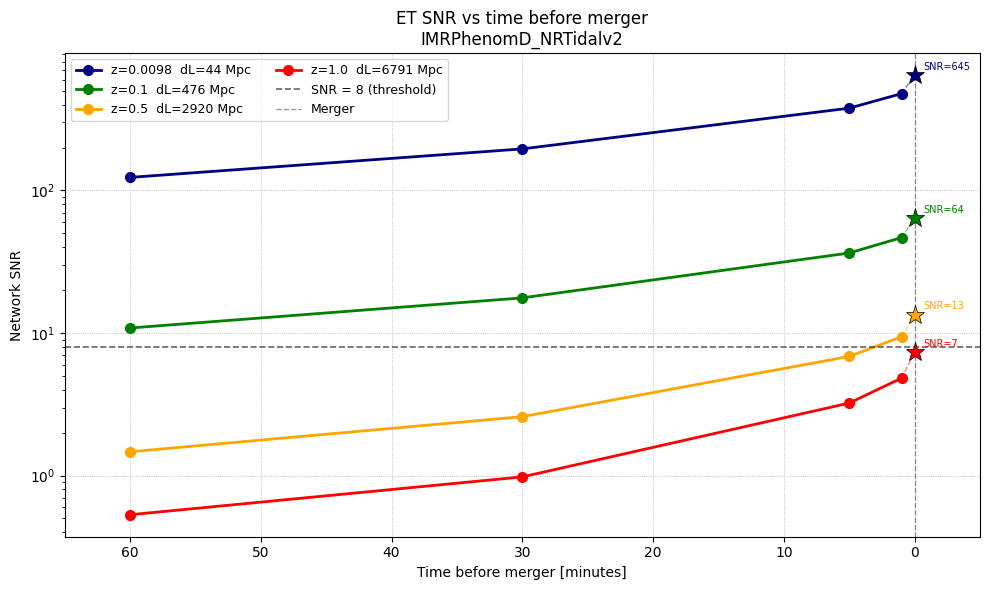

# ── Full-band SNR (at merger) ─────────────────────────────────────────────
network_full = gw.detection.Network(detector_ids=['ET'], detection_SNR=(0., 8.))
original_freqs = network_full.detectors[0].frequencyvector.copy()
detected, snr_full, errors_full, sky_full = gw.fishermatrix.compute_network_errors(
network_full, params_z, waveform_model=waveform_model,
f_ref=f_ref, redefine_tf_vectors=True,
)
snr_merger = snr_full[0]
print(f" Full band (merger): SNR = {snr_merger:.1f}")
# ── Pre-merger SNR loop ───────────────────────────────────────────────────
snr_list = []
for tau_min in tau_minutes_list:
tau_sec = tau_min * 60
f_max_cut = (1/np.pi) * (5 / (256 * Mc_sec**(5/3) * tau_sec))**(3/8)
freq_mask = original_freqs[:, 0] <= f_max_cut
n_points = freq_mask.sum()
if n_points < 5:
snr_list.append(np.nan)
continue
network_full.detectors[0].frequencyvector = original_freqs[freq_mask]
detected, snr_cut, errors_cut, sky_cut = gw.fishermatrix.compute_network_errors(
network_full, params_z, waveform_model=waveform_model,
f_ref=f_ref, redefine_tf_vectors=True,
)
snr_list.append(snr_cut[0])
print(f" tau={tau_min:4d} min → f_cut={f_max_cut:.2f} Hz "
f"→ SNR={snr_cut[0]:.1f}")
network_full.detectors[0].frequencyvector = original_freqs # restore
network_full.detectors[0].frequencyvector = original_freqs # final restore
snr_list = np.array(snr_list)
valid = ~np.isnan(snr_list)
tau_arr = np.array(tau_minutes_list)
# ── Plot pre-merger SNR curve ─────────────────────────────────────────────
ax.plot(tau_arr[valid], snr_list[valid],
'o-', color=col, lw=2, markersize=7,
label=f'z={z} dL={dL:.0f} Mpc')
# ── Plot merger SNR as star at tau=0 ──────────────────────────────────────
ax.plot(0, snr_merger, '*', color=col, markersize=14,
markeredgecolor='black', markeredgewidth=0.5, zorder=6)
# Dashed line to merger
if valid.any():
ax.plot([tau_arr[valid][0], 0],
[snr_list[valid][0], snr_merger],
'--', color=col, lw=1, alpha=0.5)
ax.annotate(f'SNR={snr_merger:.0f}', (0, snr_merger),
textcoords='offset points', xytext=(6, 4),
fontsize=7, color=col)
# ── Detection threshold ───────────────────────────────────────────────────────
ax.axhline(8, color='black', linestyle='--', lw=1.2, alpha=0.6, label='SNR = 8 (threshold)')
ax.axvline(0, color='black', linestyle='--', lw=1, alpha=0.4, label='Merger')
ax.set_xlabel('Time before merger [minutes]')
ax.set_ylabel('Network SNR')
ax.set_title(f'ET SNR vs time before merger\n{waveform_model}')
ax.grid(linestyle='dotted', linewidth=0.6)
ax.invert_xaxis() # merger at right
ax.set_xlim(max(tau_minutes_list) + 5, -5)
ax.legend(fontsize=9, ncol=2)
plt.yscale("log")
plt.tight_layout()
plt.savefig('ET_SNR_vs_redshift.png', dpi=150, bbox_inches='tight')
plt.show()
z=0.0098 dL=44 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.64s/it]
Full band (merger): SNR = 645.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.06s/it]
tau= 1 min → f_cut=29.10 Hz → SNR=478.3
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.44s/it]
tau= 5 min → f_cut=15.91 Hz → SNR=378.2
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.68s/it]
tau= 30 min → f_cut=8.13 Hz → SNR=195.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.58s/it]
tau= 60 min → f_cut=6.27 Hz → SNR=123.6
z=0.1 dL=476 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.40s/it]
Full band (merger): SNR = 63.7
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.42s/it]
tau= 1 min → f_cut=27.58 Hz → SNR=46.7
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.45s/it]
tau= 5 min → f_cut=15.08 Hz → SNR=36.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.36s/it]
tau= 30 min → f_cut=7.70 Hz → SNR=17.6
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.34s/it]
tau= 60 min → f_cut=5.94 Hz → SNR=10.8
z=0.5 dL=2920 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.32s/it]
Full band (merger): SNR = 13.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.29s/it]
tau= 1 min → f_cut=22.72 Hz → SNR=9.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.28s/it]
tau= 5 min → f_cut=12.43 Hz → SNR=6.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.24s/it]
tau= 30 min → f_cut=6.35 Hz → SNR=2.6
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.22s/it]
tau= 60 min → f_cut=4.89 Hz → SNR=1.5
z=1.0 dL=6791 Mpc
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.13s/it]
Full band (merger): SNR = 7.3
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.29s/it]
tau= 1 min → f_cut=18.98 Hz → SNR=4.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.27s/it]
tau= 5 min → f_cut=10.38 Hz → SNR=3.2
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.31s/it]
tau= 30 min → f_cut=5.30 Hz → SNR=1.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.39s/it]
tau= 60 min → f_cut=4.09 Hz → SNR=0.5
from astropy.cosmology import Planck18
from astropy.constants import G, c, M_sun
import GWFish.modules as gw
import numpy as np
import matplotlib.pyplot as plt
from scipy.interpolate import interp1d
# ── Constants (astropy — high precision SI) ───────────────────────────────────
G_val = G.value # 6.6743e-11 m³/kg/s²
c_val = c.value # 2.99792458e8 m/s
Msun_val = M_sun.value # 1.988416e30 kg
# ── Source-frame parameters ───────────────────────────────────────────────────
Mc_intrinsic = parameters['chirp_mass'].iloc[0] / (1 + 0.00980) # source-frame
q = float(parameters['mass_ratio'].iloc[0])
print(f"Mc_intrinsic = {Mc_intrinsic:.6f} Msun")
# ── Build network ONCE ────────────────────────────────────────────────────────
network_et = gw.detection.Network(detector_ids=['ET'], detection_SNR=(0., 8.))
original_freqs = network_et.detectors[0].frequencyvector.copy()
print(f"ET freq range: {original_freqs[0,0]:.2f} → {original_freqs[-1,0]:.2f} Hz "
f"({len(original_freqs)} pts)")
# ── Redshift grid ─────────────────────────────────────────────────────────────
z_grid = np.logspace(np.log10(0.007), np.log10(5.0), 40)
snr_grid = []
for z in z_grid:
Mc_det = Mc_intrinsic * (1 + z)
dL = Planck18.luminosity_distance(z).value
params_z = parameters.copy()
params_z['chirp_mass'] = Mc_det
params_z['luminosity_distance'] = dL
# ✅ Always restore full frequency vector
network_et.detectors[0].frequencyvector = original_freqs
_, snr_z, _, _ = gw.fishermatrix.compute_network_errors(
network_et, params_z,
waveform_model=waveform_model,
f_ref=f_ref,
redefine_tf_vectors=True,
)
snr_val = float(snr_z[0])
snr_grid.append(snr_val)
print(f"z={z:.3f} dL={dL:.0f} Mpc SNR={snr_val:.1f}")
# ✅ Restore at end
network_et.detectors[0].frequencyvector = original_freqs
snr_grid = np.array(snr_grid)
dL_grid = np.array([Planck18.luminosity_distance(z).value for z in z_grid])
# ── Find horizon ──────────────────────────────────────────────────────────────
valid = ~np.isnan(snr_grid)
if (snr_grid[valid] >= 8).any() and (snr_grid[valid] < 8).any():
z_horizon = float(interp1d(snr_grid[valid][::-1], z_grid[valid][::-1])(8.0))
dL_horizon = float(interp1d(snr_grid[valid][::-1], dL_grid[valid][::-1])(8.0))
print(f"\nET horizon:")
print(f" z = {z_horizon:.3f}")
print(f" dL = {dL_horizon:.0f} Mpc = {dL_horizon/1e3:.2f} Gpc")
else:
raise ValueError("SNR=8 not crossed — extend z_grid!")

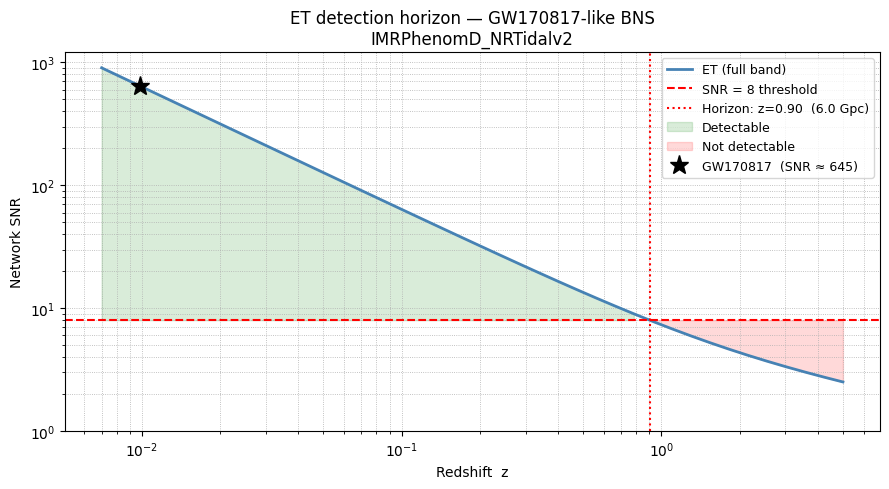

# ── GW170817 reference point ──────────────────────────────────────────────────
snr_170817 = float(interp1d(z_grid[valid], snr_grid[valid])(0.0098))
# ── Plot ──────────────────────────────────────────────────────────────────────
fig, ax = plt.subplots(figsize=(9, 5))
ax.loglog(z_grid[valid], snr_grid[valid],
color='steelblue', lw=2, label='ET (full band)')
ax.axhline(8, color='red', linestyle='--', lw=1.5, label='SNR = 8 threshold')
ax.axvline(z_horizon, color='red', linestyle=':', lw=1.5,
label=f'Horizon: z={z_horizon:.2f} ({dL_horizon/1e3:.1f} Gpc)')
ax.fill_between(z_grid[valid], snr_grid[valid], 8,
where=snr_grid[valid] >= 8,
alpha=0.15, color='green', label='Detectable')
ax.fill_between(z_grid[valid], snr_grid[valid], 8,
where=snr_grid[valid] < 8,
alpha=0.15, color='red', label='Not detectable')
ax.plot(0.0098, snr_170817, 'k*', markersize=14, zorder=5,
label=f'GW170817 (SNR ≈ {snr_170817:.0f})')
ax.set_xlabel('Redshift z')
ax.set_ylabel('Network SNR')
ax.set_title(f'ET detection horizon — GW170817-like BNS\n{waveform_model}')
ax.legend(fontsize=9)
ax.grid(linestyle='dotted', linewidth=0.6, which='both')
ax.set_ylim(1, None)
plt.tight_layout()
plt.savefig('ET_horizon_BNS.png', dpi=150, bbox_inches='tight')
plt.show()
Mc_intrinsic = 1.185900 Msun
ET freq range: 2.00 → 2048.00 Hz (1000 pts)
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.60s/it]
z=0.007 dL=31 Mpc SNR=902.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.22s/it]
z=0.008 dL=37 Mpc SNR=762.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.50s/it]
z=0.010 dL=44 Mpc SNR=644.7
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.81s/it]
z=0.012 dL=52 Mpc SNR=544.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.75s/it]
z=0.014 dL=61 Mpc SNR=460.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.16s/it]
z=0.016 dL=73 Mpc SNR=389.1
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.85s/it]
z=0.019 dL=86 Mpc SNR=328.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.89s/it]
z=0.023 dL=103 Mpc SNR=277.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.85s/it]
z=0.027 dL=122 Mpc SNR=234.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.41s/it]
z=0.032 dL=145 Mpc SNR=198.5
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.68s/it]
z=0.038 dL=172 Mpc SNR=167.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.65s/it]
z=0.045 dL=205 Mpc SNR=141.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.70s/it]
z=0.053 dL=244 Mpc SNR=120.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.65s/it]
z=0.063 dL=290 Mpc SNR=101.5
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.69s/it]
z=0.074 dL=346 Mpc SNR=85.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.50s/it]
z=0.088 dL=414 Mpc SNR=72.6
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.69s/it]
z=0.104 dL=495 Mpc SNR=61.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.90s/it]
z=0.123 dL=593 Mpc SNR=52.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.26s/it]
z=0.145 dL=712 Mpc SNR=44.1
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.50s/it]
z=0.172 dL=856 Mpc SNR=37.3
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.48s/it]
z=0.204 dL=1032 Mpc SNR=31.7
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.57s/it]
z=0.241 dL=1247 Mpc SNR=26.9
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.15s/it]
z=0.285 dL=1511 Mpc SNR=22.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.49s/it]
z=0.337 dL=1836 Mpc SNR=19.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.52s/it]
z=0.399 dL=2236 Mpc SNR=16.6
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.62s/it]
z=0.473 dL=2730 Mpc SNR=14.2
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.33s/it]
z=0.559 dL=3341 Mpc SNR=12.1
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.67s/it]
z=0.662 dL=4097 Mpc SNR=10.4
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.73s/it]
z=0.783 dL=5032 Mpc SNR=9.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.77s/it]
z=0.927 dL=6188 Mpc SNR=7.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.22s/it]
z=1.097 dL=7616 Mpc SNR=6.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.54s/it]
z=1.299 dL=9374 Mpc SNR=6.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.46s/it]
z=1.537 dL=11536 Mpc SNR=5.2
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.50s/it]
z=1.819 dL=14185 Mpc SNR=4.6
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.28s/it]
z=2.153 dL=17424 Mpc SNR=4.1
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.51s/it]
z=2.548 dL=21375 Mpc SNR=3.7
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.58s/it]
z=3.016 dL=26183 Mpc SNR=3.3
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.86s/it]
z=3.570 dL=32024 Mpc SNR=3.0
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.83s/it]
z=4.225 dL=39106 Mpc SNR=2.8
100%|█████████████████████████████████████████████| 1/1 [00:01<00:00, 1.23s/it]
z=5.000 dL=47678 Mpc SNR=2.5
ET horizon:
z = 0.904
dL = 6001 Mpc = 6.00 Gpc
SNR² per Hz — Physical Interpretation#
The matched filter SNR is defined as:
\[\rho^2 = 4 \int_0^\infty \frac{|\tilde{h}(f)|^2}{S_n(f)} \, df\]
So SNR² per Hz is the integrand:
\[\frac{d\rho^2}{df} = 4 \frac{|\tilde{h}(f)|^2}{S_n(f)}\]
It tells you which frequencies contribute most to the total SNR:
High \(d\rho^2/df\) → signal is loud compared to noise → frequency band is very useful
Low \(d\rho^2/df\) → signal is weak or noise is high → frequency contributes little
It is a competition between two effects:
Factor |
Behaviour |
|---|---|
$ |
\tilde{h}(f) |
\(S_n(f)\) |
ET noise is lowest around 10–100 Hz (the “sweet spot”) |
The peak of \(d\rho^2/df\) tells you ET’s most sensitive frequency for this source.
A more intuitive quantity is the SNR² per frequency decade:
\[f \cdot \frac{d\rho^2}{df}\]
which answers: “if I could only observe one frequency decade, which would give me the most SNR?”
import numpy as np
import matplotlib.pyplot as plt
import GWFish.modules as gw
from scipy.interpolate import interp1d
# ── Recompute everything from scratch ─────────────────────────────────────────
network_check = gw.detection.Network(detector_ids=['ET'], detection_SNR=(0., 8.))
frequency_full = network_check.detectors[0].frequencyvector[:, 0]
signal_check, _ = gw.utilities.get_fd_signal(parameters, 'ET', waveform_model, f_ref)
psd_ET_check = gw.utilities.get_detector_psd('ET')
# Interpolate PSD onto signal frequency grid
Sn = interp1d(psd_ET_check[:, 0], psd_ET_check[:, 1],
bounds_error=False, fill_value=np.inf)(frequency_full)
# Cumulative SNR
signal_combined = np.sqrt(np.sum(np.abs(signal_check)**2, axis=1))
df = np.diff(frequency_full)
df = np.append(df, df[-1])
snr2_integrand = 4 * signal_combined**2 / Sn * df
snr2_cumulative = np.cumsum(snr2_integrand)
snr_cumulative = np.sqrt(snr2_cumulative)
snr_total = snr_cumulative[-1]
# ISCO frequency
q = parameters['mass_ratio'].iloc[0]
Mc_det = parameters['chirp_mass'].iloc[0]
m1 = Mc_det * (1 + q)**(1/5) / q**(3/5)
m2 = q * m1
M_tot = (m1 + m2) * 1.989e30
f_isco = (3e8)**3 / (6**1.5 * np.pi * 6.674e-11 * M_tot)
# ── Plot ──────────────────────────────────────────────────────────────────────
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 8), sharex=True)
# SNR² per Hz
ax1.loglog(frequency_full, snr2_integrand/df,
color='steelblue', lw=1.5, label='SNR² per Hz')
ax1.axvline(f_isco, color='red', linestyle='--', lw=1.5,
label=f'f_ISCO = {f_isco:.0f} Hz')
f_peak = frequency_full[np.argmax(snr2_integrand/df)]
ax1.axvline(f_peak, color='green', linestyle='--', lw=1.5,
label=f'Peak at {f_peak:.0f} Hz')
ax1.set_ylabel('SNR² per Hz')
ax1.legend(fontsize=8)
ax1.grid(linestyle='dotted', linewidth=0.6, which='both')
ax1.set_title(f'SNR accumulation — ET — {waveform_model}')
# Cumulative SNR %
ax2.semilogx(frequency_full, snr_cumulative/snr_total*100,
color='steelblue', lw=2)
for pct, col in [(50, 'orange'), (90, 'green'), (99, 'red')]:
idx = np.argmin(np.abs(snr_cumulative/snr_total*100 - pct))
f_pct = frequency_full[idx]
ax2.axhline(pct, color=col, linestyle=':', lw=1, alpha=0.7)
ax2.axvline(f_pct, color=col, linestyle=':', lw=1, alpha=0.7)
ax2.annotate(f'{pct}% SNR at {f_pct:.0f} Hz',
(f_pct, pct), textcoords='offset points',
xytext=(8, -15), fontsize=8, color=col)
ax2.axvline(f_isco, color='red', linestyle='--', lw=1.5,
label=f'f_ISCO = {f_isco:.0f} Hz')
ax2.set_xlabel('Frequency [Hz]')
ax2.set_ylabel('Cumulative SNR [%]')
ax2.set_xlim(2, 3000)
ax2.set_ylim(0, 101)
ax2.grid(linestyle='dotted', linewidth=0.6, which='both')
ax2.legend(fontsize=8)
plt.tight_layout()
plt.savefig('SNR_accumulation_ET.png', dpi=150, bbox_inches='tight')
plt.show()

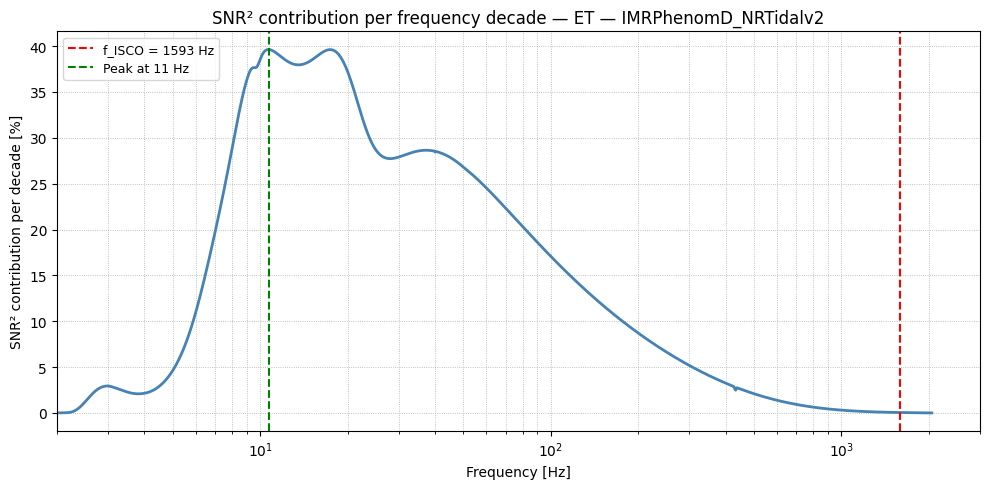

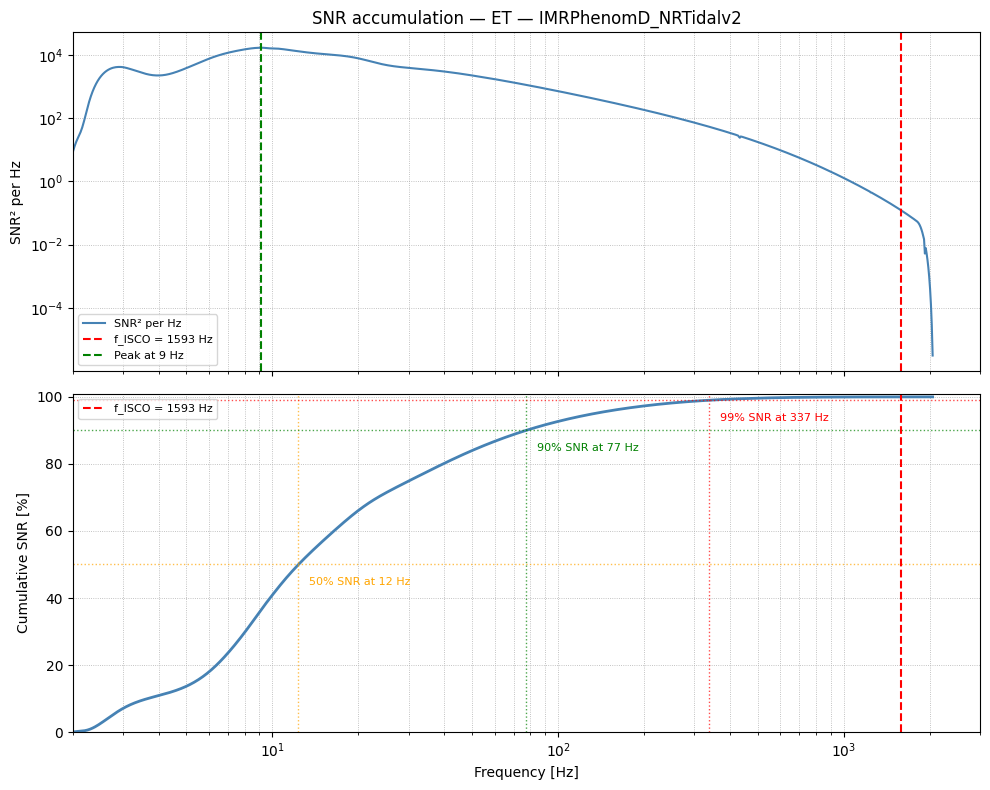

# SNR per decade = f * d(SNR²)/df (weighted by frequency)
fig, ax = plt.subplots(figsize=(10, 5))
ax.semilogx(frequency_full,
frequency_full * snr2_integrand/df / snr_total**2 * 100,
color='steelblue', lw=2)
ax.axvline(f_isco, color='red', linestyle='--', lw=1.5,
label=f'f_ISCO = {f_isco:.0f} Hz')
f_peak = frequency_full[np.argmax(frequency_full * snr2_integrand/df)]
ax.axvline(f_peak, color='green', linestyle='--', lw=1.5,
label=f'Peak at {f_peak:.0f} Hz')
ax.set_xlabel('Frequency [Hz]')
ax.set_ylabel('SNR² contribution per decade [%]')
ax.set_title(f'SNR² contribution per frequency decade — ET — {waveform_model}')
ax.legend(fontsize=9)
ax.grid(linestyle='dotted', linewidth=0.6, which='both')
ax.set_xlim(2, 3000)
plt.tight_layout()
plt.show()
