Imaging analysis#
We start with some preparatory steps. Uncomment these commands or run them on terminal, making sure you have loaded the heasoft environment
user_name = 'samueleronchini'
# root = f'/home/idies/workspace/Storage/{user_name}/persistent'
root = '/Users/sjs8171/Desktop/bat_glimpse'
# %cd {root}
# ! git clone https://github.com/Swift-BAT/NITRATES.git
# %cd NITRATES
# ! git fetch origin
# ! git switch -c acme origin/acme
# ! git branch
# ! pip install -e .
# ! pip install BatAnalysis
Edit here trigid and trigger_time . We start analysing this GRB 241105A https://gcn.nasa.gov/circulars/38091
trigid = '752515599_c0'
triggertime = '2024-11-05T16:06:04.660000'
# root = f'/home/idies/workspace/Storage/{user_name}/persistent'
# root = '/Users/sjs8171/Desktop/bat_glimpse'
# create data directory and work dir if it does not exist
import os
# data_dir = f'{root}/{trigid}/data'
data_dir = f'{root}/data'
if not os.path.exists(data_dir):
os.makedirs(data_dir)
workdir = f'{root}/{trigid}'
if not os.path.exists(workdir):
os.makedirs(workdir)
def filter_data(obsid):
command = f'python -m nitrates.data_prep.mkdb --work_dir {workdir} '
! echo {command}
! {command}
command = '' \
'' \
'python -m nitrates.data_prep.do_data_setup ' \
f'--work_dir {workdir}' \
f' --trig_time {triggertime}' \
f' --evfname {root}/data/{obsid}/bat/event/sw{obsid}bevshsl_uf.evt.gz' \
f' {root}/data/{obsid}/bat/event/sw{obsid}bevshpo_uf.evt.gz' \
f' --dmask {root}/data/{obsid}/bat/hk/sw{obsid}bdecb.hk.gz' \
f' --att_fname {root}/data/{obsid}/auxil/sw{obsid}pat.fits.gz' \
f' --acs_fname {root}/data/{obsid}/auxil/sw{obsid}pat.fits.gz' \
f' --data_dbfname {workdir}/results.db'
! echo {command}
! {command}
We first get data from GUANO, using swifttools. For a complete guide to use GUANO API, see https://www.swift.psu.edu/too_api/index.php?md=Swift GUANO Example Notebook.ipynb
import matplotlib.pyplot as plt
import numpy as np
import astropy.units as u
import os
import batanalysis as ba
import logging
import time
from pathlib import Path
import traceback
from swifttools.swift_too import GUANO, Clock, Data
logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(levelname)s - %(message)s')
import warnings
warnings.filterwarnings("ignore")
def guano_query(triggertime, ext_obsid, workdir, datadir):
if '.' not in triggertime.split('T')[1]:
triggertime = triggertime + '.000Z'
else:
triggertime = triggertime + 'Z'
logging.info(f'Using triggertime: {triggertime}')
guano = GUANO(triggertime=triggertime, successful = False)
logging.info(guano)
for item in guano: # this loop is required if multiple triggers are associated with the same obsid
logging.info(f'running {item}')
if item.data.exposure is None:
logging.error(f'No exposure time found for obsid {item.obsid}. Skipping this obsid.')
exit()
if ext_obsid is not None:
obsid = ext_obsid
else:
obsid = item.obsid
start_time_try = time.time()
event = None
while time.time() - start_time_try < 1800 and event is None:
try:
'''
We need to remove any data or results already existing, since BatAnalysis can have problems
'''
# Remove directories if they exist
obsid_dir = f"{datadir}/{obsid}"
obsid_eventresult_dir = f"{datadir}/{obsid}_eventresult"
if os.path.exists(obsid_dir):
os.system(f"rm -rf {obsid_dir}")
if os.path.exists(obsid_eventresult_dir):
os.system(f"rm -rf {obsid_eventresult_dir}")
data = Data(obsid=obsid, bat=True, outdir=datadir, clobber=True, uksdc=True)
logging.info(data)
ba.datadir(datadir)
event = ba.BatEvent(obsid, is_guano=True)
# filter data using nitrates
filter_data(obsid)
# We use here the filtered files produced by NITRATES
event.detector_quality_file = Path(f'{workdir}/detmask.fits')
event.event_files = Path(f'{workdir}/filter_evdata.fits')
event.attitude_file = Path(f'{workdir}/attitude.fits')
event._parse_event_file()
ba.mosaic._pcodethresh = 0.01
except Exception:
logging.error(f"Failed to create Data and BatEvent for obsid {obsid}: {traceback.format_exc()}")
return event
Data preparation#
event = guano_query(triggertime, None, workdir, data_dir)
2025-12-18 12:22:16,497 - INFO - Using triggertime: 2024-11-05T16:06:04.660000Z
2025-12-18 12:22:17,398 - INFO - +--------------+----------------------------+------------+---------------------+----------------+
| Trigger Type | Trigger Time | Offset (s) | Window Duration (s) | Observation ID |
+--------------+----------------------------+------------+---------------------+----------------+
| GBM GRB | 2024-11-05 16:06:04.660000 | 50.0 | 200.0 | 00018897003 |
+--------------+----------------------------+------------+---------------------+----------------+
2025-12-18 12:22:17,401 - INFO - running +-------------+----------------------------+
| Parameter | Value |
+-------------+----------------------------+
| triggertime | 2024-11-05 16:06:04.660000 |
| triggertype | GBM GRB |
| offset | 50.0 |
| duration | 200.0 |
| quadsaway | 14491126 |
| obsnum | 00018897003 |
| ra | -1.0 |
| dec | -1.0 |
| data | 200.1s of BAT event data |
+-------------+----------------------------+
2025-12-18 12:22:29,709 - INFO - +-------------------------+-----------------------------------------+-----------------------------------------+
| Path | Filename | Description |
+-------------------------+-----------------------------------------+-----------------------------------------+
| 00018897003/auxil | SWIFT_TLE_ARCHIVE.txt.24317.95387196.gz | Auxillary TLE file |
| '' | sw00018897003pat.fits.gz | Auxillary attitude file |
| '' | sw00018897003pjb.par.gz | Auxillary file |
| '' | sw00018897003pob.cat.gz | Auxillary catalog |
| '' | sw00018897003ppr.par.gz | Auxillary file |
| '' | sw00018897003s.mkf.gz | Auxillary file |
| '' | sw00018897003sao.fits.gz | Auxillary file |
| '' | sw00018897003sat.fits.gz | Auxillary attitude file |
| '' | sw00018897003sen.hk.gz | Auxillary housekeeping |
| '' | sw00018897003sti.fits.gz | Auxillary file |
| '' | sw00018897003uat.fits.gz | Auxillary attitude file |
| '' | sw00018897003x.mkf.gz | Auxillary file |
| 00018897003/bat/event | sw00018897003bevshpo_uf.evt.gz | BAT pointed unfiltered event event file |
| '' | sw00018897003bevshsl_uf.evt.gz | BAT slew unfiltered event event file |
| 00018897003/bat/hk | sw00018897003bdecb.hk.gz | BAT housekeeping file |
| '' | sw00018897003bdp.hk.gz | BAT housekeeping file |
| '' | sw00018897003bdqcb.hk.gz | BAT housekeeping file |
| '' | sw00018897003ben.hk.gz | BAT housekeeping file |
| '' | sw00018897003bevtlsp.hk.gz | BAT housekeeping file |
| '' | sw00018897003bevtssp.hk.gz | BAT housekeeping file |
| '' | sw00018897003bgocb.hk.gz | BAT housekeeping file |
| '' | sw00018897003bhd.hk.gz | BAT housekeeping file |
| 00018897003/bat/masktag | sw00018897003bmt00010005_rw.lc.gz | BAT raw mask tagged lightcurve |
| '' | sw00018897003bmt00010009.lc.gz | BAT mask tagged lightcurve |
| '' | sw00018897003bmt00010009_rw.lc.gz | BAT raw mask tagged lightcurve |
| 00018897003/bat/rate | sw00018897003brt1s.lc.gz | BAT rate lightcurve |
| '' | sw00018897003brtmc.lc.gz | BAT rate lightcurve |
| '' | sw00018897003brtms.lc.gz | BAT rate lightcurve |
| '' | sw00018897003brtqd.lc.gz | BAT rate lightcurve |
| 00018897003/bat/survey | sw00018897003bsvpbo019ag0071.dph.gz | BAT survey DPH |
| '' | sw00018897003bsvpbo019eg0072.dph.gz | BAT survey DPH |
| '' | sw00018897003bsvpbo01a7g0074.dph.gz | BAT survey DPH |
+-------------------------+-----------------------------------------+-----------------------------------------+
A save file has been written to /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/batevent.pickle.
Convert the t0 from UTC to MET
t0 = Clock(utctime=triggertime+'Z').met

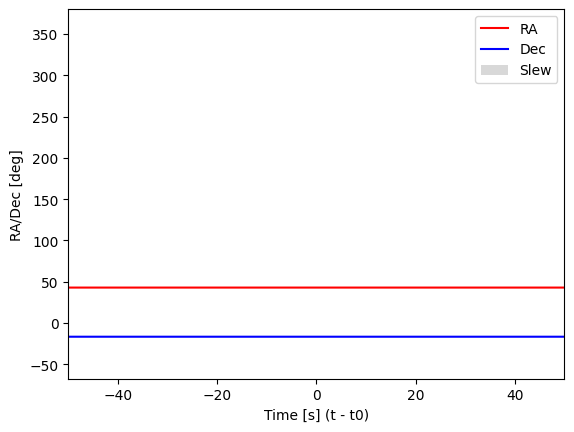

Visualising the attitude info#
plt.plot(event.attitude.time.value-t0, event.attitude.ra, label='RA', color='red')
plt.plot(event.attitude.time.value-t0, event.attitude.dec, label='Dec', color='blue')
# Identify intervals where RA and Dec change
ra_diff = np.diff(event.attitude.ra.value)
dec_diff = np.diff(event.attitude.dec.value)
margin = 1 / 60 # Margin of 1/60 degree, i.e., 1 arcmin
change_indices = np.where((np.abs(ra_diff) > margin) | (np.abs(dec_diff) > margin))[0]
for idx in change_indices:
plt.axvspan(event.attitude.time[idx].value - t0, event.attitude.time[idx + 1].value - t0, color='gray', alpha=0.3, linewidth=0, label='Slew' if idx == change_indices[0] else None)
plt.xlim(-50, 50)
plt.xlabel("Time [s] (t - t0)")
plt.ylabel("RA/Dec [deg]")
plt.legend()
plt.show()
plt.savefig(f'{workdir}/attitude.png', dpi=500)
plt.close()
Check the external position with respect to BAT FOV#
We first need to downloea the Fermi-GBM map:
output_file = os.path.join(workdir, 'ext_loc_fermi.fit')
! curl -o {output_file} https://heasarc.gsfc.nasa.gov/FTP/fermi/data/gbm/triggers/2024/bn241105671/quicklook/glg_healpix_all_bn241105671.fit
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 1549k 100 1549k 0 0 267k 0 0:00:05 0:00:05 --:--:-- 397k
from matplotlib.lines import Line2D
import ligo.skymap.io
import ligo.skymap.plot
import ligo.skymap.postprocess
from matplotlib.colors import LinearSegmentedColormap
def map_ext(fit_file, workdir, ax_globe):
skymap, _ = ligo.skymap.io.fits.read_sky_map(os.path.join(workdir, fit_file), nest=True, distances=False)
skymap_prob = skymap.copy()
white_to_blue = LinearSegmentedColormap.from_list("whiteblue", ["white", "orange"])
ax_globe.imshow_hpx((skymap_prob, 'ICRS'), cmap=white_to_blue, alpha=1.0, nested=True, zorder=0)
cls = 100 * ligo.skymap.postprocess.util.find_greedy_credible_levels(skymap)
ax_globe.contour_hpx((cls, 'ICRS'), nested=True, colors='black',
levels=(50, 90), zorder=0,
linestyles=['dashed', 'solid'],
linewidths=0.7)
loc_line = [
Line2D([0], [0], color='red', linestyle='dotted', linewidth=2, label='External localization', alpha=.0),
Line2D([0], [0], color='black', linestyle='solid', linewidth=2, label='90% C.L.'),
Line2D([0], [0], color='black', linestyle='dashed', linewidth=2, label='50% C.L.')
]
return loc_line
def map_imaging(event, t0, workdir):
fig = plt.figure(figsize=(11, 5))
ax_globe = fig.add_axes([
0.05, # left
0.10, # bottom
0.68, # width
0.80 # height
], projection='astro degrees mollweide')
'''

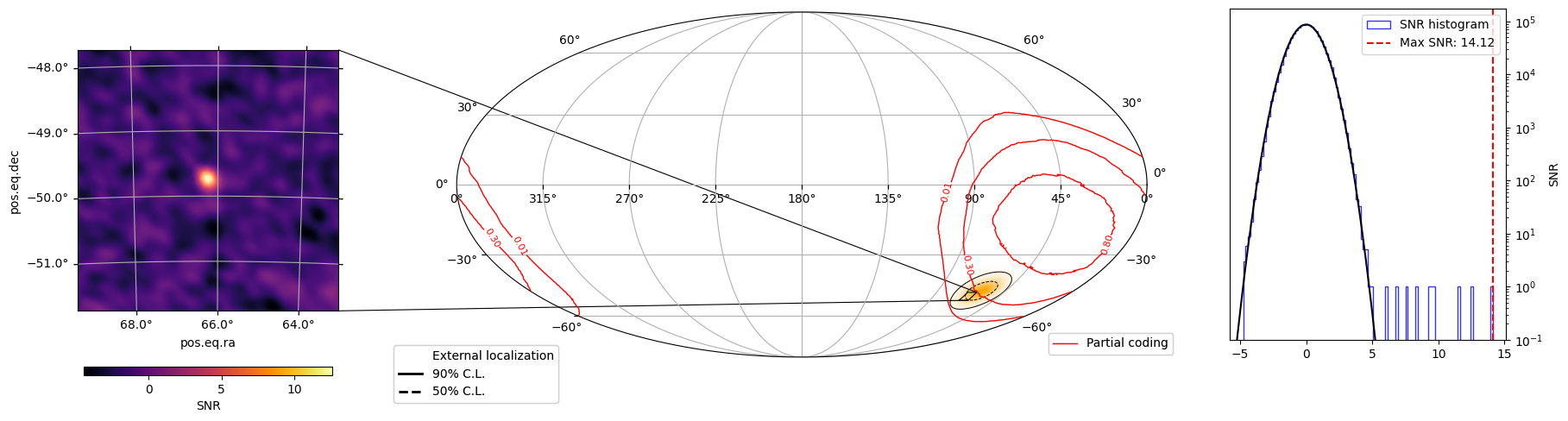

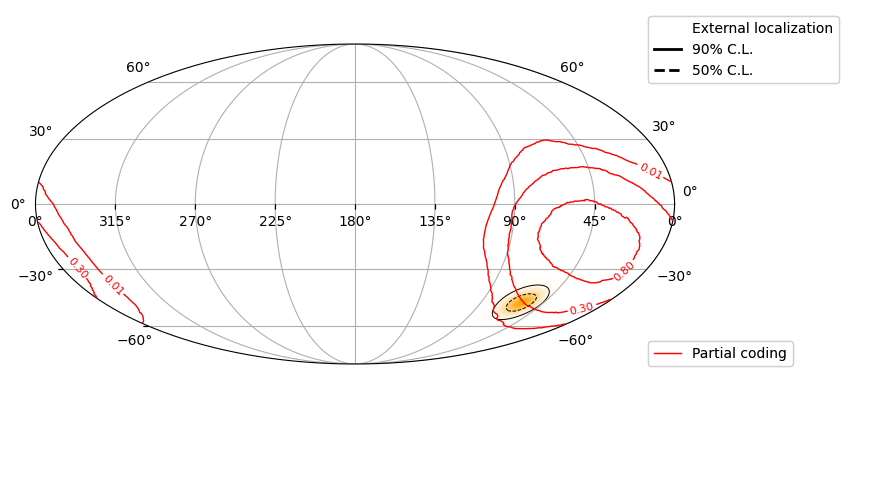

We create a sky image and extract partial coding
'''
skyview = event.create_skyview(timebins=[0,1]*u.s, energybins=[15,350]*u.keV,
is_relative=True, recalc = True, T0=t0)
t = skyview.pcode_img # We extract the partial coding image
hp_proj = t.healpix_projection(coordsys="icrs", nside=1024) # projecting in healpix (from BAT FOV coords to sky coords)
'''
The hp_proj object contains the healpix projection of the sky image.
It is an array that contains [time, sky pixel, energy band].
Since we created a single sky image for a single time bin and a single energy band,
we can extract the first time and first energy band to get the sky map.
'''
plot_quantity_pc = hp_proj.contents[0,:,0]
# Contour partial coding
cs = ax_globe.contour_hpx((plot_quantity_pc, 'ICRS'), nested=False,
colors='red', levels=[0.01,0.3,0.8],
linewidths=1, zorder=2)
'''
External localization
'''
fit_file = next((fname for fname in os.listdir(workdir) if 'ext_loc' in fname), None)
loc_handles = None
if fit_file:
loc_handles = map_ext(fit_file, workdir, ax_globe)
# Here some aestethic adjustments
ax_globe.clabel(cs, inline=True, fmt='%1.2f', fontsize=8)
ax_globe.grid()
ax_globe.set_position([0.08, 0.12, 0.84, 0.64])
# Handles per la legenda del partial coding
red_line = [Line2D([0], [0], color='red', lw=1, label='Partial coding')]
ax_leg_top = fig.add_axes([0.76, 0.55, 0.22, 0.28])
ax_leg_top.axis('off')
if loc_handles is not None:
leg_ext = ax_leg_top.legend(handles=loc_handles, loc='upper left', frameon=True, borderaxespad=0.5)
ax_leg_top.add_artist(leg_ext)
ax_leg_bot = fig.add_axes([0.76, -0.1, 0.22, 0.28])
ax_leg_bot.axis('off')
leg_pc = ax_leg_bot.legend(handles=red_line, loc='upper left', frameon=True, borderaxespad=0.5)
ax_leg_bot.add_artist(leg_pc)
plt.savefig(os.path.join(workdir,'map_imaging.png'), bbox_inches='tight', dpi=300)
plt.show()
plt.close()
map_imaging(event, t0, workdir)

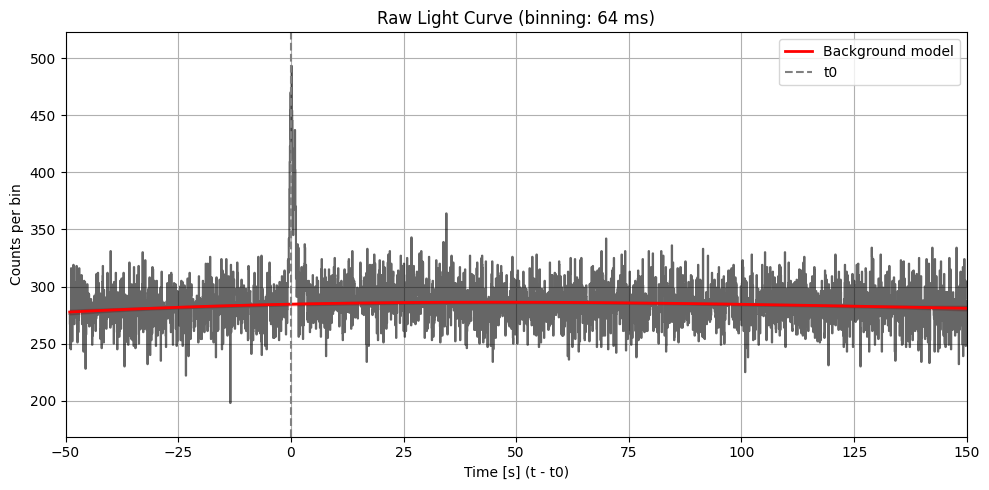

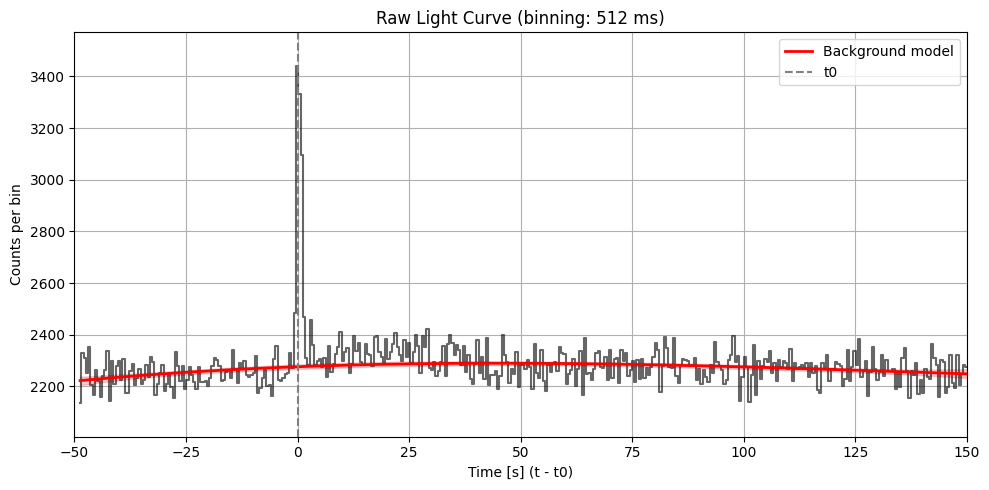

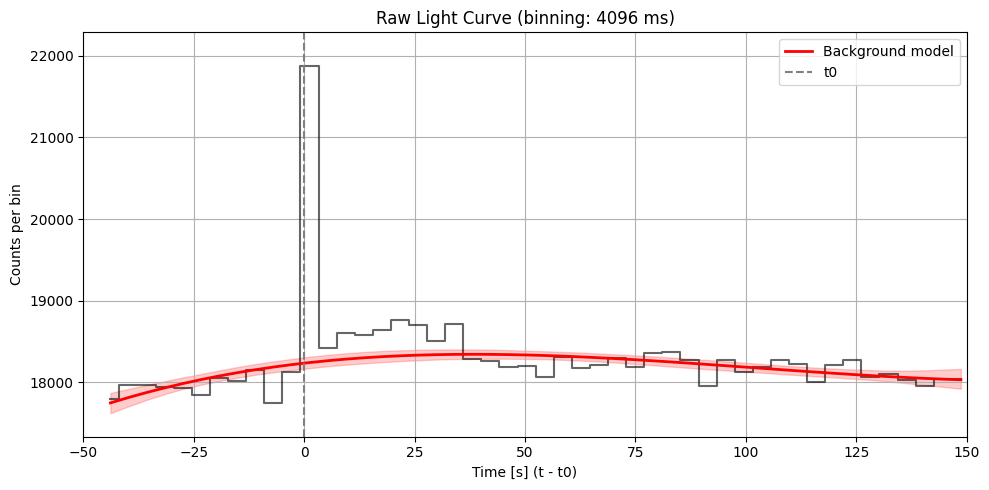

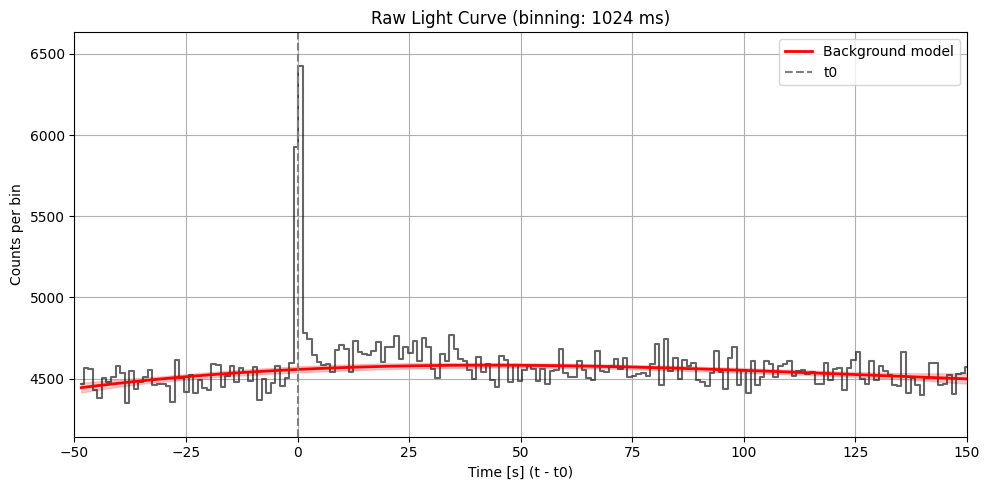

Count Rate light curve#
We define here a function to read event data fits file
import astropy.io.fits as fits
def load_event_times(filename):
with fits.open(filename) as hdul:
for hdu in hdul:
if hdu.name == "EVENTS":
event_times = hdu.data["TIME"]
if hdu.name == "GTI":
gti_start = hdu.data["START"]
gti_stop = hdu.data["STOP"]
return event_times, gti_start, gti_stop
The filtered event data gives Good Time Intervals, namely intervals where data are reliable. The following function creates a mask to select counts only during GTIs
def bin_light_curve(times, bin_size, gti_start, gti_stop, t0):
time_min = t0 - 50 # Start time for binning
time_max = t0 + 150 # End time for binning
# Create bins from time_min to time_max
bins = np.arange(time_min, time_max + bin_size, bin_size)
bin_centers = bins[:-1] + 0.5 * bin_size
# Find mask for good bins (not intersecting with any bad interval)
good_mask = np.ones_like(bin_centers, dtype=bool)
# Vectorized GTI mask: keep bins fully inside any GTI interval
left_edges = bin_centers - 0.5 * bin_size
right_edges = bin_centers + 0.5 * bin_size
# For each bin, check if it is fully inside any GTI interval
# This creates a (n_bins, n_gti) boolean array
in_gti = (left_edges[:, None] >= gti_start[None, :]) & (right_edges[:, None] <= gti_stop[None, :])
good_mask = np.any(in_gti, axis=1)
# Histogram counts for all bins
counts, _ = np.histogram(times, bins=bins)
# Select only good bins and corresponding counts
bin_centers_good = bin_centers[good_mask]
counts_good = counts[good_mask]
return bin_centers_good, counts_good
Background fitting#
! pip install emcee
import emcee
import multiprocessing
from scipy.optimize import curve_fit
from scipy.special import gammaln
from tqdm import tqdm
def poly3_func(x, a, b, c, d):
return a * x**3 + b * x**2 + c * x + d
def model(xx, t0, best_params, norm_val):
return poly3_func(xx - t0, *best_params) * norm_val
def fit_background_linear(bin_centers, counts, t0):
x = bin_centers
'''
Change the following line to define properly the background interval. In this case
we are using -50s to t0-5s and t0+20s to t0+150s for background fitting.
'''
mask = ((x >= t0 - 50) & (x < t0 - 5)) | ((x > t0 + 20) & (x <= t0 + 150))
x_fit = x[mask]
counts_fit = counts[mask]
# Normalize counts by the median of the pre-t0 region for stability
x0 = x_fit - t0
norm_val = np.median(counts_fit)
if norm_val == 0:
norm_val = 1 # Prevent division by zero
y = counts_fit / norm_val
p0 = [0, 0, 0, np.mean(y)]
popt, _ = curve_fit(poly3_func, x0, y, p0=p0)
# Prepare data for MCMC: x0, y, and errors
yerr = np.sqrt(np.abs(y))
yerr[yerr == 0] = 1.0 # Avoid zero errors
def log_prior(theta):
a, b, c, d = theta
# Wide but reasonable priors
if popt[0]-10 < a < popt[0]+10 and popt[1]-10 < b < popt[1]+10 and popt[2]-10 < c < popt[2]+10 and 0.1 * popt[3] < d < 10 * popt[3]:
return 0.0
return -np.inf
def log_likelihood(theta, x, y):
# Poisson log-likelihood for counts data
model = poly3_func(x, *theta)
model = np.clip(model, 1e-6, None) # Avoid log(0)
# Scale back to original counts
model_counts = model * norm_val
y_counts = y * norm_val
# Use gammaln for log-factorial
return np.sum(y_counts * np.log(model_counts) - model_counts - gammaln(y_counts + 1))
def log_probability(theta, x, y):
lp = log_prior(theta)
if not np.isfinite(lp):
return -np.inf
return lp + log_likelihood(theta, x, y)
ndim, nwalkers = 4, 32
# Initial guess near least squares
p0_ls, _ = curve_fit(poly3_func, x0, y, p0=[0, 0, 0, np.mean(y)])
p0 = p0_ls + 1e-4 * np.random.randn(nwalkers, ndim)
ncores = multiprocessing.cpu_count()
sampler = emcee.EnsembleSampler(nwalkers, ndim, log_probability, args=(x0, y), threads=ncores)
# Add a progress bar using tqdm
try:
nsteps = 1000 # Number of MCMC steps, not so many to avoid long runtimes
for _ in tqdm(range(nsteps), desc="MCMC sampling"):
sampler.run_mcmc(p0, 1, progress=False)
p0 = sampler.get_last_sample().coords
except ImportError:
# Fallback to normal run if tqdm is not available
sampler.run_mcmc(p0, 1000, progress=True)
samples = sampler.get_chain(discard=200, flat=True)
# Best fit: parameters with maximum posterior likelihood
log_probs = np.array([log_probability(theta, x0, y) for theta in samples])
best_params = samples[np.argmax(log_probs)]
print( f'Best fit mcmc parameters: {best_params}' )
return best_params, samples, norm_val
Requirement already satisfied: emcee in /Users/sjs8171/opt/anaconda3/envs/bat/lib/python3.10/site-packages (3.1.6)
Requirement already satisfied: numpy in /Users/sjs8171/opt/anaconda3/envs/bat/lib/python3.10/site-packages (from emcee) (2.0.1)
Search of time seeds for the analysis#
For different time bins, we compute the signal to noise ratio (SNR), knowing the level of background. The formula for each time bin i is
\[
SNR_i = \frac{C_i - B_i}{\sqrt{C_i + B_i}}
\]
from matplotlib.patches import Patch
def find_seeds(bin_centers, counts, model_bkg, counts_sub, bin_size_ms, t0, workdir, samples, norm_val):

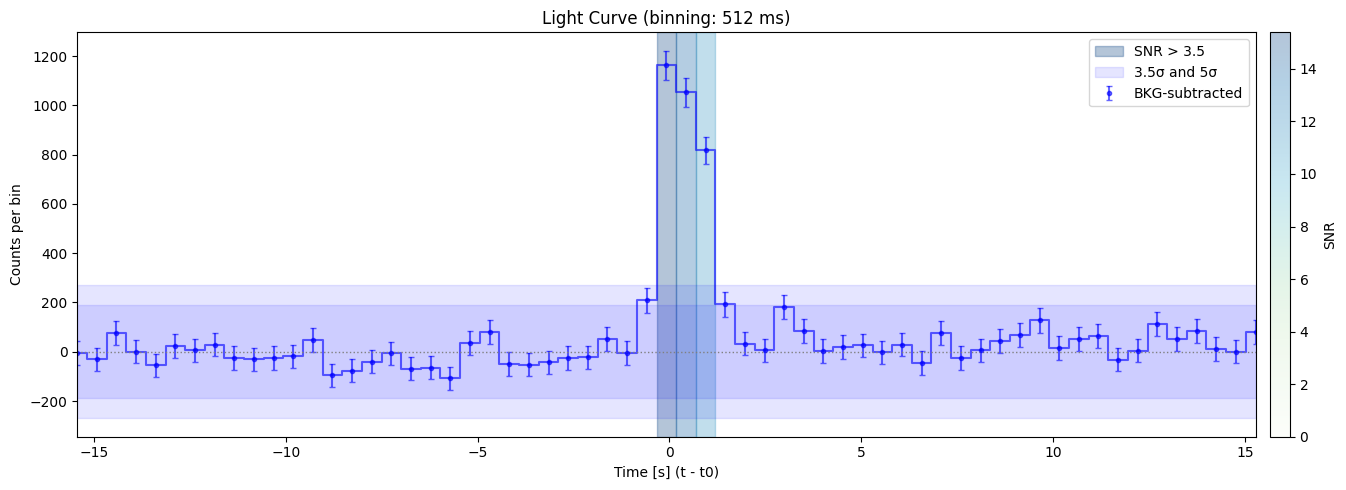

plt.figure(figsize=(15, 5))
x = bin_centers - t0
errors = np.sqrt(counts)
# Find indices where the gap is large
gaps = np.where(np.diff(x) > 1.1*bin_size_ms/1000)[0]
# Split indices into contiguous segments
segments = np.split(np.arange(len(x)), gaps + 1)
# Plot non-background-subtracted light curve (step only)
plt.figure(figsize=(10, 5))
x = bin_centers - t0
for seg in segments:
plt.step(x[seg], counts[seg], where='mid', color='black', alpha=0.6)
# Plot 90% confidence band for background model using MCMC samples
n_samples = 1000
if samples.shape[0] > n_samples:
idx = np.random.choice(samples.shape[0], n_samples, replace=False)
sample_subset = samples[idx]
else:
sample_subset = samples
model_curves = np.array([model(bin_centers, t0, params, norm_val) for params in sample_subset])
lower = np.percentile(model_curves, 5, axis=0)
upper = np.percentile(model_curves, 95, axis=0)
plt.fill_between(x, lower, upper, color='red', alpha=0.2)
plt.plot(x, model_bkg, color='red', linestyle='-', linewidth=2, label='Background model')
plt.axvline(0, color='gray', linestyle='--', label='t0')
plt.title(f"Raw Light Curve (binning: {bin_size_ms} ms)")
plt.xlabel("Time [s] (t - t0)")
plt.ylabel("Counts per bin")
plt.legend()
plt.grid(True)
tmax = 150
plt.xlim(-50, tmax)
mask = (x >= -50) & (x <= tmax)
ymin, ymax = counts[mask].min(), counts[mask].max()
yrange = ymax - ymin
plt.ylim(ymin - 0.1 * yrange, ymax + 0.1 * yrange)
plt.tight_layout()
plt.show()
plt.savefig(os.path.join(workdir, f"light_curve_raw_{bin_size_ms}ms.png"), dpi=300)
plt.close()
plt.figure(figsize=(15, 5))
for seg in segments:
plt.step(x[seg], counts_sub[seg], where='mid', color='blue', alpha=0.6)
# Overlay error bars
plt.errorbar(x, counts_sub, yerr=errors, fmt='o', color='blue', alpha=0.6, label='BKG-subtracted', markersize=3, capsize=2)
snr = np.zeros_like(counts_sub, dtype=float)
mask = (x < -5) | (x > 20)
if np.any(mask):
bkg_std = np.std(counts_sub[mask])
else:
bkg_std = np.std(counts_sub)
with np.errstate(divide='ignore', invalid='ignore'):
snr = counts_sub / (model_bkg + counts)**0.5
snr[snr < 0] = 0
print(f'Max SNR: {snr.max()}')
# Normalize SNR for colormap (clip at 0, max in window for visualization)
snr_max = snr.max()
snr_clipped = np.clip(snr, 0, snr_max)
cmap = plt.get_cmap('GnBu')
norm = plt.Normalize(0, snr_max)
# Prepare to add legend for hatching
hatch_legend_added = False
double_hatch_legend_added = False
for i, xc in enumerate(x):
color = cmap(norm(snr_clipped[i]))
if snr[i] > 3.5:
plt.axvspan(
xc - bin_size_ms/2000.0,
xc + bin_size_ms/2000.0,
color=color,
alpha=0.3,
zorder=1,
label='SNR > 3.5' if not hatch_legend_added else None
)
hatch_legend_added = True
# No shading for SNR <= 3.5
# Add custom legend handles for hatching if not present
handles, labels = plt.gca().get_legend_handles_labels()
if 'SNR > 3.5' not in labels:
handles.append(Patch(facecolor='none', edgecolor='black', hatch='/', label='SNR > 3.5'))
plt.legend(handles=handles, labels=[h.get_label() for h in handles])
# Add color bar for SNR
sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
sm.set_array([])
ax = plt.gca()
cbar = plt.colorbar(sm, pad=0.01, ax=ax, alpha=0.3)
cbar.set_label('SNR')
# Highlight spikes
# for spike_center in bin_centers[spikes[0]]:
# spike_x = spike_center - t0
# plt.axvspan(spike_x - bin_size_ms/2000.0, spike_x + bin_size_ms/2000.0, color='red', alpha=0.3, label='Spikes' if 'Spikes' not in plt.gca().get_legend_handles_labels()[1] else None, zorder=4)

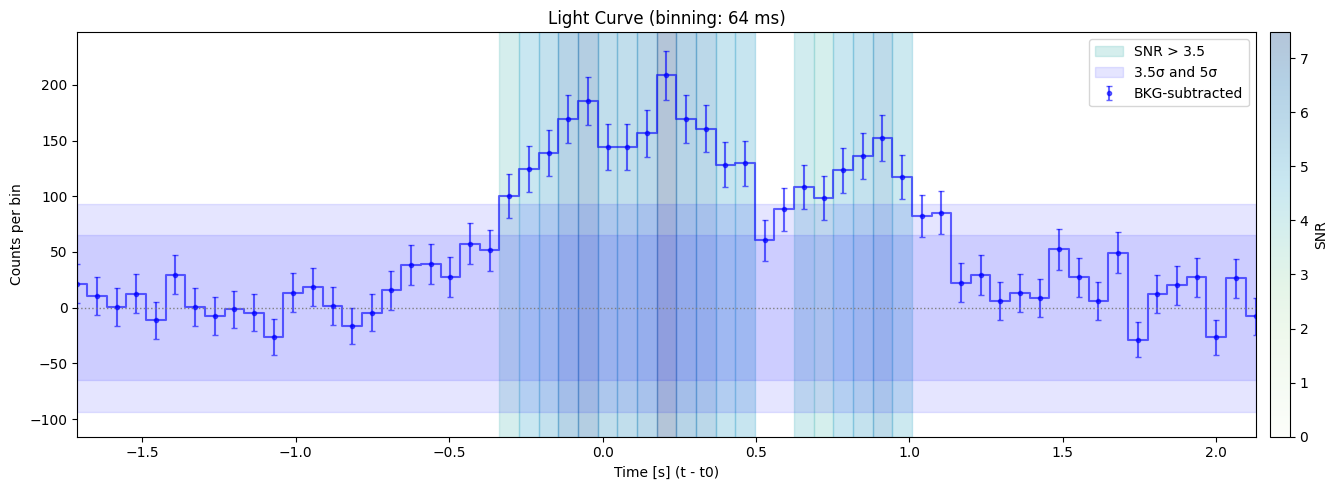

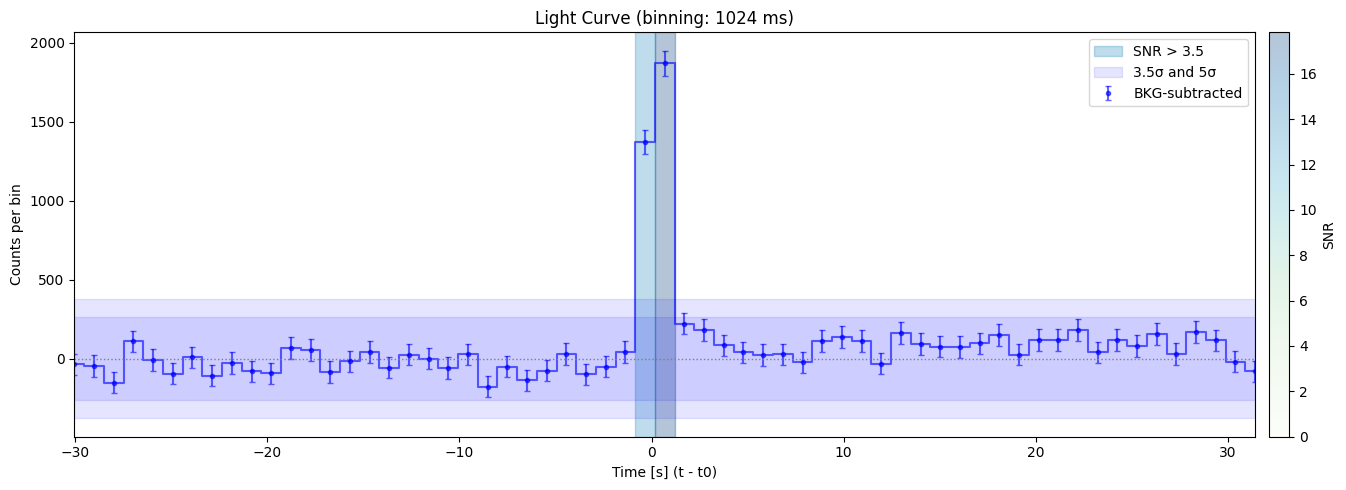

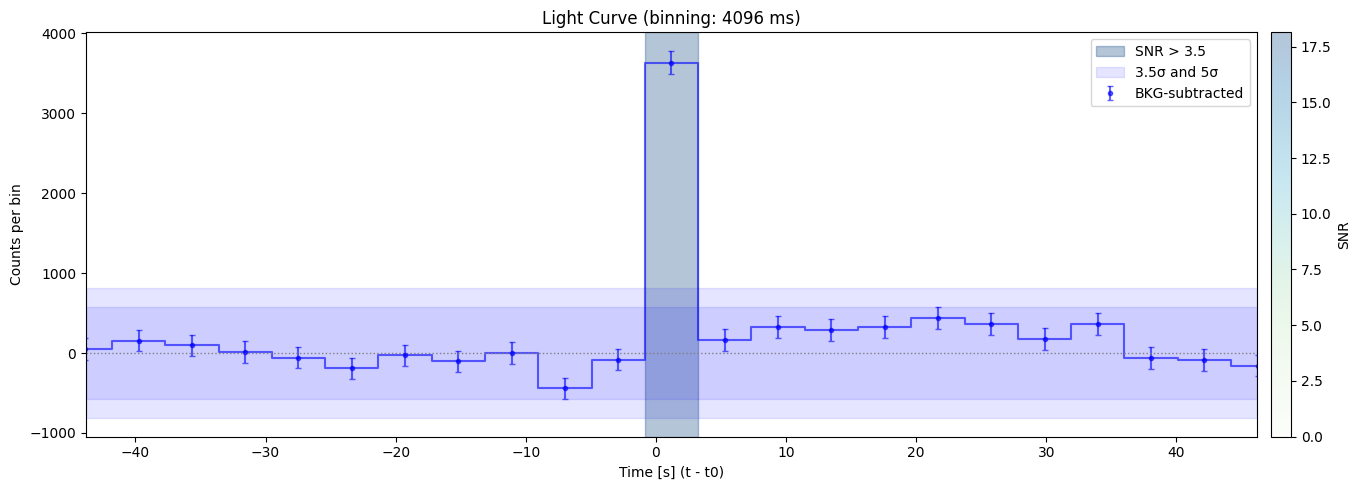

plt.title(f"Light Curve (binning: {bin_size_ms} ms)")
plt.xlabel("Time [s] (t - t0)")
plt.ylabel("Counts per bin")
plt.axhline(0, color='gray', linestyle=':', linewidth=1)
max_snr_val = snr.max()
max_snr_idx = np.where(snr == max_snr_val)[0][0]
t_star = bin_centers[max_snr_idx] - t0 # Time of maximum SNR
window = min(45, 30 * bin_size_ms / 1000.0) # Set window size based on bin size
plt.xlim(t_star - window, t_star + window)
mask = (x >= -window) & (x <= window)
# Add horizontal bands for 3.5 and 5 sigma of background
plt.axhspan(-3.5 * bkg_std, 3.5 * bkg_std, color='blue', alpha=0.1)
plt.axhspan(-5 * bkg_std, 5 * bkg_std, color='blue', alpha=0.1, label='3.5σ and 5σ')
plt.autoscale(axis='y')
plt.legend()
plt.tight_layout()
plt.show()
plt.savefig(os.path.join(workdir, f"light_curve_{bin_size_ms}ms.png"), dpi=300)
if max_snr_val > 4.0:
return bin_centers[max_snr_idx] - t0, max_snr_val
return None, None
def cust_seeds(t0, workdir):
filename = os.path.join(workdir, 'filter_evdata.fits')
#filename = str(event.event_files) # uncomment this to check what happens with the non-filtered event file
event_times, gti_start, gti_stop = load_event_times(filename)
snr_max = 0
seed_max = None
seeds = []
for bin_size_ms in [64, 512, 1024, 4096]:
try:
bin_size = bin_size_ms / 1000.0
bin_centers, counts = bin_light_curve(event_times, bin_size, gti_start, gti_stop, t0)
if len(bin_centers) < 20:
logging.info(f'Not enough bins for bin size {bin_size_ms} ms, skipping...')
continue
best_params, samples, norm_val = fit_background_linear(bin_centers, counts, t0)
model_bkg = model(bin_centers, t0, best_params, norm_val)
counts_sub = counts - model_bkg
# Detect spikes
time_bin, snr_bin = find_seeds(bin_centers, counts, model_bkg, counts_sub, bin_size_ms, t0, workdir, samples, norm_val)
print(f'Bin size: {bin_size_ms} ms, Seed time: {time_bin}, SNR: {snr_bin}', flush=True)
if time_bin is not None or snr_bin is not None:
if snr_bin > 4.0:
seeds.append([time_bin, bin_size_ms, snr_bin])
if snr_bin > snr_max:
seed_max, dur_max, snr_max = time_bin, bin_size_ms, snr_bin
except Exception as e:
# logging.error(f'Error processing bin size {bin_size_ms} ms: {traceback.format_exc()}')
continue
print(f'Max SNR: {snr_max} found at time {seed_max} with duration {dur_max} ms', flush=True)
cust_seeds(t0, workdir)
MCMC sampling: 100%|██████████| 1000/1000 [00:04<00:00, 211.09it/s]
Best fit mcmc parameters: [ 8.70321759e-09 -3.79619004e-06 2.88329446e-04 1.00546461e+00]
<Figure size 1500x500 with 0 Axes>
Max SNR: 7.474911389159172
Bin size: 64 ms, Seed time: 0.20800817012786865, SNR: 7.474911389159172
MCMC sampling: 100%|██████████| 1000/1000 [00:01<00:00, 663.36it/s]
Best fit mcmc parameters: [ 8.60277131e-09 -3.72088249e-06 2.83410358e-04 1.00305922e+00]
<Figure size 640x480 with 0 Axes>
<Figure size 1500x500 with 0 Axes>
Max SNR: 15.390259838136728
Bin size: 512 ms, Seed time: -0.08000338077545166, SNR: 15.390259838136728
MCMC sampling: 100%|██████████| 1000/1000 [00:01<00:00, 773.26it/s]
Best fit mcmc parameters: [ 1.04304029e-08 -4.05552801e-06 2.88254274e-04 1.00340674e+00]
<Figure size 640x480 with 0 Axes>
<Figure size 1500x500 with 0 Axes>
Max SNR: 17.82672006365474
Bin size: 1024 ms, Seed time: 0.688002347946167, SNR: 17.82672006365474
MCMC sampling: 100%|██████████| 1000/1000 [00:01<00:00, 968.83it/s]
Best fit mcmc parameters: [ 1.78614674e-08 -5.43397999e-06 3.37843729e-04 1.00293172e+00]
<Figure size 640x480 with 0 Axes>
<Figure size 1500x500 with 0 Axes>
Max SNR: 18.136174223779157
Bin size: 4096 ms, Seed time: 1.199999451637268, SNR: 18.136174223779157
Max SNR: 18.136174223779157 found at time 1.199999451637268 with duration 4096 ms
<Figure size 640x480 with 0 Axes>
Note
Try to see what happens if you load the unfiltered event data
Imaging#
time_bins = [0, 4] * u.s
energybins = [15, 350] * u.keV
settled_skyview = event.create_skyview(timebins=time_bins, energybins=energybins, is_relative=True, T0=t0, input_dict=dict(aperture="CALDB:DETECTION"))
detected_sources = settled_skyview.detect_sources(input_dict=dict(signifmap=settled_skyview.snr_img_file,bkgvarmap=settled_skyview.bkg_stddev_img_file,clobber="yes", pcodethresh=0.01))
detected_sources
QTable length=194
| CATNUM | NAME | SKYCOORD | ALWAYS_CLEAN | TIME | TIME_STOP | EXPOSURE | IMX | IMY | IMX_ERR | IMY_ERR | IMXPIX | IMYPIX | RA_OBJ_ERR | DEC_OBJ_ERR | ERR_RAD | IMX_FWHM | IMY_FWHM | IMX_FHWM_ERR | IMY_FHWM_ERR | THETA | PHI | GRMCLON | GRMCLAT | COUNTS | COUNTS_ERR | CENT_COUNTS | CONTAM_COUNTS | BKG | BKG_ERR | BKG_VAR | BKG_CELL | BKG_FIT | SNR | CENT_SNR | NPIXSOU | NPIXBKG | DETECT_METHOD | CHI2 | DOF | CHI2_NU | DETECT_STATUS | CONSTRAINT_FLAG | SRC_WINDOW_RAD | BKG_WINDOW_RAD | NGOODPIX | BAT_ZOBJ | PCODEFR | RA_PER_IMX | DEC_PER_IMX | RA_PER_IMY | DEC_PER_IMY | GAINAPP | CLOCKAPP | BTOFFAPP | FFAPP | NFAPP | PCODEAPP | NGPIXAPP | MSKWTAPP | BDISTAPP | BACKAPP | ACOLAPP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| deg,deg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| int16 | str30 | SkyCoord | bool | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | int32 | int32 | int32 | float64 | float64 | float64 | int32 | int32 | int32 | int32 | int32 | float64 | float64 | float64 | float64 | float64 | float64 | int32 | int32 | int32 | int32 | int32 | int32 | int32 | int32 | int32 | int32 | int32 |
| -1 | UNKNOWN | 66.23074895013434,-49.760066496491035 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.07207840967020433 | 0.7810649026451196 | 0.00031171303863942264 | 0.00031135282483172683 | 913.9975665071069 | 848.3645551873155 | 0.011537276420211367 | 0.017859840954786693 | 0.017859840954786693 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 38.11005659289098 | -95.27244930084947 | -37.99214614802073 | -3.2511724497224352 | 0.6470308720901748 | 0.06881469164942942 | 0.6002906628697119 | -0.00702894411971192 | -0.00702894411971192 | 0.023271689128827926 | 0.05979296192526817 | -0.006419851910322905 | -0.00702894411971192 | 10.821187833090823 | 10.039486982096339 | 7 | 2707 | 7 | 123.29484663117101 | 109.0 | 1.1311453819373487 | 0 | 8 | 6 | 30 | 16923 | 10000000.0 | 0.193359375 | -57.91262162802013 | -25.025047740712125 | 28.554343060704923 | -30.405944777101013 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 502 | MRK 1501 | 2.6292005426738214,10.974901288746368 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.7068158670014243 | -0.8798325019505774 | 0.0 | 0.0 | 543.1468780176892 | 57.86707842414086 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 48.45684728057251 | 51.223249701719595 | 41.342368220281294 | 27.953117647746637 | 0.38408425884772135 | 0.14757359320938687 | 0.3842816365712086 | -0.042484761571208604 | -0.042484761571208604 | 0.04982702722021793 | 0.12861254811286926 | -0.009188631549477577 | -0.042484761571208604 | 2.9863669174072527 | 2.987901586662962 | 0 | 0 | 2 | 71.34154286648669 | 111.0 | 0.642716602400781 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.03515625 | -30.241562008370693 | -15.657895460208238 | 2.955561129169837 | -30.721926254528853 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5418 | SWIFT J0517.3+0134 | 79.33499451553868,1.0541638545045076 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.838911304243943 | -0.05049218956546352 | 0.0 | 0.0 | 1278.8249313907927 | 452.6105533134803 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 40.04468216764138 | 176.5556506738778 | 2.890534593001187 | -39.95775498719509 | 0.08566261752325946 | 0.03946762540411502 | 0.08946417035670423 | -0.03160376930739844 | -0.031602842231704224 | 0.013924837035791216 | 0.03374343365430832 | -0.0011487625306472182 | -0.031602842231704224 | 2.5386455451110312 | 2.6513060666332504 | 0 | 0 | 2 | 290.5891473543328 | 297.0 | 0.9784146375566761 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.5546875 | -30.87813226443359 | -13.3137792472926 | 18.65460194494517 | -39.66300723390326 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5133 | 2MASX J23444387-4243124 | 356.1828598974576,-42.720109725462756 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.992382481690264 | 0.4458879859890742 | 0.0 | 0.0 | 407.255259270126 | 689.0123013664444 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 47.41207136023298 | -24.194889703795283 | -24.03151810210895 | 42.18803987046561 | 0.08947616598330183 | 0.05145257362438802 | 0.10196625513785934 | -0.03458344263785934 | -0.03458344263785934 | 0.017321588825485946 | 0.04501110687851906 | -0.0038620559498667717 | -0.03458344263785934 | 1.9878685992946135 | 2.2653576463484253 | 0 | 0 | 2 | 64.60004459507276 | 111.0 | 0.5819823837393943 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.33203125 | -37.78287191380514 | 7.404593809212656 | 1.522435240985942 | -36.94906214946059 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 219 | ESO 297-018 | 24.65479914825102,-40.01140090305095 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.40947538045347276 | 0.3476418700833471 | 0.0 | 0.0 | 684.7486669677043 | 642.1568227314217 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 28.242254982179052 | -40.331035183927185 | -19.169591778884865 | 21.144989477191682 | 0.05451465831885787 | 0.029040251432518687 | 0.05645431672841234 | -0.008358613603412344 | -0.008358613603412344 | 0.009521792755201007 | 0.025880930945277214 | -0.0035148453898727894 | -0.008358613603412344 | 2.1063638875326385 | 2.181309352734632 | 0 | 0 | 2 | 123.76414580128326 | 111.0 | 1.1149923045160655 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.7734375 | -61.0441889854485 | -5.494330999056274 | 15.0176568247673 | -46.65251304913909 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 8008 | IGR J03184-0014 | 49.62044468157205,-0.256430046969631 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.21254332228421205 | -0.2370095235821123 | 0.0 | 0.0 | 980.8288376704849 | 363.85578186079636 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 17.658992966679474 | 131.88484116725016 | 13.333613787888222 | -11.68483062271734 | 0.05470881262942417 | 0.025453771487959635 | 0.0474891175259361 | -0.009891461275936096 | -0.009891461275936096 | 0.008516744765510191 | 0.0224380474537611 | 0.00019182937103323638 | -0.009891461275936096 | 2.4382162816156177 | 2.116454991183999 | 0 | 0 | 2 | 267.9780937119124 | 222.0 | 1.2071085302338396 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.921875 | -50.60102765241936 | -17.263702917047485 | 19.56743660258553 | -49.45507004494587 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 487 | PKS 2300-18 | 345.7620032232108,-18.68999314769623 | False | 752515599.141511 | 752515603.141511 | 4.0 | 1.376488667485734 | -0.18963604037805273 | 0.0 | 0.0 | 224.35959434440474 | 386.5376516906448 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 54.25787096081538 | 7.844144252552133 | 10.737838972089454 | 53.51953052943784 | 0.14189192166019043 | 0.08608050683701961 | 0.1486413281796237 | -0.01582882817962369 | -0.01582882817962369 | 0.027930243788096623 | 0.07750768959522247 | 0.005154812708497047 | -0.01582882817962369 | 1.8306818639700049 | 1.917762340174127 | 0 | 0 | 2 | 90.00939035631244 | 111.0 | 0.8108954086154274 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.1240234375 | -20.896188345886912 | -2.0365432860103283 | -1.7124808096014021 | -33.223080862399 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5151 | CGCG 459-058 | 22.101651590673022,16.459273879202687 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.19010670028381013 | -0.7850407047922929 | 0.0 | 0.0 | 789.1413202153545 | 102.98180988532476 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 38.928887310895334 | 76.3872198914624 | 38.13335664715345 | 8.504612478930417 | 0.10031868275093374 | 0.06829622163414667 | 0.11132625945681464 | 0.07715030304318536 | 0.07715030304318536 | 0.023642248856387046 | 0.058551885187625885 | 0.011330022476613522 | 0.07715030304318536 | 1.7133296806664506 | 1.9013266455909412 | 0 | 0 | 2 | 321.0679712453431 | 269.0 | 1.1935612313953274 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.1484375 | -42.581080741399546 | -16.601431756413376 | 9.835899479782029 | -34.010808139584014 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 250 | 2MASX J04440903+2813003 | 71.03759935132192,28.21680095976791 | False | 752515599.141511 | 752515603.141511 | 4.0 | -1.0087325456397362 | -0.8224165328519469 | 0.0 | 0.0 | 1359.74697982312 | 85.23891650306496 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 52.46339993635712 | 140.8097452270848 | 39.43444407539414 | -37.92202994697758 | 0.3400514384011288 | 0.2118850585546474 | 0.3591105463383969 | -0.1442667963383969 | -0.1442667963383969 | 0.06868729043875509 | 0.1901867389678955 | 0.0005814690957777202 | -0.1442667963383969 | 1.7879871133314462 | 1.8881997151179746 | 0 | 0 | 2 | 251.68511127494344 | 222.0 | 1.1337167174547003 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.0224609375 | -31.2314740540387 | -0.9791758301957998 | 16.54372886150668 | -26.460027811481268 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 5041 | ESO 359- G 019 | 61.25695898305532,-37.18750041203201 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.1309066514284624 | 0.4736607473726417 | 0.0 | 0.0 | 941.9962679343682 | 702.084995700674 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 26.17030453241633 | -105.44931786433577 | -25.34507795319189 | -6.747093885358727 | -0.05986924515664335 | 0.03515817788457934 | -0.05068148420349741 | 0.0030740623284974127 | 0.0030740623284974127 | 0.012100189909738783 | 0.030251797288656235 | 0.0016544150421395898 | 0.0030740623284974127 | -1.9790310170792071 | -1.6753214270182177 | 0 | 0 | 2 | 129.29288072580061 | 111.0 | 1.164800727259465 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.609375 | -55.93875949472249 | -24.935246742074924 | 25.651326247100315 | -41.81843097228466 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5238 | NGC 678 | 27.35359973379599,21.99729978853679 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.043450572203574844 | -0.8843060686717568 | 0.0 | 0.0 | 858.9706618202111 | 55.741015397994374 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 41.52080784862584 | 87.18702164240702 | 41.48652458101756 | 1.864280766506127 | -0.13744204669960594 | 0.11560739223382636 | -0.1607037413982824 | 0.01121445221443941 | 0.04644592889828239 | 0.046120557160603336 | 0.09591926634311676 | -0.006022030953317881 | 0.04644592889828239 | -1.4328930145061403 | -1.6754062820228672 | 0 | 0 | 2 | 209.18485957370487 | 246.0 | 0.8503449576166865 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.0732421875 | -43.25820188455509 | -15.151506097765832 | 11.315070917561343 | -30.388815808635172 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 542 | NGC 1068 | 40.66959961084038,-0.013299973184957315 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.05972016869757972 | -0.29518631630121733 | 0.0 | 0.0 | 908.0785831598702 | 336.1631272220952 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 16.760558897017074 | 101.43732963577592 | 16.445879236014775 | -3.2781413767838234 | -0.03942154192021945 | 0.025410792107972462 | -0.0431479930329972 | 0.0072593211579972 | 0.0072593211579972 | 0.008636208595482501 | 0.022114088758826256 | 0.001202670973725617 | 0.0072593211579972 | -1.782643741288475 | -1.951154013333505 | 0 | 0 | 2 | 83.36217868218715 | 111.0 | 0.7510106187584428 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.8828125 | -51.96846801425181 | -17.2985815365765 | 17.460751976727806 | -49.6435112699329 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 590 | SWIFT J0525.3-4600 | 81.32699850398288,-46.00499813492253 | False | 752515599.141511 | 752515603.141511 | 4.0 | -0.31903341584314665 | 0.8881077717431736 | 0.0 | 0.0 | 1031.500120171665 | 899.260712661357 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 43.340035864449185 | -109.75972275246546 | -41.60852872723626 | -13.416667961831457 | -0.1244874792297674 | 0.11957203235850877 | -0.20710625876341865 | 0.018629696263418663 | 0.018629696263418663 | 0.0396972016682746 | 0.10453096777200699 | -0.010452874936163425 | 0.018629696263418663 | -1.190914825368188 | -1.9812909339473364 | 0 | 0 | 2 | 172.33196211649388 | 222.0 | 0.7762700996238463 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.0654296875 | -40.87364898452961 | -28.929915067976708 | 25.54107689434204 | -26.405744939950182 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5027 | SWIFT J0040.3-0647 | 10.068709551388778,-6.775442588175119 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.5605972248349094 | -0.3551265126088234 | 0.0 | 0.0 | 612.742033602633 | 307.62878518220396 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 33.56882525131719 | 32.35339572759813 | 19.55129943895473 | 27.846349039927816 | -0.05621963697408798 | 0.03345950205698969 | -0.06138703020321459 | 0.022080389578214593 | 0.022080389578214593 | 0.01115750973272032 | 0.029393671080470085 | 0.0005892862682230771 | 0.022080389578214593 | -1.9126442838724476 | -2.0884438025844863 | 0 | 0 | 2 | 199.6686554657367 | 111.0 | 1.7988167159075377 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.5703125 | -40.59946567025463 | -12.508911968467373 | 6.247715838014756 | -45.17824528349479 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 378 | NGC 0612 | 23.490599052688015,-36.49330053148277 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.4109155750919121 | 0.2735605080036812 | 0.0 | 0.0 | 684.0556399439132 | 606.9033490275111 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 26.273093122547618 | -33.65305987814713 | -15.299545025276606 | 21.621023899669733 | -0.062115108205942335 | 0.0276119123949452 | -0.0554694814720733 | 0.0015144033470732956 | 0.0015144033470732956 | 0.009489504177879337 | 0.023800687864422798 | -0.004061383660882711 | 0.0015144033470732956 | -2.609803067868128 | -2.330583123817565 | 0 | 0 | 2 | 100.03803815963528 | 111.0 | 0.9012435870237412 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.8828125 | -58.91699262861039 | -6.145463473217205 | 14.093207230558846 | -48.50127695021911 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5106 | 2MASS J01053879-1416135 | 16.411700477600235,-14.537897565069636 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.4494070503995551 | -0.16527715082007566 | 0.0 | 0.0 | 665.6889048280099 | 398.01548579432335 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 25.586744309571706 | 20.191864281309858 | 9.384843116882374 | 23.91210975423364 | -0.06117287199354459 | 0.02780372495336762 | -0.05653044839444291 | 0.012096854644442915 | 0.012096854644442915 | 0.009422718316579709 | 0.024188769981265068 | 0.0018484308384358883 | 0.012096854644442915 | -2.5289782010794606 | -2.3370534524172766 | 0 | 0 | 2 | 81.05629695299899 | 111.0 | 0.7302369094864773 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.859375 | -47.36147137762714 | -11.400729446719993 | 9.286922576734469 | -50.30252477489228 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 5253 | SWIFT J0034.6-0422 | 8.651792647590732,-4.374386716546788 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.5870589685251432 | -0.41695868673267666 | 0.0 | 0.0 | 600.1414327289789 | 278.1907799534066 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 35.75631828703748 | 35.38427751142766 | 22.634119910641687 | 28.450801064091827 | -0.08352642956106561 | 0.035163738723386316 | -0.09149588719443143 | 0.012882605944431424 | 0.012882605944431424 | 0.011780537525760333 | 0.03095262683928013 | -0.002395646646618843 | 0.012882605944431424 | -2.6985247486351374 | -2.955997488339809 | 0 | 0 | 2 | 107.03223134691139 | 111.0 | 0.9642543364586611 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.4765625 | -38.86882304016126 | -13.00853564512039 | 5.590661352528059 | -43.396905677006714 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
| 867 | MCG -07-48-021 | 356.6831665542768,-38.58927520460067 | False | 752515599.141511 | 752515603.141511 | 4.0 | 0.9741800069458637 | 0.3337665576185057 | 0.0 | 0.0 | 415.9090534467148 | 635.6429375243841 | 0.0 | 0.0 | 0.0 | 0.006529800274994075 | 0.006529800274994075 | 0.0 | 0.0 | 45.84028638009655 | -18.912117184347586 | -18.45728564954418 | 42.74003894351432 | -0.13337604432485636 | 0.04291208548041765 | -0.11571105305673686 | 0.010486443681736861 | 0.010486443681736861 | 0.014024574005751168 | 0.03833043947815895 | -0.0010555963963270187 | 0.010486443681736861 | -3.4796377537193464 | -3.018777103316807 | 0 | 0 | 2 | 64.77625836962018 | 111.0 | 0.5835698952218035 | 0 | 11 | 6 | 30 | 16923 | 10000000.0 | 0.41796875 | -36.83566876588884 | 5.515794676114183 | 1.6625057810415456 | -38.79989367305825 | 1 | 0 | 1 | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 |
This is just a function to read results
def log_imaging(detected_sources):
# Print first 10 rows of detected_sources with selected columns if it's an astropy QTable
try:
# Prepare table header and rows with custom variable names to avoid conflicts
# Print detected_sources as a nicely aligned table (first 10 rows)
_table_header = "{:<3} {:<16} {:>10} {:>10} {:>8} {:>9}".format(
"Idx", "NAME", "RA", "DEC", "SNR", "PCODEFR"
)
_table_rows = []
_ra_unknown = None
_dec_unknown = None
for _idx, _src in enumerate(detected_sources[:10]):
_name = str(_src['NAME'])[:15] # Truncate name if too long
_ra = f"{_src['SKYCOORD'].ra.deg:10.3f}"
_dec = f"{_src['SKYCOORD'].dec.deg:10.3f}"
_snr = f"{_src['SNR']:8.3f}"
_pcodefr = f"{_src['PCODEFR']:10.3f}"
_table_rows.append(
"{:<3} {:<16} {} {} {} {}".format(
_idx, _name, _ra, _dec, _snr, _pcodefr
)
)
# Check if this is the UNKNOWN source
if 'UNKNOWN' in str(_src['NAME']) :
print("Found UNKNOWN source.")
_ra_unknown = _src['SKYCOORD'].ra.deg
_dec_unknown = _src['SKYCOORD'].dec.deg
_table_str = "\n".join([_table_header] + _table_rows)
logging.info("Detected sources (first 10):\n" + _table_str)
return _ra_unknown, _dec_unknown
except Exception as _exc:
logging.error(f"Error printing detected_sources: {traceback.format_exc()}")
return None, None
ra_source, dec_source = log_imaging(detected_sources)
2025-12-18 14:12:13,106 - INFO - Detected sources (first 10):
Idx NAME RA DEC SNR PCODEFR
0 UNKNOWN 66.231 -49.760 10.821 0.193
1 MRK 1501 2.629 10.975 2.986 0.035
2 SWIFT J0517.3+0 79.335 1.054 2.539 0.555
3 2MASX J23444387 356.183 -42.720 1.988 0.332
4 ESO 297-018 24.655 -40.011 2.106 0.773
5 IGR J03184-0014 49.620 -0.256 2.438 0.922
6 PKS 2300-18 345.762 -18.690 1.831 0.124
7 CGCG 459-058 22.102 16.459 1.713 0.148
8 2MASX J04440903 71.038 28.217 1.788 0.022
9 2MASX J01064523 16.689 6.634 1.594 0.348
Found UNKNOWN source.
What happens if we create an image with a time interval much larger than GRB duration
time_bins = [-0.5, 1] * u.s
energybins = [15, 350] * u.keV
settled_skyview = event.create_skyview(timebins=time_bins, energybins=energybins, is_relative=True, T0=t0, input_dict=dict(aperture="CALDB:DETECTION"))
detected_sources = settled_skyview.detect_sources(input_dict=dict(signifmap=settled_skyview.snr_img_file,bkgvarmap=settled_skyview.bkg_stddev_img_file,clobber="yes", pcodethresh=0.01))
log_imaging(detected_sources)
2025-12-18 14:13:51,601 - INFO - Detected sources (first 10):
Idx NAME RA DEC SNR PCODEFR
0 UNKNOWN 66.231 -49.754 14.652 0.193
1 MRK 1501 2.629 10.975 2.386 0.035
2 SWIFT J0336.8-2 54.200 -25.243 2.192 0.992
3 SWIFT J0245.2-0 41.300 -3.817 2.755 0.977
4 CGCG 468-002 NE 77.082 17.363 2.004 0.176
5 PKS 2300-18 345.762 -18.690 2.359 0.124
6 NGC 788 30.277 -6.815 2.016 0.922
7 XY Ari 44.037 19.441 2.044 0.277
8 Mrk 1018 31.567 -0.291 1.747 0.789
9 ESO 297-018 24.655 -40.011 1.602 0.773
Found UNKNOWN source.
(np.float64(66.23076195663347), np.float64(-49.75352693756179))
Note
SNR is lower when you include more background in the image. The choice of the right time bin becomes relevant when the source is barely above the background level
Plotting#
from astropy.modeling.models import Gaussian1D
def map_imaging(ra_s, dec_s, workdir, skyview):
fig = plt.figure()
ax_zoom_rect = plt.axes([-1.2, 0.0, 0.9, 0.9],projection='astro degrees zoom',
center=f'{ra_s}d {dec_s}d', radius='2 deg')
ax_globe = plt.axes(
[-0.3, -0.05, 1.25, 1.25],
projection='astro degrees mollweide',
)
ax_hist = fig.add_axes([1.1, 0.2, 0.5, 0.8]) # [left, bottom, width, height]
t = skyview.snr_img # loading the sky image already done outside
hp_proj = t.healpix_projection(coordsys="icrs", nside=1024) # projecting in healpix (from detector coords to sky coords)
'''
The hp_proj object contains the healpix projection of the sky image.
It is an array that contains [time, sky pixel, energy band].
Since we created a single sky image for a single time bin and a single energy band,
we can extract the first time and first energy band to get the sky map.
'''
snr_map = hp_proj.contents[0,:,0]
ax_zoom_rect.imshow_hpx((snr_map, 'ICRS'), cmap="magma", alpha=1.0, zorder=1)
'''
We load again the partial coding image to overplot the contours
'''
plot_quantity_pc = skyview.pcode_img.healpix_projection(coordsys="icrs", nside=1024).contents[0,:,0]
cs = ax_globe.contour_hpx((plot_quantity_pc, 'ICRS'), nested=False, colors='red', levels=[0.01,0.3,0.8], linewidths=1, zorder=2)
'''
We finally create the histogram of the SNR values
'''
h = skyview.snr_img.contents.flatten()
val, _, _=plt.hist(h, bins=100, alpha=0.8, color='blue', label='SNR histogram', histtype='step')
max_snr_value = np.nanmax(h)
min_snr_value = np.nanmin(h)
ax_hist.axvline(max_snr_value, color='red', linestyle='--', label=f'Max SNR: {max_snr_value:.2f}')
g = Gaussian1D(amplitude=val.max(), stddev=1)
x = np.arange(-30, 30, .01)
ax_hist.plot(x, g(x), 'k-')
# Here some aestethic adjustments
ax_zoom_rect.coords[0].set_major_formatter('d.d') # 3 decimal degrees
ax_zoom_rect.coords[1].set_major_formatter('d.d') # 3 decimal degrees
ax_zoom_rect.grid()
vmin= np.nanmin(snr_map)
vmax=np.nanmax(snr_map)
cmap_custom = plt.cm.inferno
norm = plt.Normalize(vmin=vmin, vmax=vmax)
sm = plt.cm.ScalarMappable(cmap=cmap_custom, norm=norm)
cbar = plt.colorbar(sm, ax=ax_zoom_rect, shrink=0.5, orientation='horizontal', aspect=30, pad=0.15)
cbar.mappable.set_clim(vmin=vmin,vmax=vmax)
cbar.set_label('SNR')
ax_globe.grid()
ax_globe.mark_inset_axes(ax_zoom_rect)
ax_globe.connect_inset_axes(ax_zoom_rect, 'upper right')
ax_globe.connect_inset_axes(ax_zoom_rect, 'lower right')
ax_hist.set_xlabel('')
ax_hist.set_ylabel('Counts')
ax_hist.set_ylabel('SNR')
ax_hist.set_yscale('log')
ax_hist.yaxis.tick_right()
ax_hist.yaxis.set_label_position("right")
ax_hist.set_ylim([0.1,2*val.max()])
ax_hist.set_xlim([min_snr_value-1,max_snr_value+1])
ax_hist.legend(
loc='upper right')
# If we want to implement at some point the ext localization
fit_file = next((fname for fname in os.listdir(workdir) if 'ext_loc' in fname), None)
if fit_file:
loc_handles = map_ext(fit_file, workdir, ax_globe)
leg_ext = ax_globe.legend(handles=loc_handles, loc='lower left', frameon=True, bbox_to_anchor=(-0.1, -0.15), borderaxespad=0.5)
ax_globe.add_artist(leg_ext)
ax_globe.clabel(cs, inline=True, fmt='%1.2f', fontsize=8)
red_line = [Line2D([0], [0], color='red', lw=1, label='Partial coding')]
ax_leg_bot = fig.add_axes([0.76, 0.15, 0.22, 0.28])
ax_leg_bot.axis('off')
fov_legend = ax_leg_bot.legend(handles=red_line, loc='lower left', frameon=True, borderaxespad=0.5)
ax_leg_bot.add_artist(fov_legend)
plt.savefig(os.path.join(workdir,'map_imaging.png'), bbox_inches='tight', dpi=300)
map_imaging(ra_source, dec_source, workdir, settled_skyview)
Looking at the DPI#
from mpl_toolkits.axes_grid1 import make_axes_locatable
def plot_dpi(self, mask_value = None, emin=None, emax=None, tmin=None, tmax=None, plot_rate=False):
"""
This method allows the user to conveniently plot the histogram for a single energy bin and time interval.
Any detectors with 0 counts (due to detectors being off or due to there being no detectors in the specified
DETX and DETY coordinates) are blacked out.
By default, the histogram is binned along the energy and time axes. This behavior can be changed by specifying
emin/emax and/or tmin/tmax. These values should all exist in the ebins and tbins attributes.
:param emin: None or an astropy Quantity array of the beginning of the energy bins
:param emax: None or an astropy Quantity array of the end of the energy bins
:param tmin: None or an astropy Quantity array of the starting time bin edges that the histogram will be
rebinned into
:param tmax: None or an astropy Quantity array of the end time bin edges that the histogram will be
rebinned into
:param plot_rate: Boolean to denote if the count rate should be plotted. The histogram gets divided by the
exposure time of the plotted histogram
:return: matplotlib figure and axis for the plotted histogram
"""
if emin is None and emax is None:
plot_emin = self.ebins["E_MIN"].min()
plot_emax = self.ebins["E_MAX"].max()
elif emin is not None and emax is not None:
plot_emin = emin
plot_emax = emax
else:
raise ValueError(
"emin and emax must either both be None or both be specified."
)
plot_e_idx = np.where(
(self.ebins["E_MIN"] >= plot_emin) & (self.ebins["E_MAX"] <= plot_emax)
)[0]
if tmin is None and tmax is None:
plot_tmin = self.tbins["TIME_START"].min()
plot_tmax = self.tbins["TIME_STOP"].max()
elif tmin is not None and tmax is not None:
plot_tmin = tmin
plot_tmax = tmax
else:
raise ValueError(
"tmin and tmax must either both be None or both be specified."
)
plot_t_idx = np.where(
(self.tbins["TIME_START"] >= plot_tmin)
& (self.tbins["TIME_STOP"] <= plot_tmax)
)[0]
# now start to accumulate the DPH counts based on the time and energy range that we care about
plot_data = self.contents[plot_t_idx, :, :, :]
if len(plot_t_idx) > 0:
plot_data = plot_data.sum(axis=0)
else:
raise ValueError(
f"There are no DPH time bins that fall between {plot_tmin} and {plot_tmax}"
)
plot_data = plot_data[:, :, plot_e_idx]
if len(plot_e_idx) > 0:
plot_data = plot_data.sum(axis=-1)
else:
raise ValueError(
f"There are no DPH energy bins that fall between {plot_emin} and {plot_emax}"
)
if plot_rate:
# calculate the total exposure
exposure_tot = np.sum(self.exposure[plot_t_idx])
plot_data /= exposure_tot
# set any 0 count detectors to nan so they get plotted in black
# this includes detectors that are off and "space holders" between detectors where the value is 0
plot_data[plot_data == 0] = np.nan
mask = (plot_data.value < mask_value[0]) | (plot_data.value > mask_value[1])
plot_data[mask] = np.nan
data = plot_data.flatten()
data = data[data != 0]
data = data.value
# Create the figure with two subplots: main image and histogram
fig, (ax, ax_hist) = plt.subplots(
1, 2,
figsize=(12, 5), # wider figure
gridspec_kw={'width_ratios': [4, 2]} # more space for histogram
)
# Main image panel
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="5%", pad=0.05)
cmap = plt.colormaps.get_cmap("viridis")
cmap.set_bad(color="k")
im = ax.imshow(plot_data.value, origin="lower", interpolation="none", cmap=cmap)
fig.colorbar(im, cax=cax, orientation="vertical", label=plot_data.unit)
ax.set_ylabel("DETY")
ax.set_xlabel("DETX")
# Histogram panel
# Compute bin edges so that bins are centered at 1, 2, 3, ... (integers)
min_center = 0
max_center = int(np.ceil(np.nanmax(data)))
bin_centers = np.arange(min_center, max_center + 1)
bins = bin_centers - 0.5
bins = np.append(bins, bins[-1] + 1)
ax_hist.hist(data, bins=bins, color="gray", histtype="step", edgecolor="black", label="Counts")
ax_hist.set_xlabel("Counts per detector")
ax_hist.set_yscale("log")
ax_hist.grid(True)
mean_val = np.nanmean(data)
ax_hist.axvline(mean_val, color="red", linestyle="--", label="Mean = {:.2f}".format(mean_val))
ax_hist.legend()
plt.tight_layout(rect=[0, 0, 1, 0.8]) # Make space for suptitle
return fig, ax
time_bins=[0,3]*u.s
energybins = [15, 350] * u.keV
event_dpi=event.create_dpi(timebins=time_bins, energybins=energybins, T0=t0, is_relative = True)

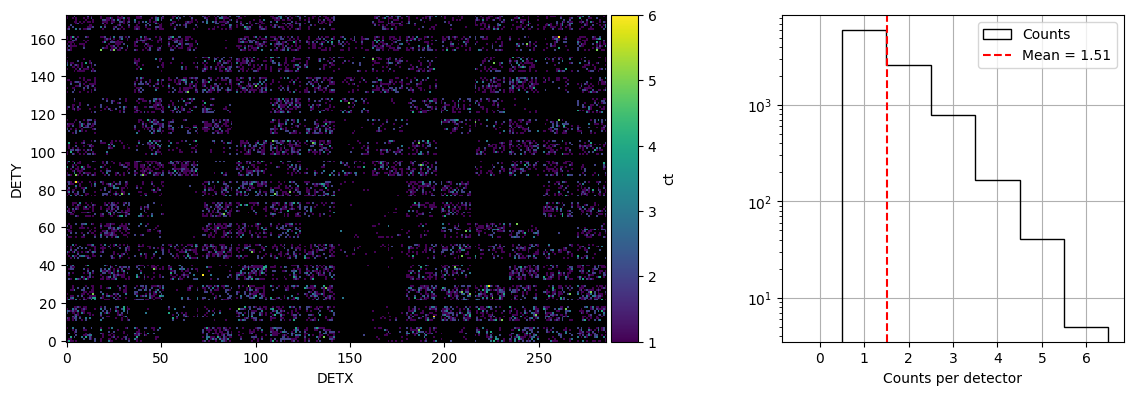

f = plot_dpi(event.dpis[-1], mask_value = [0, np.inf])
plt.show()
plt.savefig(os.path.join(workdir, 'dpi.png'), dpi=300, bbox_inches='tight')
<Figure size 640x480 with 0 Axes>
time_bins=[10,13]*u.s
logging.info(f'Plotting DPI plot for time bins {time_bins}')
energybins = [15, 350] * u.keV
event_dpi=event.create_dpi(timebins=time_bins, energybins=energybins, T0=t0, is_relative = True)
f = plot_dpi(event.dpis[-1], mask_value = [0, np.inf])
plt.show()
2025-12-18 12:23:41,287 - INFO - Plotting DPI plot for time bins [10. 13.] s
Light curve after applying mask weighting#
event.apply_mask_weighting(ra=ra_source*u.deg, dec=dec_source*u.deg)
Under the hood apply_mask_weighting does the following
input_dict = dict(
infile=str(self.event_files),
attitude=str(self.attitude_file),
detmask=str(self.detector_quality_file),
ra=ra.value,
dec=dec.value,
auxfile=str(temp_auxil_raytracing_file),
clobber="YES",
)
batmaskwtevt_return = self._call_batmaskwtevt(input_dict)

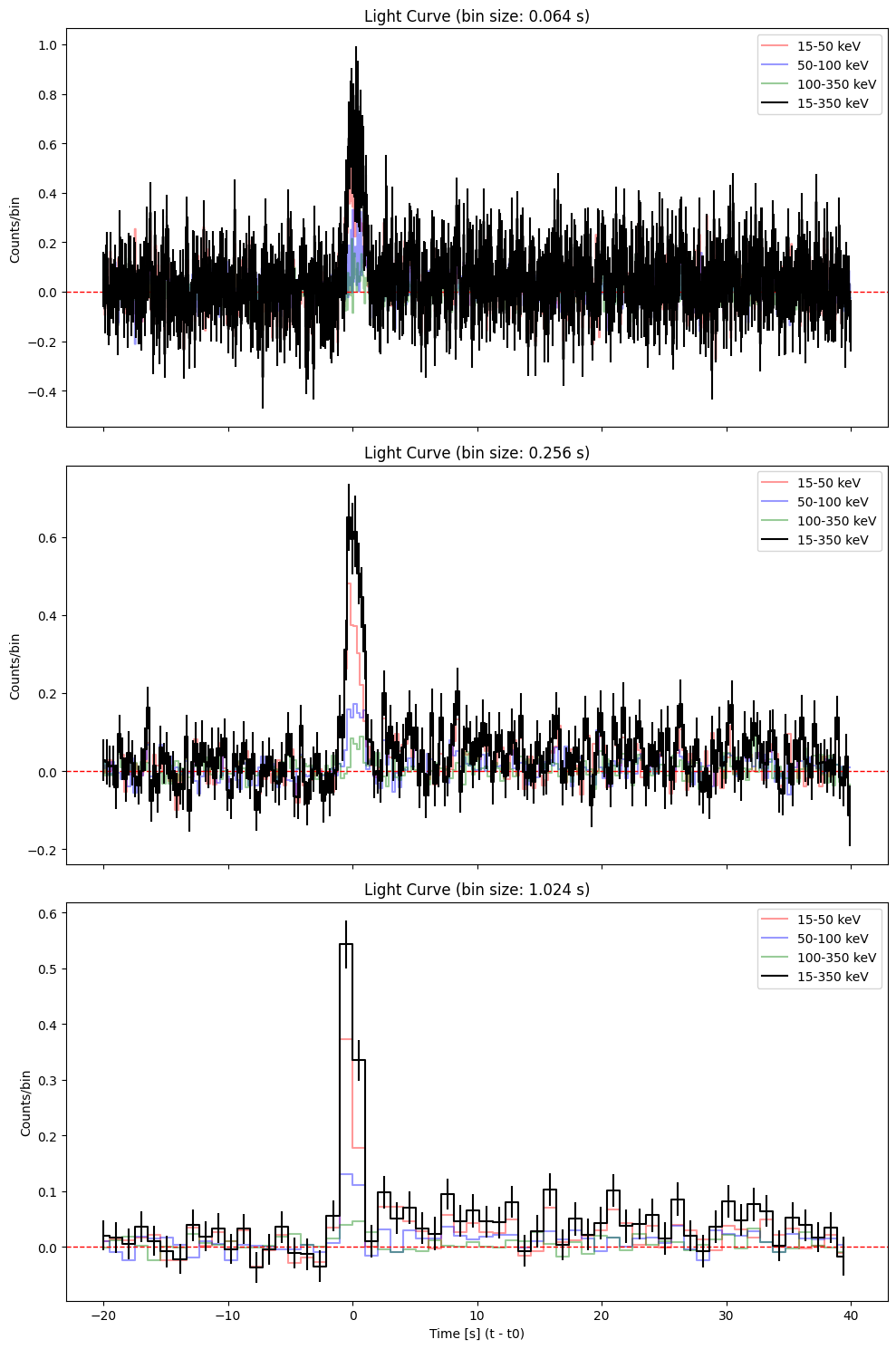

def plot_lc(event, t0, deltat, workdir, pipe):
lc = event.create_lightcurve(energybins=[15, 50, 100, 350] * u.keV) # By default the mask weighting is applied
color = ['red','blue', 'green', 'black']
label = ['15-50 keV', '50-100 keV', '100-350 keV', '15-350 keV']
bin_sizes = [0.064, 0.256, 1.024] # in seconds
fig, axes = plt.subplots(len(bin_sizes), 1, figsize=(10, 5 * len(bin_sizes)), sharex=True)
for i, bin_size in enumerate(bin_sizes):
ax = axes[i]
lc.set_timebins(
timebinalg="uniform",
timedelta=np.timedelta64(int(bin_size*1000), 'ms'),
tmin=-5*deltat*u.s,
tmax=10*deltat*u.s,
T0=t0,
is_relative = True)
lc.set_energybins(energybins=[15, 50, 100, 350]* u.keV)
# Now plot each sub-band
for n in range(0,4):
time = lc.data['TIME'][:].value
counts = lc.data['RATE'][:,n].value
errors = lc.data['ERROR'][:,n].value
if n==3:
ax.errorbar(time-t0, counts, yerr=errors, color=color[n], ls='', zorder=n, alpha=1.0)
ax.step(time-t0, counts, where='mid', color=color[n], label=label[n], zorder=n, alpha=1.0)
else:
ax.step(time-t0, counts, where='mid', color=color[n], label=label[n], zorder=n, alpha=0.4)
ax.set_title(f"Light Curve (bin size: {bin_size:.3f} s)")
ax.axhline(y=0.0, color='r', linestyle='--', linewidth=1)
ax.set_ylabel("Counts/bin")
ax.legend()
axes[-1].set_xlabel("Time [s] (t - t0)")
plt.tight_layout()
plt.show()
plt.savefig(os.path.join(workdir, f'lc_{pipe}.png'), dpi=300)
plt.close()
delta_t = 4 # typical duration in seconds of the event
plot_lc(event, t0, delta_t, workdir, 'imaging')

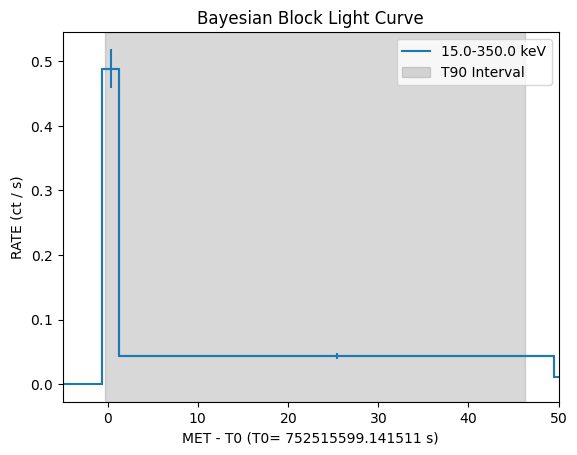

Bayesian blocks light curve#
lc=event.create_lightcurve(energybins=[15, 350] * u.keV, recalc=True)
lc.set_timebins(timebinalg="bayesian", save_durations=True)
bayesian_tstart = lc.tbins["TIME_START"]
bayesian_tstop = lc.tbins["TIME_STOP"]
t90_start = lc.tdurs['T90']['TSTART']
t90_stop = lc.tdurs['T90']['TSTOP']
mask = (bayesian_tstop >= t90_start) & (bayesian_tstart <= t90_stop)
lc.plot(T0=t0, plot_relative=True)
# Highlight T90 interval
plt.axvspan(t90_start.value - t0, t90_stop.value - t0, color='gray', alpha=0.3, label='T90 Interval')
plt.legend()
plt.xlim(-5, 50)
plt.title("Bayesian Block Light Curve")
Text(0.5, 1.0, 'Bayesian Block Light Curve')
print(f"The t_90 duration is {lc.tdurs['T90']['TSTOP'] - lc.tdurs['T90']['TSTART']:.2f}")
print(f"Emission start time: {lc.tdurs['T90']['TSTART'].value - t0:.2f} seconds relative to t0")
print(f"Emission stop time: {lc.tdurs['T90']['TSTOP'].value - t0:.2f} seconds relative to t0")
The t_90 duration is 46.59 s
Emission start time: -0.26 seconds relative to t0
Emission stop time: 46.33 seconds relative to t0
We just discovered that, even if the burst looks short, there is a long tail, also known as extended emission
https://academic.oup.com/mnras/article/544/1/548/8256866
Here I just copied and pasted the _call_battblocks from BatAnalysis, trying to edit by hand some setup variables of the ‘battblocks’
try:
import heasoftpy.swift as hsp
import heasoftpy as hsp_core
except ModuleNotFoundError as err:
# Error handling
print(err)
def _call_battblocks_my(self, output_file=None, save_durations=True):
"""
This method calls battblocks for bayesian blocks binning of a lightcurve. This rebins the lightcurve into a 64 ms
energy integrated energy bin (based on current ebins) to calculate the bayesian block time bins and then
restores the lightcurve back to the prior energy binning.
:param output_file: Path object of the file that will be created by battblocks with the good time intervals of
interest
:param save_durations: Boolean determining if battblocks should calculate durations such as T90, T50, background
durations, etc and save those to a file. This file, if created, will be read in and saved to the tdurs attribute.
This file will be saved to the gti subdirectory of the event results directory.
:return: output_file Path object, HEASoftpy results object from battblocks call
"""
if len(self.ebins["INDEX"]) > 1:
recalc_energy = True
# need to rebin to a single energy and save current energy bins
old_ebins = self.ebins.copy()
# see if we have the enrgy integrated bin included in the arrays:
if (self.ebins["E_MIN"][0] == self.ebins["E_MIN"][-1]) and (
self.ebins["E_MAX"][-2] == self.ebins["E_MAX"][-1]):
self.set_energybins(emin=self.ebins["E_MIN"][-1], emax=self.ebins["E_MAX"][-1])
calc_energy_integrated = True # this is for recalculating the lightcurve later in the method
else:
self.set_energybins(emin=self.ebins["E_MIN"][0], emax=self.ebins["E_MAX"][-1])
calc_energy_integrated = False
else:
recalc_energy = False
# set the time binning to be 64 ms. This time binning will be over written anyways so dont need to restore anything
self.set_timebins()
# get the set of default values which we will modify
# stop
test = hsp_core.HSPTask('battblocks')
input_dict = test.default_params.copy()
if output_file is None:
# use the same filename as for the lightcurve file but replace suffix with gti and put it in gti subdir instead of lc
new_path = self.lightcurve_file.parts
new_name = self.lightcurve_file.name.replace("lc", "gti")
output_file = Path(*new_path[:self.lightcurve_file.parts.index('lc')]).joinpath("gti").joinpath(new_name)
# modify some of the inputs here
input_dict["infile"] = str(
self.lightcurve_file) # this should ideally be a 64 ms lightcurve of a single energy bin
input_dict["outfile"] = str(output_file)
# these are used by batgrbproducts:
input_dict["bkgsub"] = "YES"
input_dict["clobber"] = "YES"
input_dict["tlookback"] = 10
# input_dict["nspill"] = 256
# input_dict["(tpeak"] = 0.01
# input_dict["(ncp prior"] = 2
input_dict["(coalescefrac"] = 0.0
if save_durations:
dur_output_file = output_file.parent / output_file.name.replace("gti", "dur")
input_dict["durfile"] = str(dur_output_file)
try:
battblocks_return = hsp.battblocks(**input_dict)
except Exception as e:
print(e)
raise RuntimeError(f"The call to Heasoft battblocks failed with inputs {input_dict}.")
# reset the energy bins to what they were before
if recalc_energy:
if calc_energy_integrated:
min_ebins = old_ebins["E_MIN"][:-1]
max_ebins = old_ebins["E_MAX"][:-1]
else:
min_ebins = old_ebins["E_MIN"]
max_ebins = old_ebins["E_MAX"]
self.set_energybins(emin=min_ebins, emax=max_ebins,
calc_energy_integrated=calc_energy_integrated)
if battblocks_return.returncode != 0:
raise RuntimeError(f'The call to Heasoft battblocks failed with message: {battblocks_return.output}')
if save_durations:
self._parse_durations(dur_output_file)
return output_file, battblocks_return
_call_battblocks_my(lc)
(PosixPath('/Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/gti/t_uniform_dt_0.064_1chan.gti'),
---------------------
:: Execution Result ::
---------------------
> Return Code: 0
> Output:
******************************************
battblocks v1.18
------------------------------------------
Input Data: /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/lc/t_uniform_dt_0.064_1chan.lc
Output GTI: /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/gti/t_uniform_dt_0.064_1chan.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 10 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 46.592 s +/- 10.2472 s
Estimated T50 duration: 25.728 s +/- 6.54335 s
Estimated Peak Interval: MET 752515599.48799992 +/- 0.500000 s
Estimated background rate 1: 0.001 near MET 752515201.280000 s
Estimated background rate 2: 0.010 near MET 752515699.392000 s
Estimated total duration: 50.112 s (for data selection)
(from MET 752515598.560000 to MET 752515648.672000)
Estimated total fluence: 2.554683 count
Created GTI with 4 entries
------------------------------------------
> Parameters:
infile : /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/lc/t_uniform_dt_0.064_1chan.lc
outfile : /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/gti/t_uniform_dt_0.064_1chan.gti
durfile : /Users/sjs8171/Desktop/bat_glimpse/data/00018897003_eventresult/gti/t_uniform_dt_0.064_1chan.dur
nspill : 128
timedel : 0.0001
ncp_prior : 6.0
gaussian : INDEF
txx : 0.0
tlookback : 10
tpeak : 1.0
bkgsub : yes
burst_tstart: INDEF
burst_tstop: INDEF
coalescefrac: 0.05
timecol : TIME
countscol : INDEF
errcol : ERROR
expocol : INDEF
hduclas3 : INDEF
durerrmeth: TOTVAR
diagfile : NONE
breakfile : NONE
global_tstart: INDEF
global_tstop: INDEF
clobber : yes
chatter : 2
history : yes
mode : ql)
print(f"The t_90 duration is {lc.tdurs['T90']['TSTOP'] - lc.tdurs['T90']['TSTART']:.2f}")
print(f"Emission start time: {lc.tdurs['T90']['TSTART'].value - t0:.2f} seconds relative to t0")
print(f"Emission stop time: {lc.tdurs['T90']['TSTOP'].value - t0:.2f} seconds relative to t0")
The t_90 duration is 46.59 s
Emission start time: -0.26 seconds relative to t0
Emission stop time: 46.33 seconds relative to t0
Spectrum during the \(t_{90}\) interval#
We are going to create here the spectrum. We just need to select the time interval
spectrum_t90=event.create_pha(tstart=lc.tdurs['T90']['TSTART'],
tstop=lc.tdurs['T90']['TSTOP'],
recalc=True)

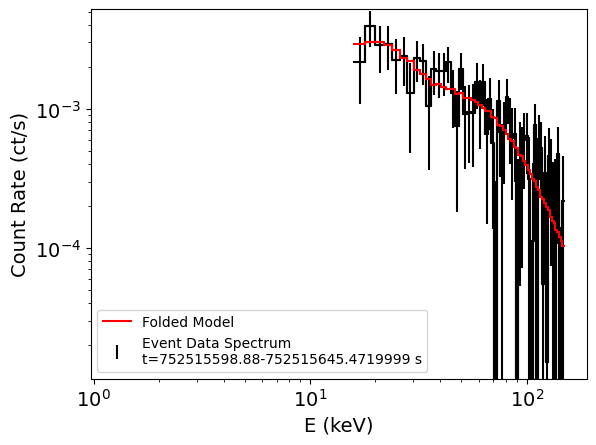

Once we have the spectrum, we can also fit. The ‘fit_spectrum’ function calls XSPEC and save the results
ba.fit_spectrum(spectrum_t90, generic_model="cflux*po", # simple power-law with flux normalization
setPars={1:"15,-1", 2:"150,-1",3:-9, 4:"-1",5:".001,-1"},
use_cstat=False, fit_iterations=10000)
1 spectrum in use
Spectral Data File: t_752515598.88-752515645.4719999_80chan.pha Spectrum 1
Net count rate (cts/s) for Spectrum:1 5.661e-02 +/- 4.842e-03
Assigned to Data Group 1 and Plot Group 1
Noticed Channels: 1-80
Telescope: SWIFT Instrument: BAT Channel Type: PI
Exposure Time: 46.59 sec
Using fit statistic: chi
Using Response (RMF) File t_752515598.88-752515645.4719999_80chan.rsp for Source 1
Fit statistic : Chi-Squared 55.93 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 55.93 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 9.72e-01 with 78 degrees of freedom
Current data and model not fit yet.
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -9.00000 +/- 0.0
4 2 powerlaw PhoIndex -1.00000 +/- 0.0
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 234.42 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 234.42 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 1.47e-17 with 78 degrees of freedom
Current data and model not fit yet.
Default fit statistic is set to: Chi-Squared
This will apply to all current and newly loaded spectra.
Fit statistic : Chi-Squared 234.42 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 234.42 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 1.47e-17 with 78 degrees of freedom
Current data and model not fit yet.
4 channels (1-4) ignored in spectrum # 1
18 channels (63-80) ignored in spectrum # 1
Fit statistic : Chi-Squared 221.20 using 58 bins.
Test statistic : Chi-Squared 221.20 using 58 bins.
Null hypothesis probability of 1.71e-21 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
Fit statistic : Chi-Squared 221.20 using 58 bins.
Test statistic : Chi-Squared 221.20 using 58 bins.
Null hypothesis probability of 1.71e-21 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
Parameters
Chi-Squared |beta|/N Lvl 3:lg10Flux 4:PhoIndex
186.738 3.41455 0 -8.10469 -0.945633
53.3625 18.931 0 -7.54966 1.78005
41.0945 29.9641 -1 -7.42252 1.41058
41.0247 3.69184 -2 -7.41681 1.42770
41.0247 0.0174237 -3 -7.41674 1.42722
==============================
Variances and Principal Axes
3 4
9.9249E-04| 0.9943 0.1069
1.7664E-02| -0.1069 0.9943
------------------------------
========================
Covariance Matrix
1 2
1.183e-03 -1.773e-03
-1.773e-03 1.747e-02
------------------------
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -7.41674 +/- 3.43970E-02
4 2 powerlaw PhoIndex 1.42722 +/- 0.132186
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 41.02 using 58 bins.
Test statistic : Chi-Squared 41.02 using 58 bins.
Null hypothesis probability of 9.33e-01 with 56 degrees of freedom
Parameters defined:
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -7.41674 +/- 3.43970E-02
4 2 powerlaw PhoIndex 1.42722 +/- 0.132186
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 41.02 using 58 bins.
Test statistic : Chi-Squared 41.02 using 58 bins.
Null hypothesis probability of 9.33e-01 with 56 degrees of freedom
*** Parameter 1 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
*** Parameter 2 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
Parameter Confidence Range (2.706)
3 -7.47736 -7.36324 (-0.0606158,0.053499)
Parameter Confidence Range (2.706)
4 1.20991 1.64452 (-0.217318,0.21729)
*** Parameter 5 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
We can access the results which are saved in the form of a dictionary
params = spectrum_t90.spectral_model['parameters']
lg10_flux = params['lg10Flux']
flux = 10 ** lg10_flux['val']
flux_lo = 10 ** lg10_flux['lolim']
flux_hi = 10 ** lg10_flux['hilim']
print(f"Converted flux: best fit = {flux:.3e}, interval = ({flux_lo:.3e}, {flux_hi:.3e})")
# photon index
photon_index = params['PhoIndex']['val']
photon_index_lo = params['PhoIndex']['lolim']
photon_index_hi = params['PhoIndex']['hilim']
print(f"Photon index: best fit = {photon_index:.3f}, interval = ({photon_index_lo:.3f}, {photon_index_hi:.3f})")
Converted flux: best fit = 3.831e-08, interval = (3.332e-08, 4.333e-08)
Photon index: best fit = 1.427, interval = (1.210, 1.645)
Time resolved spectra using Bayesian blocks#
We can also repeat the spectral fit but done for each temporal bin we define. In this case we are using the bayesian blocks output, but we can use any time bin, defining start and stop times of them
bayesian_spectra = event.create_pha(
tstart=bayesian_tstart[mask],
tstop=bayesian_tstop[mask],
recalc=True)
bayesian_tstop[mask]
\[[7.525156 \times 10^{8},~7.5251565 \times 10^{8}] \; \mathrm{s}\]
For the fit here we can also use multiple CPUs, if available. Since we are inside a jupyter notebook, we need to to that in a ‘parallel_backend’. If you run it outside jupyter, there is no need for that.
import os
from joblib import parallel_backend
joblib_tmp = os.path.join(workdir, "joblib_tmp")
os.makedirs(joblib_tmp, exist_ok=True)
os.environ["JOBLIB_TEMP_FOLDER"] = joblib_tmp
n_procs = min(len(bayesian_spectra), multiprocessing.cpu_count())
with parallel_backend(
'loky',
n_jobs=n_procs,
max_nbytes=None,
inner_max_num_threads=1,
temp_folder=joblib_tmp
):
output_bayesian_spectra = ba.parallel.batspectrum_TTE_analysis(
bayesian_spectra,
generic_model="cflux*po",
setPars={1:"15,-1", 2:"150,-1", 3:-9, 4:"-1", 5:".001,-1"},
nprocs=n_procs,
use_cstat=False,
fit_iterations=10000,
recalc=True
)
1 spectrum in use
Spectral Data File: t_752515600.416-752515648.672_80chan.pha Spectrum 1
Net count rate (cts/s) for Spectrum:1 4.168e-02 +/- 4.927e-03
Assigned to Data Group 1 and Plot Group 1
Noticed Channels: 1-80
Telescope: SWIFT Instrument: BAT Channel Type: PI
Exposure Time: 48.26 sec
Using fit statistic: chi
Using Response (RMF) File t_752515600.416-752515648.672_80chan.rsp for Source 1
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -9.00000 +/- 0.0
4 2 powerlaw PhoIndex -1.00000 +/- 0.0
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 163.21 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 163.21 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 5.62e-08 with 78 degrees of freedom
Current data and model not fit yet.
Default fit statistic is set to: Chi-Squared
This will apply to all current and newly loaded spectra.
Fit statistic : Chi-Squared 163.21 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 163.21 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 5.62e-08 with 78 degrees of freedom
Current data and model not fit yet.
1 spectrum in use
Spectral Data File: t_752515598.56-752515600.4159999_80chan.pha Spectrum 1
Net count rate (cts/s) for Spectrum:1 4.815e-01 +/- 3.243e-02
Assigned to Data Group 1 and Plot Group 1
Noticed Channels: 1-80
Telescope: SWIFT Instrument: BAT Channel Type: PI
Exposure Time: 1.856 sec
Using fit statistic: chi
Using Response (RMF) File t_752515598.56-752515600.4159999_80chan.rsp for Source 1
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -9.00000 +/- 0.0
4 2 powerlaw PhoIndex -1.00000 +/- 0.0
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 300.35 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 300.35 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 7.89e-28 with 78 degrees of freedom
Current data and model not fit yet.
Default fit statistic is set to: Chi-Squared
This will apply to all current and newly loaded spectra.
Fit statistic : Chi-Squared 300.35 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number: 1
Test statistic : Chi-Squared 300.35 using 80 bins.
***Warning: Chi-square may not be valid due to bins with zero variance
in spectrum number(s): 1
Null hypothesis probability of 7.89e-28 with 78 degrees of freedom
Current data and model not fit yet.
4 channels (1-4) ignored in spectrum # 1
18 channels (63-80) ignored in spectrum # 1
Fit statistic : Chi-Squared 153.93 using 58 bins.
Test statistic : Chi-Squared 153.93 using 58 bins.
Null hypothesis probability of 4.48e-11 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
Fit statistic : Chi-Squared 153.93 using 58 bins.
Test statistic : Chi-Squared 153.93 using 58 bins.
Null hypothesis probability of 4.48e-11 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
Parameters
Chi-Squared |beta|/N Lvl 3:lg10Flux 4:PhoIndex
138.205 2.64763 0 -8.35834 -0.399148
4 channels (1-4) ignored in spectrum # 1
122.568 10.5618 0 -8.20020 0.539740
103.757 18.5083 0 -8.05993 1.05581
61.0311 26.7225 0 -7.54817 2.05345
18 channels (63-80) ignored in spectrum # 1
41.3928 40.638 -1 -7.55271 1.51653
Fit statistic : Chi-Squared 277.33 using 58 bins.
Test statistic : Chi-Squared 277.33 using 58 bins.
Null hypothesis probability of 4.65e-31 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
41.0569 2.75164 -2 -7.53450 1.42048
Fit statistic : Chi-Squared 277.33 using 58 bins.
Test statistic : Chi-Squared 277.33 using 58 bins.
Null hypothesis probability of 4.65e-31 with 56 degrees of freedom
Current data and model not fit yet.
Warning: renorm - no variable model to allow renormalization
41.0536 0.207145 -3 -7.53523 1.43034
==============================
Variances and Principal Axes
3 4
1.5732E-03| 0.9943 0.1064
Parameters
Chi-Squared |beta|/N Lvl 3:lg10Flux 4:PhoIndex
2.7716E-02| -0.1064 0.9943
------------------------------
========================
Covariance Matrix
1 2
1.869e-03 -2.765e-03
-2.765e-03 2.742e-02
------------------------
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -7.53523 +/- 4.32304E-02
4 2 powerlaw PhoIndex 1.43034 +/- 0.165592
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 41.05 using 58 bins.
Test statistic : Chi-Squared 41.05 using 58 bins.
Null hypothesis probability of 9.33e-01 with 56 degrees of freedom
274.7 0.463216 1 -8.38606 -0.583545
271.781 1.97407 1 -8.20589 0.215838
266.367 3.66656 1 -8.03551 0.915934
226.726 6.78376 0 -6.78121 4.21954
118.251 160.652 0 -6.83669 3.11802
62.3988 14.6682 -1 -6.66467 1.48489
44.3242 54.4272 -2 -6.52856 1.69774
*** Parameter 1 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
43.3621 16.4575 -3 -6.54358 1.64077
*** Parameter 2 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
Parameter Confidence Range (2.706)
43.3613 0.394858 -4 -6.54390 1.63863
==============================
Variances and Principal Axes
3 4
7.8090E-04| 0.9905 0.1374
1.4820E-02| -0.1374 0.9905
------------------------------
========================
Covariance Matrix
1 2
1.046e-03 -1.911e-03
-1.911e-03 1.455e-02
------------------------
========================================================================
Model cflux<1>*powerlaw<2> Source No.: 1 Active/On
Model Model Component Parameter Unit Value
par comp
1 1 cflux Emin keV 15.0000 frozen
2 1 cflux Emax keV 150.000 frozen
3 1 cflux lg10Flux cgs -6.54390 +/- 3.23416E-02
4 2 powerlaw PhoIndex 1.63863 +/- 0.120643
5 2 powerlaw norm 1.00000E-03 frozen
________________________________________________________________________
Fit statistic : Chi-Squared 43.36 using 58 bins.
Test statistic : Chi-Squared 43.36 using 58 bins.
Null hypothesis probability of 8.91e-01 with 56 degrees of freedom
*** Parameter 1 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
*** Parameter 2 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
Parameter Confidence Range (2.706)
3 -7.61233 -7.46914 (-0.0771955,0.0659956)
Parameter Confidence Range (2.706)
4 1.16611 1.69258 (-0.263371,0.263104)
*** Parameter 5 is not a variable model parameter and no confidence range will be calculated.
3 -6.60053 -6.49336 (-0.0566242,0.0505463)
Parameter Confidence Range (2.706)
Parameter Confidence Range (2.706)
4 1.44423 1.8413 (-0.194426,0.202647)
*** Parameter 5 is not a variable model parameter and no confidence range will be calculated.
Parameter Confidence Range (2.706)
The condition here is 2.9165351491186855e-08 [2.4415839980767538e-08, 3.395180105356154e-08] 3 4.767980536397e-09 1.4861409881995856e-08
The condition here is 2.8582373578106247e-07 [2.5088466404429285e-07, 3.2110318427351297e-07] 3 3.510926011461006e-08 1.804959554372323e-07

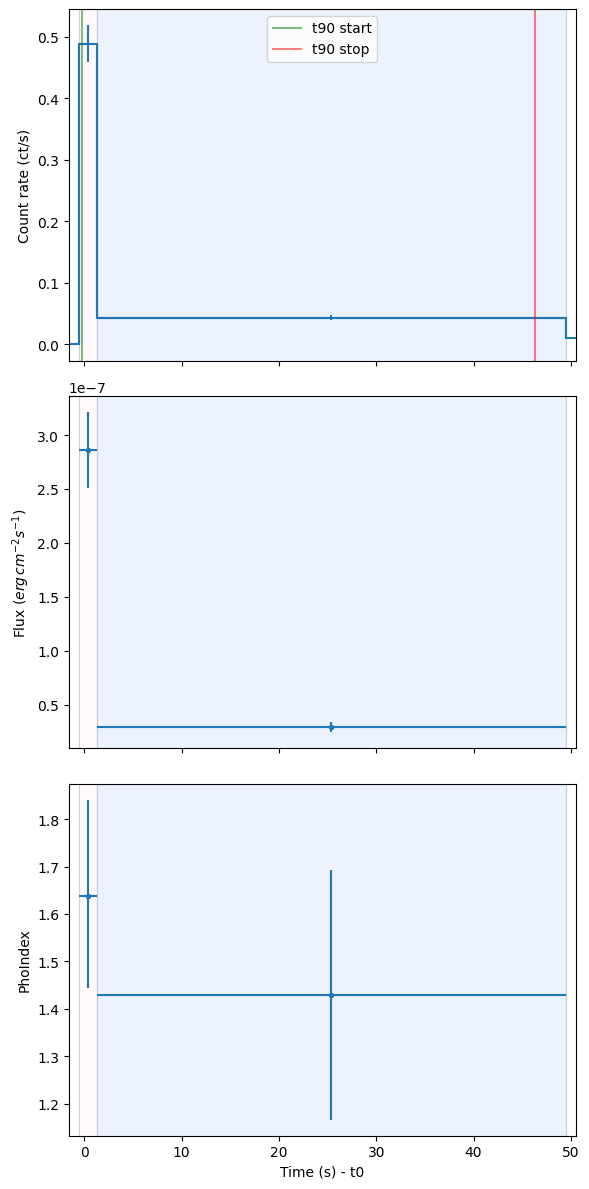

We finally concatenate spectra
from batanalysis.batlib import concatenate_spectrum_data
spect_data = concatenate_spectrum_data(output_bayesian_spectra, ["flux", "phoindex"])
and plot
fig, axes = plt.subplots(3, sharex=True, figsize=(6, 12))
start_times = lc.tbins["TIME_START"]-t0*u.s
end_times = lc.tbins["TIME_STOP"]-t0*u.s
mid_times = lc.tbins["TIME_CENT"]-t0*u.s
bin_start_rel = (spect_data["TIME_START"] - t0 * u.s).to_value(u.s)
bin_stop_rel = (spect_data["TIME_STOP"] - t0 * u.s).to_value(u.s)
bin_colors = ["#ffe9e9", "#b7cefc"]
for idx, (start, stop) in enumerate(zip(bin_start_rel, bin_stop_rel)):
color = bin_colors[idx % len(bin_colors)]
for ax in axes:
ax.axvspan(start, stop, color=color, alpha=0.25, zorder=0)
edges_rel = np.unique(np.concatenate([bin_start_rel, [bin_stop_rel[-1]]]))
for edge in edges_rel:
for ax in axes:
ax.axvline(edge, color="0.75", linewidth=0.8, alpha=0.7, zorder=1)
rate = lc.data['RATE']
rate_error = lc.data["ERROR"]
line = axes[0].plot(start_times, rate, ds='steps-post')
line_handle, = axes[0].plot(end_times, rate, ds='steps-pre', color=line[-1].get_color())
flux = spect_data['flux']
flux_lolim = spect_data['flux_lolim']
flux_hilim = spect_data['flux_hilim']
axes[0].errorbar(mid_times, rate, yerr=rate_error, ls='None', color=line[-1].get_color())
axes[0].set_ylabel('Count rate (ct/s)')
axes[0].axvline(lc.tdurs['T90']['TSTART'].value-t0, color='green', alpha=0.5, label="t90 start")
axes[0].axvline(lc.tdurs['T90']['TSTOP'].value-t0, color='red', alpha=0.5, label="t90 stop")
axes[0].legend()
spec_param = 'flux'
y = spect_data[spec_param]
# get the errors
lolim = spect_data[f"{spec_param}_lolim"]
hilim = spect_data[f"{spec_param}_hilim"]
yerr = np.array([lolim, hilim])
y_upperlim = spect_data[f"{spec_param}_upperlim"]
# find where we have upper limits and set the error to 1 since the nan error value isnt
# compatible with upperlimits
yerr[:, y_upperlim] = 0.2 * y[y_upperlim]
tbin_cent = 0.5 * (spect_data["TIME_START"] + spect_data["TIME_STOP"])
tbin_err = 0.5 * (spect_data["TIME_STOP"] - spect_data["TIME_START"])
axes[1].errorbar(
tbin_cent-t0*u.s,
y,
xerr=tbin_err,
yerr=yerr,
uplims=y_upperlim,
linestyle="None",
marker="o",
markersize=3,
zorder=3,
) # color="red"
axes[1].set_ylabel('Flux ($erg \, cm^{-2} s^{-1}$)')
spec_param = 'phoindex'
y = spect_data[spec_param]
# get the errors
lolim = spect_data[f"{spec_param}_lolim"]
hilim = spect_data[f"{spec_param}_hilim"]
yerr = np.array([lolim, hilim])
y_upperlim = spect_data[f"{spec_param}_upperlim"]
axes[2].errorbar(
tbin_cent-t0*u.s,
y,
xerr=tbin_err,
yerr=yerr,
uplims=y_upperlim,
linestyle="None",
marker="o",
markersize=3,
zorder=3,
) # color="red"
axes[2].set_ylabel('PhoIndex')
plt.xlim(min(spect_data["TIME_START"].value - t0) - 1, max(spect_data["TIME_STOP"].value - t0) + 1)
plt.xlabel('Time (s) - t0')
plt.tight_layout()
