Usage and example of use

Run the tool and inspect outputs

This page shows command usage plus a full worked example for GW170817, including all generated plots and tables.

Basic command

tdr --output-dir <output_directory> --t0 <trigger_time> [options]

Required inputs

  • --output-dir: directory where outputs are written.
  • --t0: trigger time in GPS seconds or ISO UTC.
  • Localization input: either --ra/--dec or --skymap-file.

Command options

Option Description
--ra, --dec Localization coordinates in degrees.
--skymap-file HEALPix FITS localization sky map.
--iota-min, --iota-max Custom inclination range. If omitted, defaults are 0-45 and 0-90 deg. The inclination angle is the angle between the orbital plane and the line of sight. It is distributed uniformly in cos(iota) from iota_min to iota_max.
--snr-threshold Detection threshold used for D90 (default 8.5).
--snr-type mf (matched-filter SNR) or opt (optimal SNR).

Example of use: GW170817

Example run using the GW170817 sky map: gw170817/glg_healpix_all_bn170817529_v00.fit.

tdr \
  --output-dir /Users/sjs8171/Desktop/gw_tdr_results/GW170817 \
  --t0 2017-08-17T12:41:04.444 \
  --skymap-file /Users/sjs8171/Desktop/gw_tdr/gw170817/glg_healpix_all_bn170817529_v00.fit \
  --snr-threshold 8.5 \
  --snr-type mf

Detected IFOs: H1, L1, V1.

Default iota ranges: 0-45 deg and 0-90 deg.

All plots returned by the code

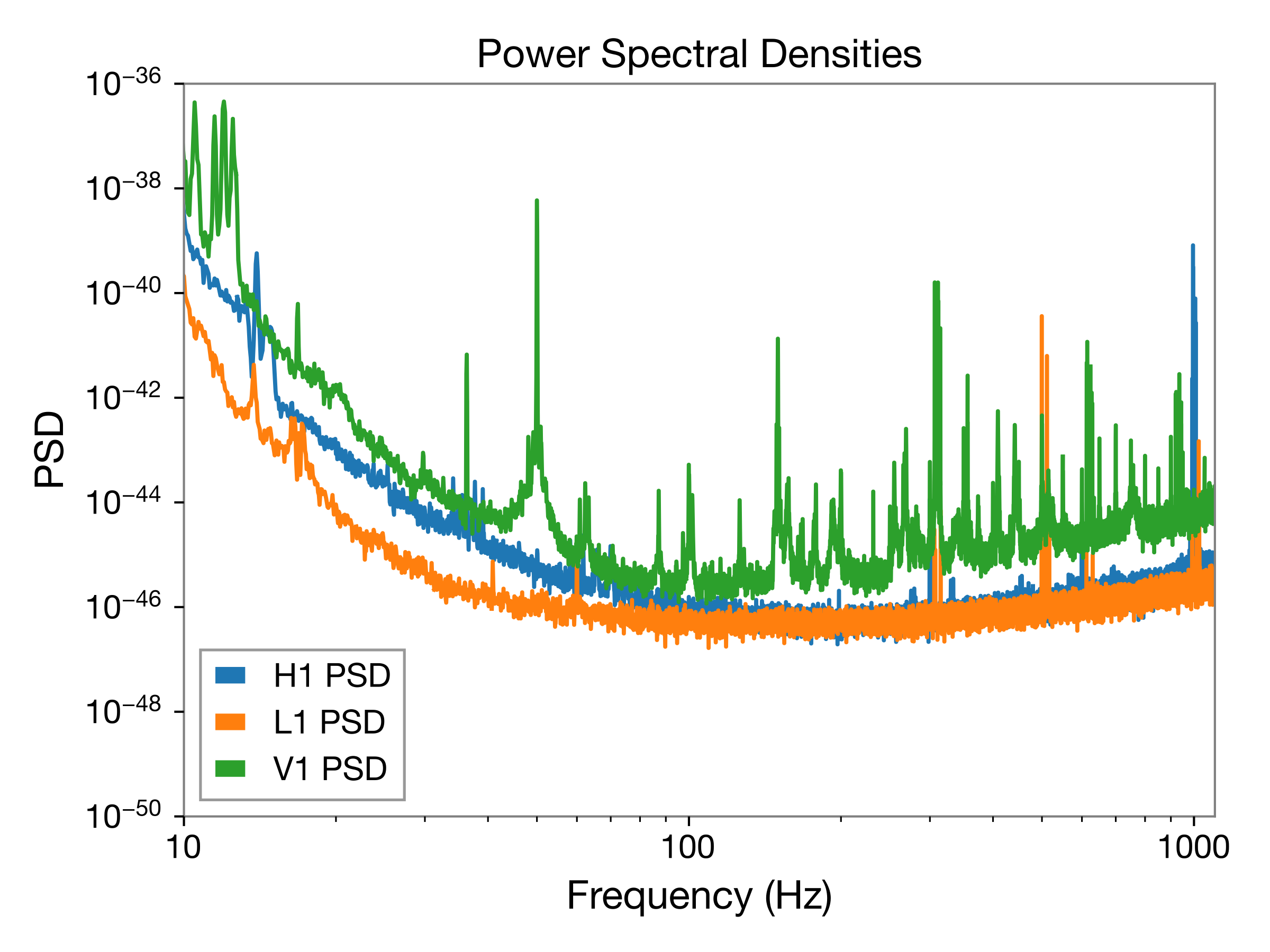

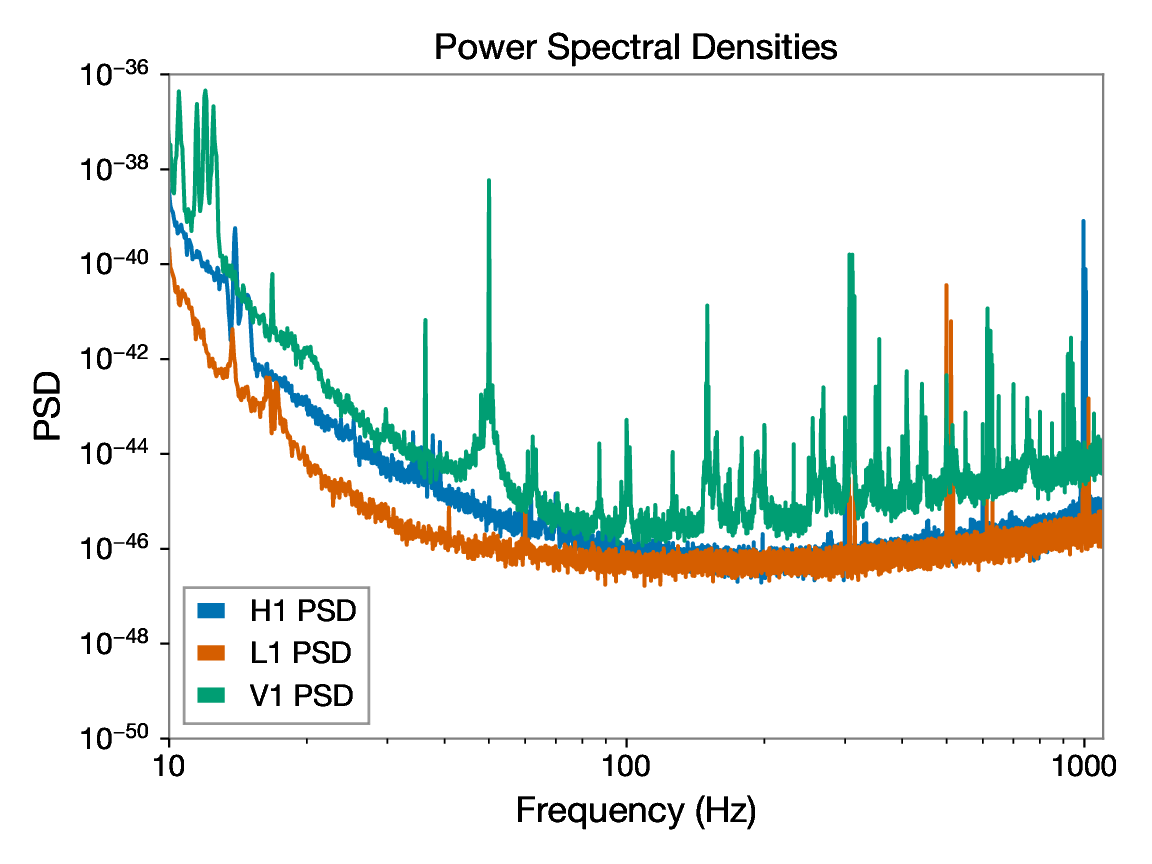

psd_plot.pdf

Power spectral density curves for each interferometer online at the time of the trigger, showing detector noise versus frequency.

PSD plot
Open Download

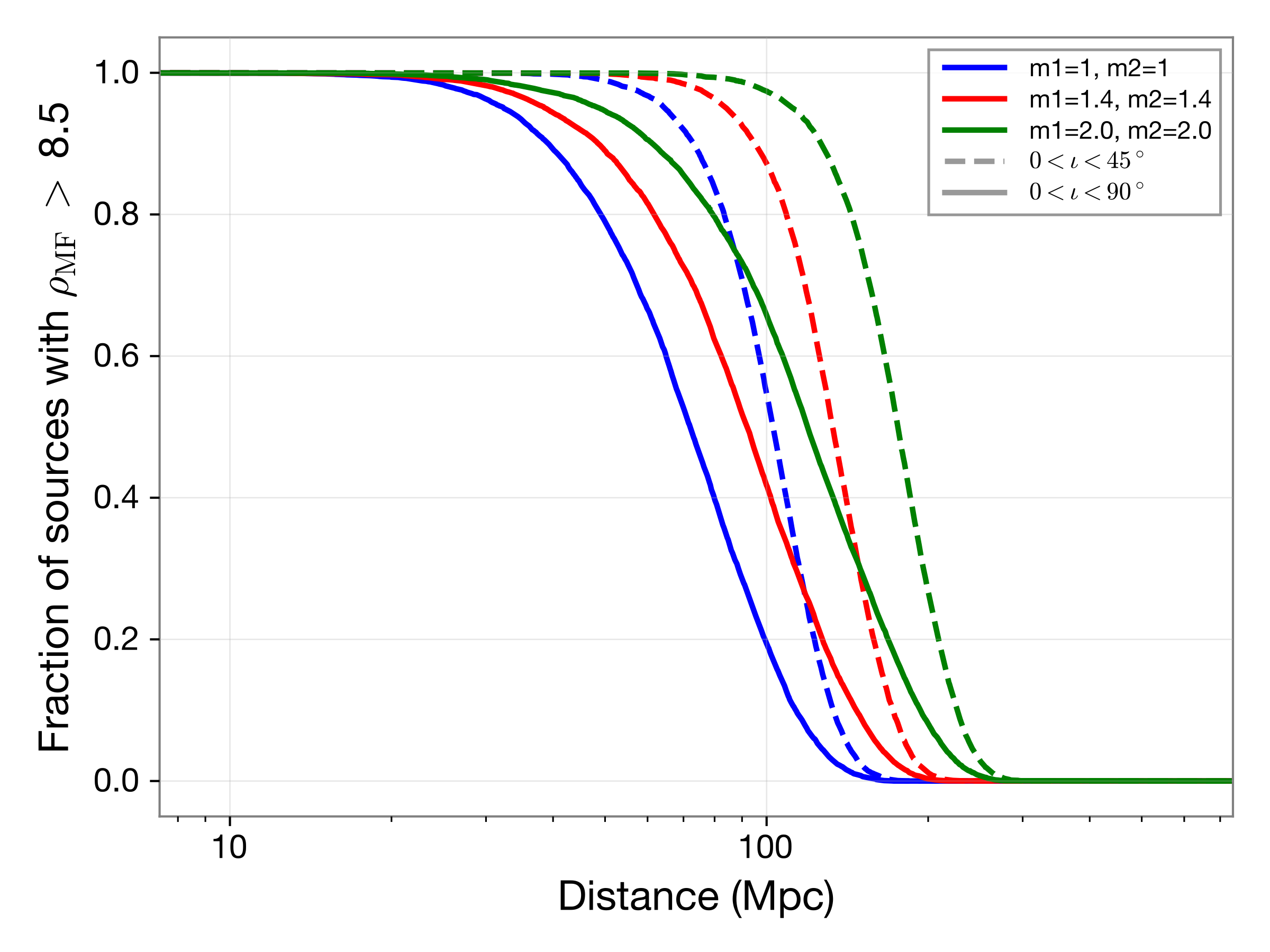

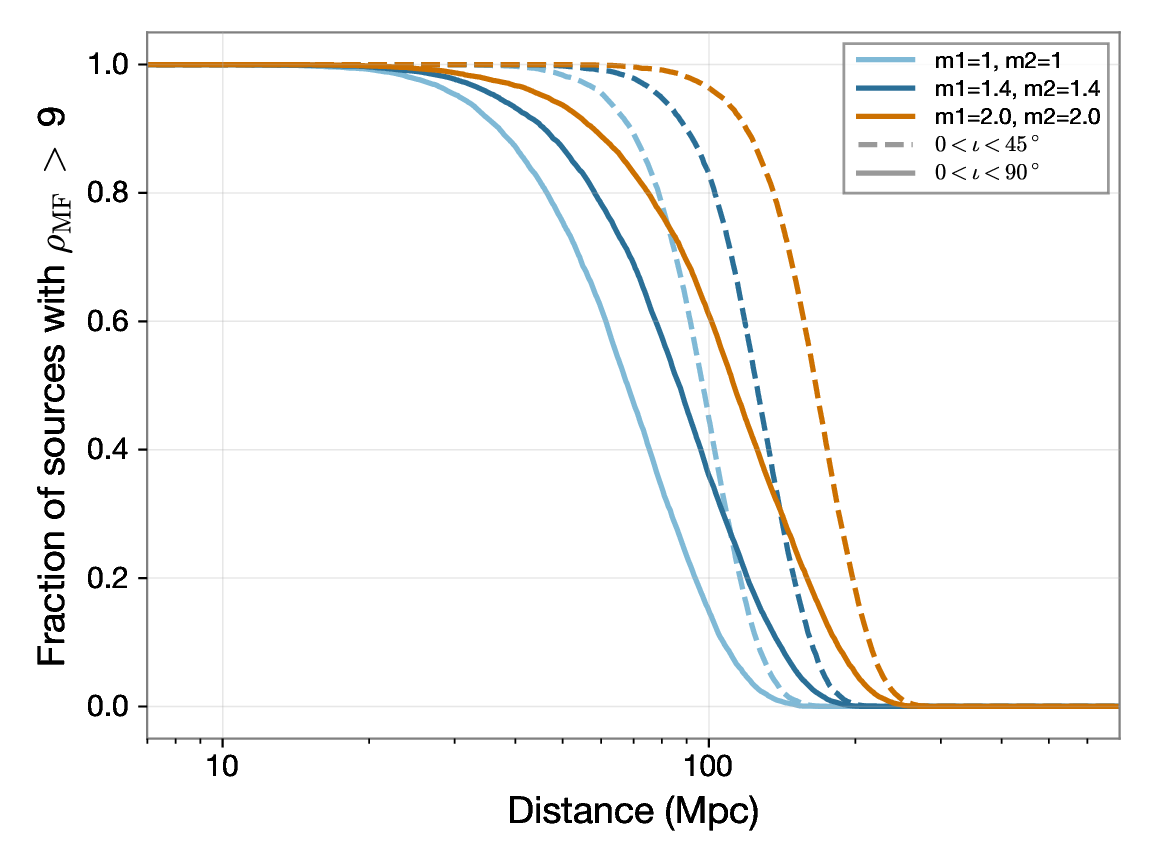

bns_targeted_range.pdf

Detection probability for a BNS system as a function of distance, expressed as fraction of detected events with SNR above the chosen threshold.

BNS targeted range
Open Download

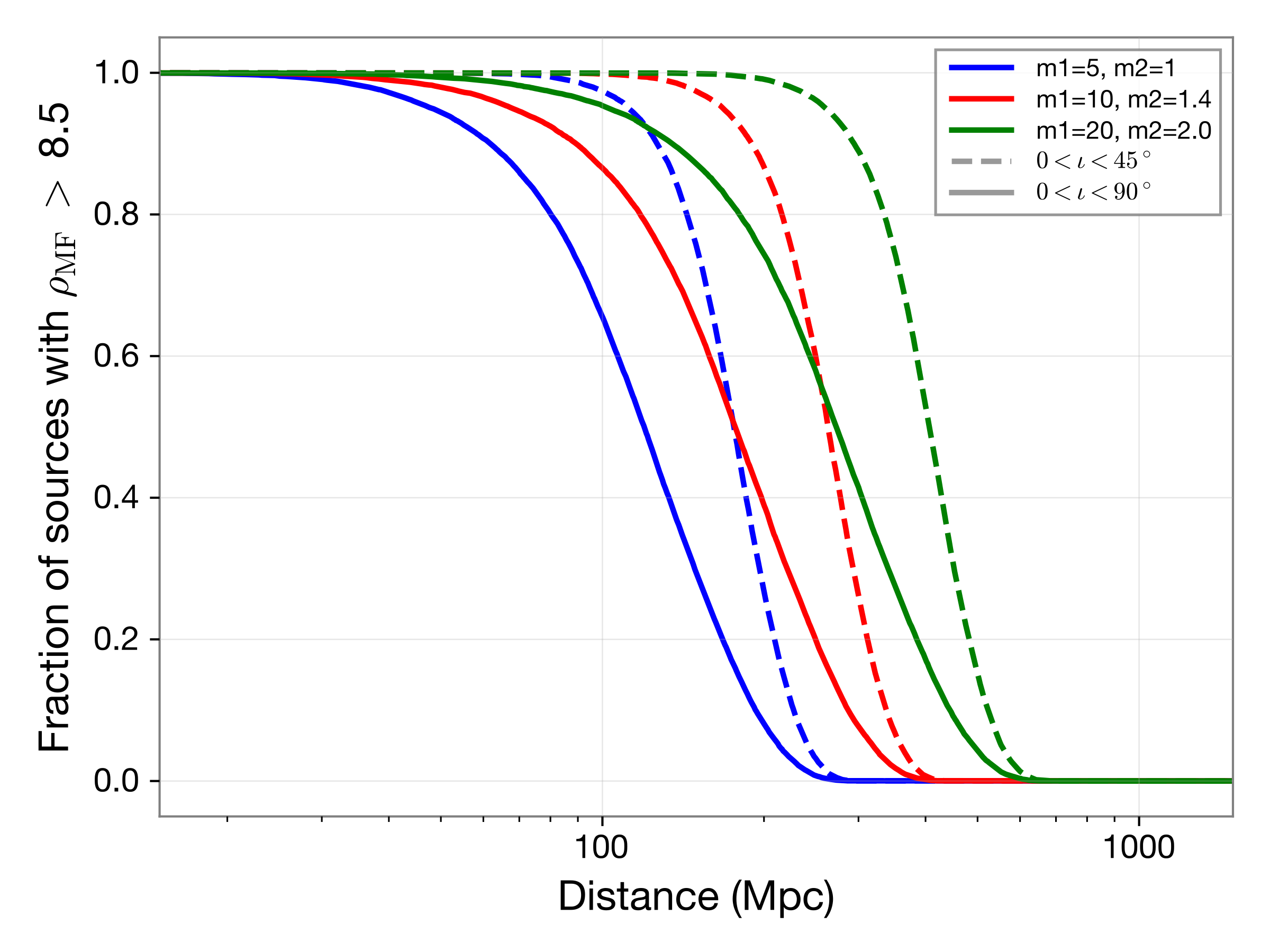

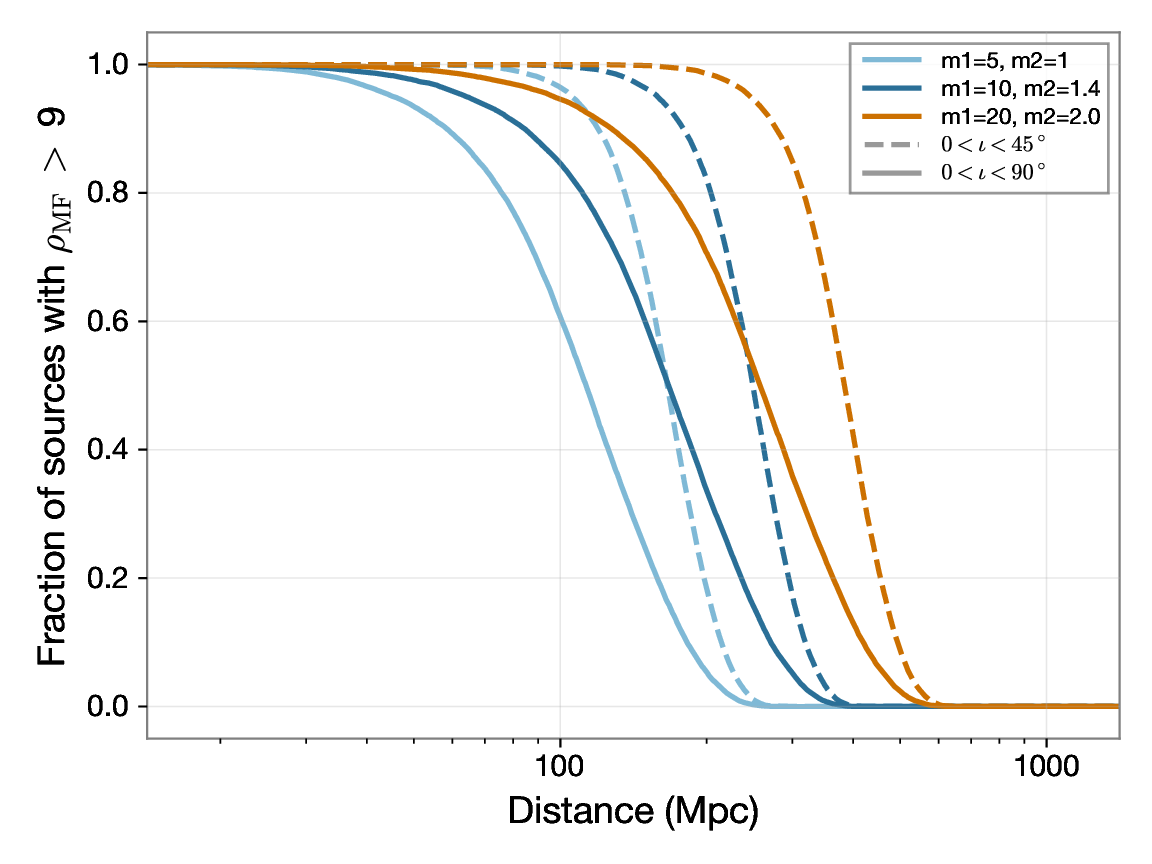

nsbh_targeted_range.pdf

Detection probability for an NSBH system as a function of distance, expressed as fraction of detected events with SNR above the chosen threshold.

NSBH targeted range
Open Download

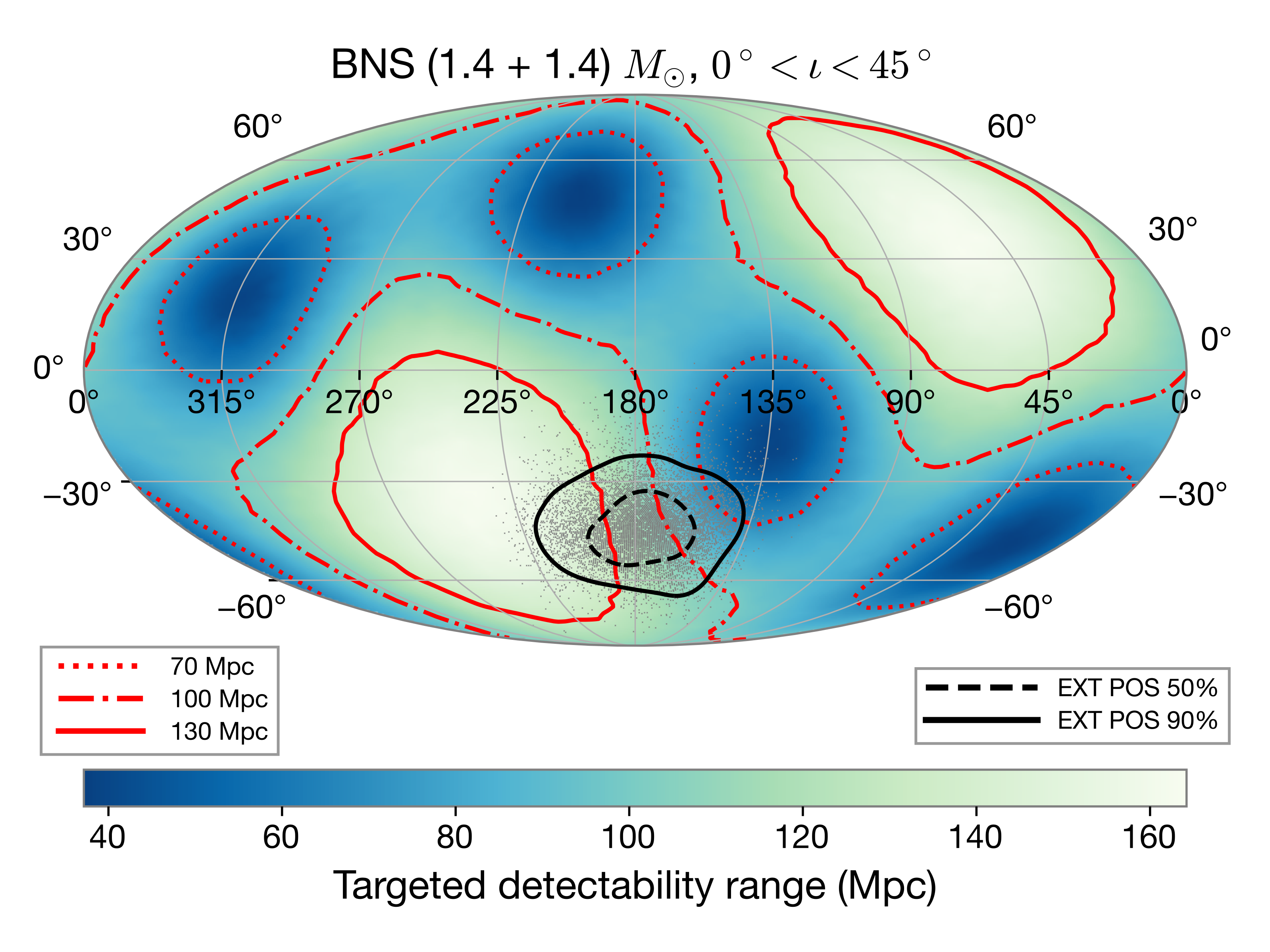

range_map_bns_m1_1.4_m2_1.4.pdf

Sky map of TDR for a 1.4-1.4 M☉ BNS source, assuming an inclination angle between 0 and 45 degrees. The position of the astronomical transient is indicated.

Range map BNS
Open Download

Results tables (default ι ∈ 0° - 45° and 0° - 90°)

BNS Download JSON

Mass Combination D90 0° - 45° (Mpc) D90 0° - 90° (Mpc)
M_1, M_2 = [1.0,1.0] M☉73.239.3
M_1, M_2 = [1.4,1.4] M☉95.048.6
M_1, M_2 = [2.0,2.0] M☉126.361.3

NSBH Download JSON

Mass Combination D90 0° - 45° (Mpc) D90 0° - 90° (Mpc)
M_1, M_2 = [5.0,1.0] M☉126.662.0
M_1, M_2 = [10.0,1.4] M☉190.089.4
M_1, M_2 = [20.0,2.0] M☉294.8135.1

Output structure

<output-dir>/
|-- targ_range.log
|-- ifos_used.txt
|-- ifos_used.json
|-- gwosc_cache/
|-- inj/
|-- results/
|-- h1_psd.txt
|-- l1_psd.txt
|-- v1_psd.txt
|-- psd_plot.pdf
|-- bns_targeted_range.pdf
|-- nsbh_targeted_range.pdf
|-- range_map_bns_m1_1.4_m2_1.4.fits
|-- range_map_bns_m1_1.4_m2_1.4.pdf
|-- results_bns.json
`-- results_nsbh.json
